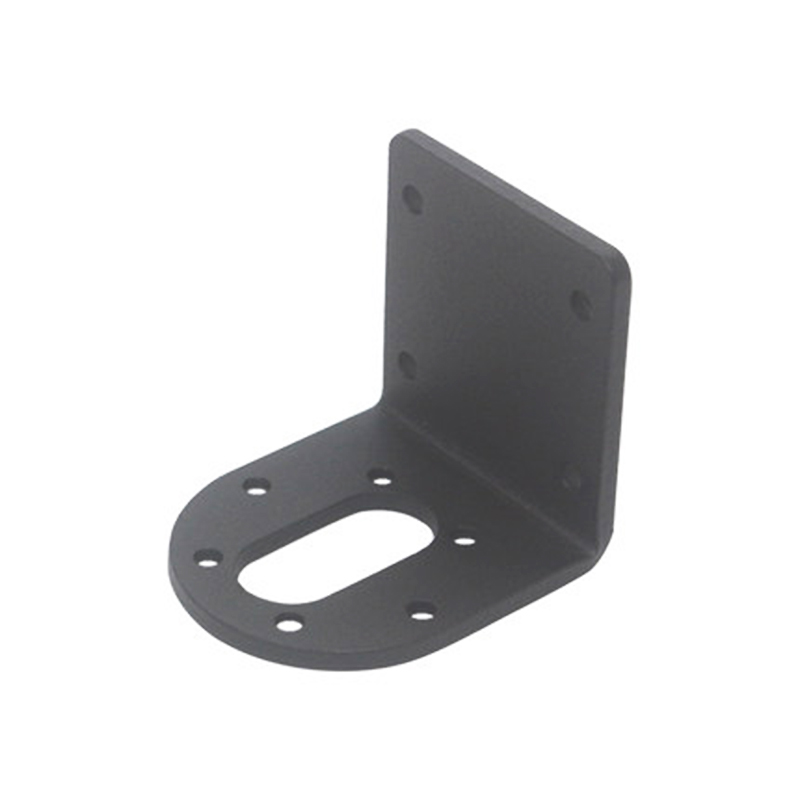

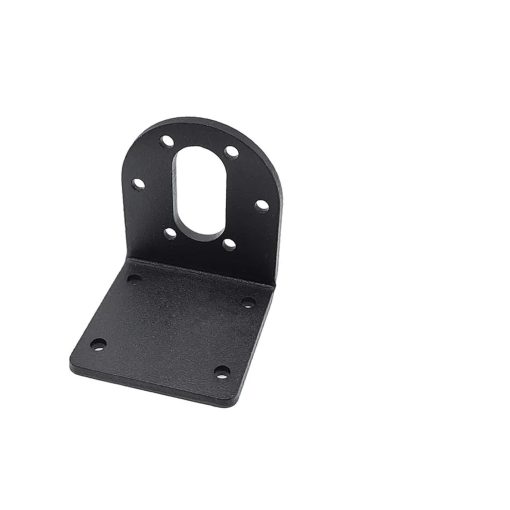

JGB37-520 Gear Motor Bracket
The JGB37-520 Gear Motor Bracket is a precision-engineered mounting accessory designed for securely installing JGB37-520 series gear motors and other compatible 37mm diameter DC geared motors. Manufactured from high-quality metal with a black protective finish, this bracket provides excellent structural rigidity, ensuring stable motor alignment and minimizing vibration during operation.
Features:
- Designed specifically for JGB37-520 and compatible 37mm gear motors.
- Durable metal construction for long service life.
- L-type bracket design provides stable motor support.
- Black protective coating improves corrosion resistance.
- Precision mounting hole pattern for accurate motor alignment.
- Compact and lightweight mechanical design.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | Gear Motor Mounting Bracket |
| Compatible Motor Series | JGB37-520, JGB37 Series |
| Compatible Motor Diameter | 37mm |
| Bracket Style | L-Type |
| Material | Metal |
| Surface Finish | Black Coated |
| Base Dimensions | 40mm × 40mm |
| Bracket Height | 47mm |
| Material Thickness | 1.5mm |
| Base Mounting Hole Diameter | 3.5mm |
| Motor Mounting Hole Diameter | 3.2mm |
| Motor Mounting PCD | 31mm |
| Central Motor Opening Width | 14mm |
| Mounting Method | Screw Mount |
| Color | Black |
Applications:
- Mobile robot platforms.
- Smart robotics projects.
- Arduino-based robotic systems.
- Educational STEM projects.
- Autonomous vehicle prototypes.
- Automation and mechatronics systems.
- CNC and motion control assemblies.
- Conveyor and drive mechanisms.
- Custom machinery development.
- Industrial prototyping applications.
Package Include:
1x JGB37-520 Gear Motor Bracket
