Jinbei MARS-3 TTL Portable Battery-Powered Flash Kit

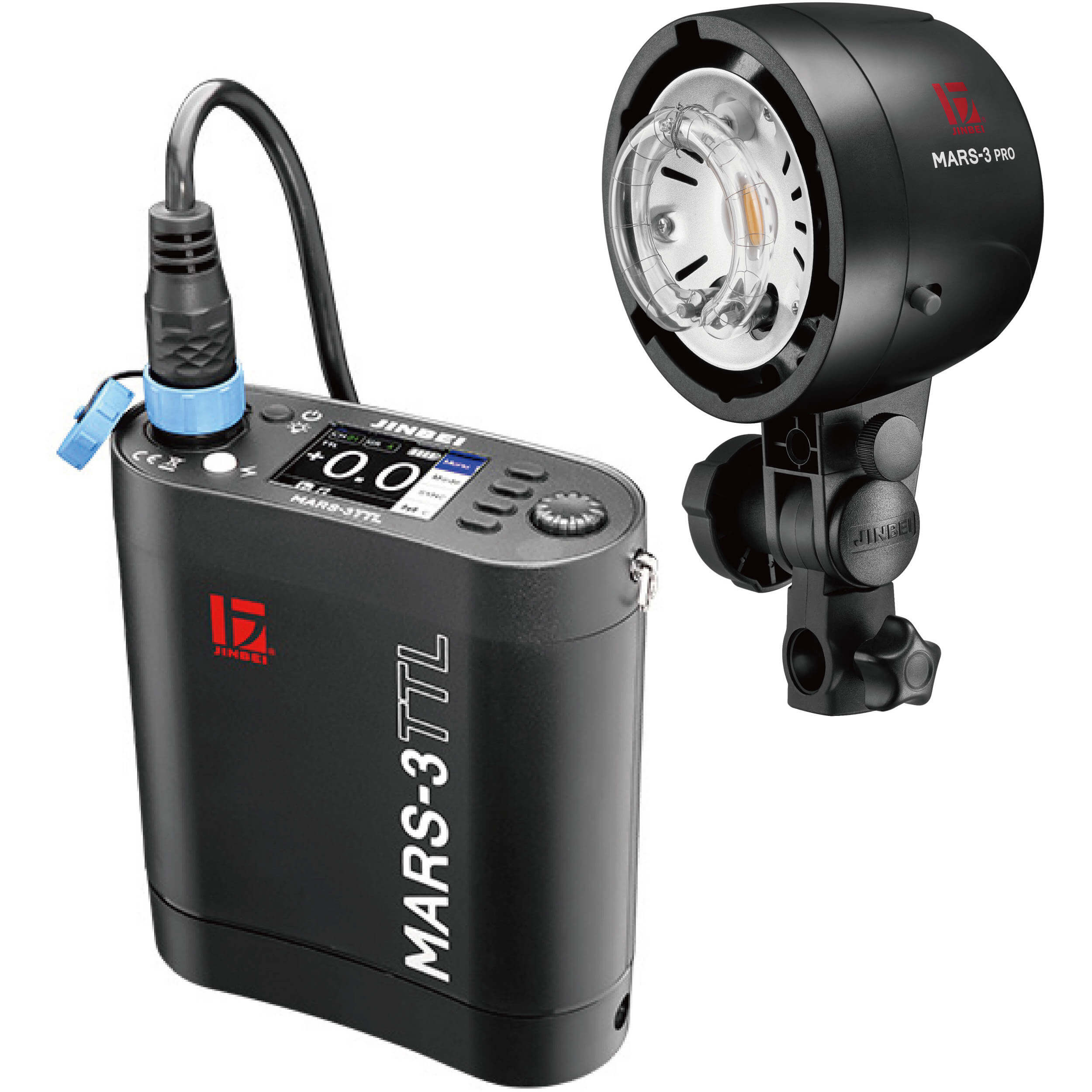

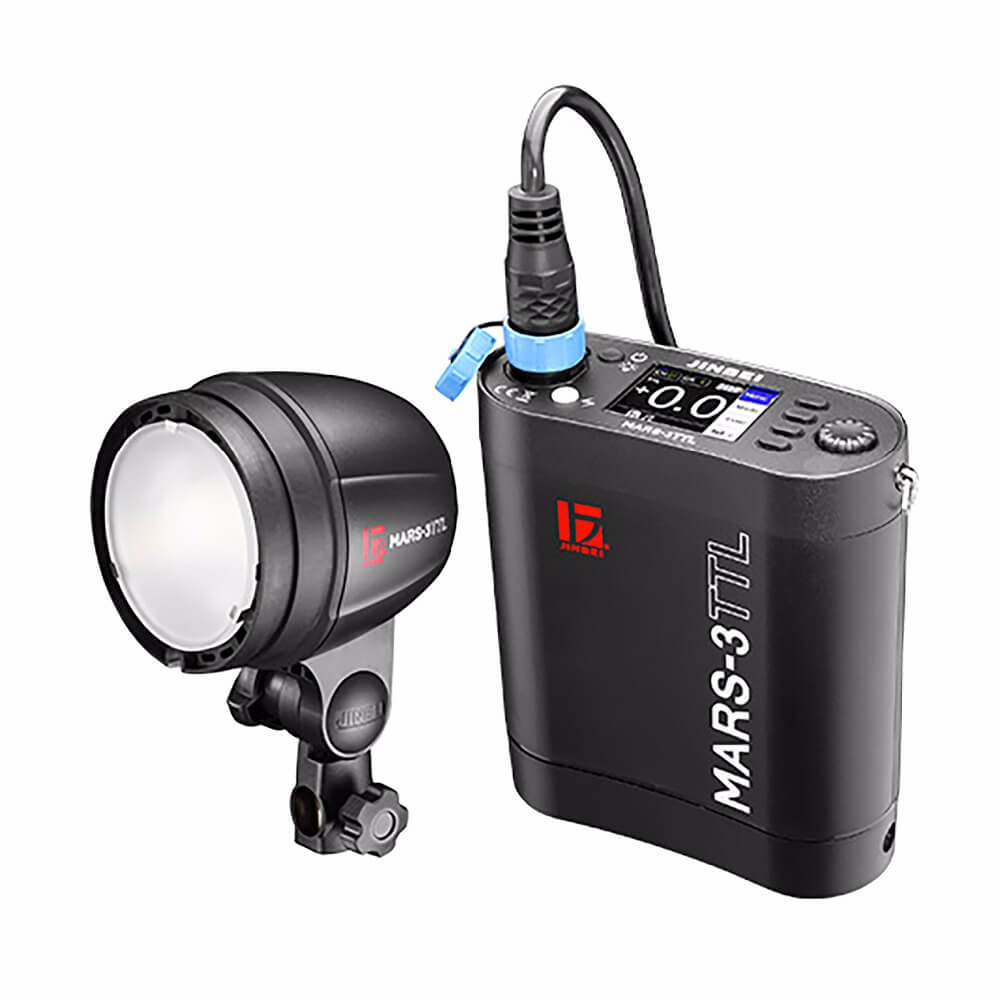

The Jinbei MARS-3 TTL is a portable, battery-powered flash system built around two main components: the MARS-3 TTL power pack and a round flash head. The two units connect via a dedicated locking cable – ensuring a stable, reliable power and signal link between pack and head at all times.

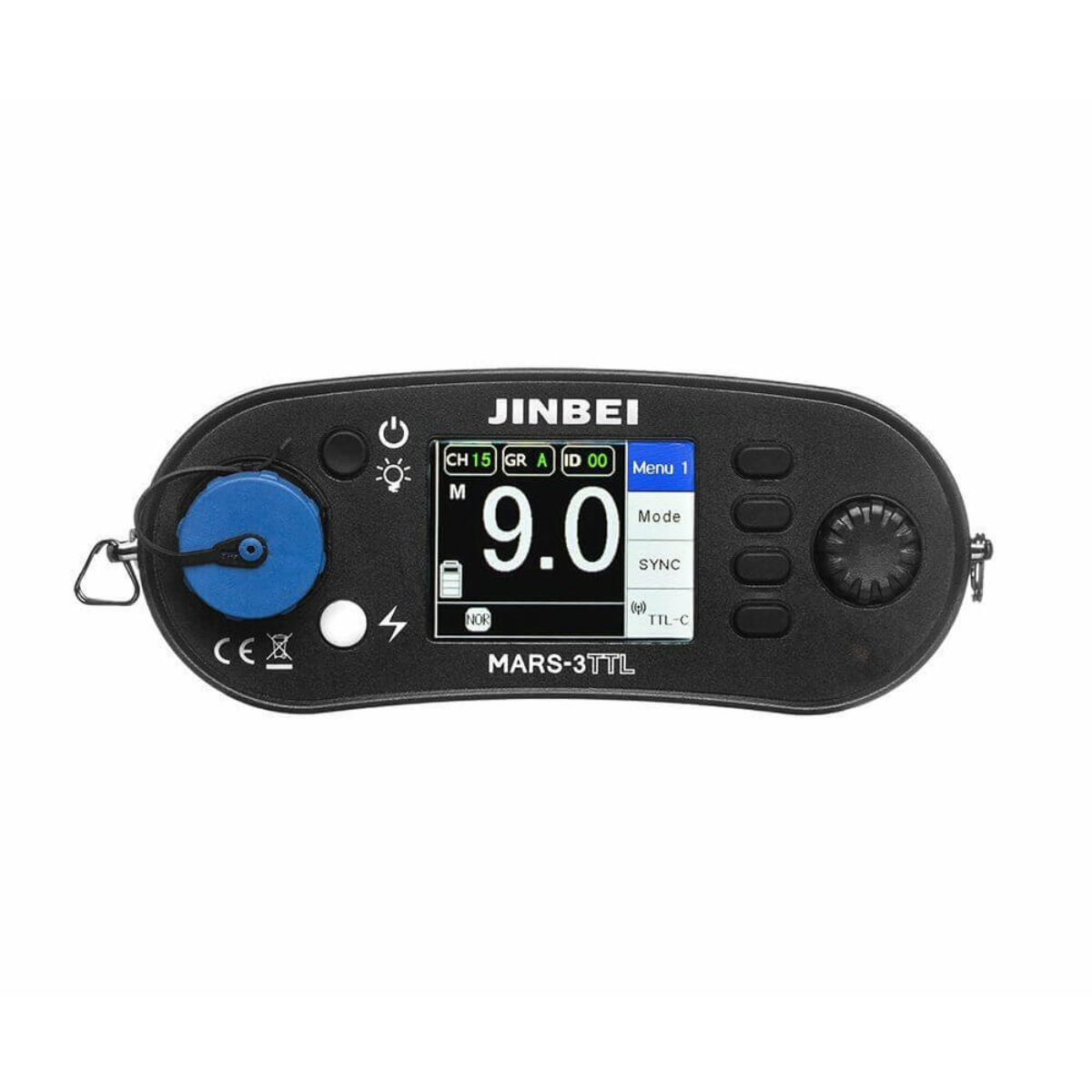

The power pack’s top panel features a clear LCD display showing channel (CH), group (GR), ID, operating mode (M), power level readout, battery status and sync mode (NOR), alongside menu fields for Mode, SYNC and TTL-C. Operation is handled by a rotary control dial, four function buttons, and dedicated power, modeling-light and test buttons. A tethered protective cap covers the cable socket when the head is disconnected.
Features
- TTL flash automation
- High-Speed Sync (HSS)
- Ultra-short flash duration up to 1/19000s
- 2.4GHz wireless radio control with 16 channels, 6 groups (GP 6)
- Wired pack-to-head connection
- LCD control panel
- Easy controls
- Removable 14.8V 2500mAh polymer lithium battery
- Round flash head
- Complete protective kit
- Included AC charger
- CE marked
Specifications
| Brand | Jinbei |
|---|---|
| Model | MARS-3 TTL |
| System Type | Battery-powered pack & head flash system |
| Pack-to-Head Connection | Dedicated locking cable |
| High-Speed Sync (HSS) | Up to 1/8000s |
| Flash Duration | Up to 1/19000s |
| Wireless Radio Control | 2.4GHz |
| Radio Channels | 16 |
| Radio Groups | 6 (GP 6) |
| ID Setting | Yes |

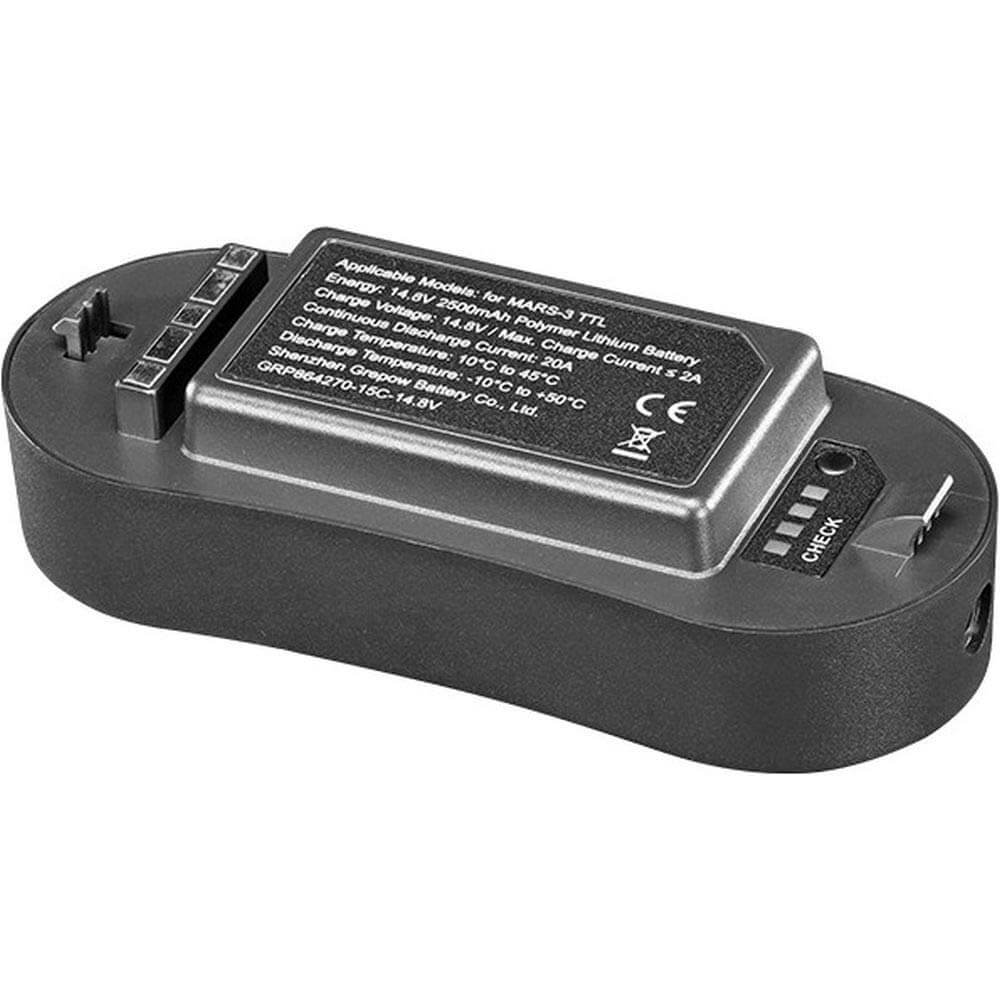

| Battery | Removable 14.8V 2500mAh polymer lithium battery |
| Charge Voltage | 14.8V |
| Max. Charge Current | ≤ 2A |
| Continuous Discharge Current | 20A |
| Charge Temperature | 10°C to 45°C |
| Discharge Temperature | -10°C to +50°C |
| Battery Level Check | 4-step LED indicator with CHECK button |
| Charger | Included (AC charger with power cord) |
| Certification | CE |
Applications
- Outdoor & location portraits
- Wedding & event photography
- Action & motion freezing
- Bright-sunlight fill flash & wide-aperture work
- Multi-light off-camera setups
- Controlled manual lighting

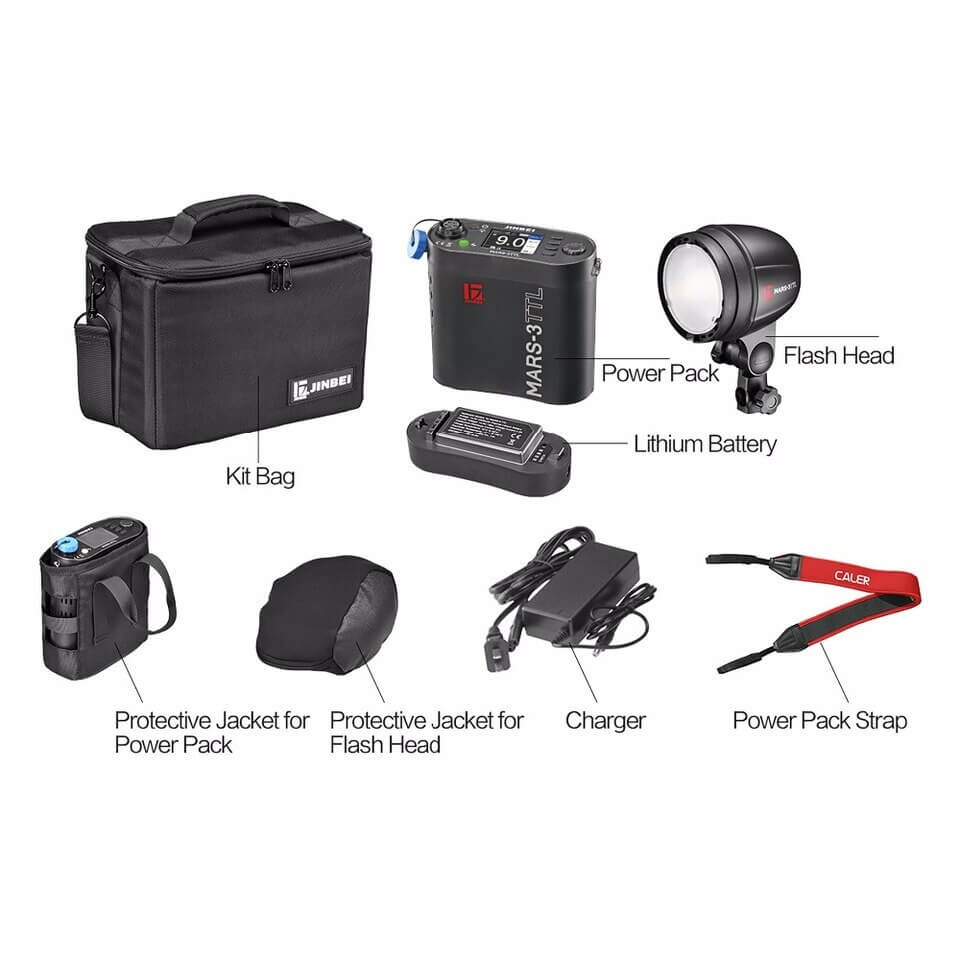

Package Contents
- 1 × Jinbei MARS-3 TTL Power Pack
- 1 × Flash Head
- 1 × Pack-to-Head Connection Cable with locking ring
- 1 × Lithium Battery – 14.8V 2500mAh polymer lithium
- 1 × Charger (AC charger with power cord)
- 1 × Power Pack Strap
- 1 × Protective Jacket for Power Pack
- 1 × Protective Jacket for Flash Head
- 1 × Kit Bag
- 1 x User Manual
