JMX-94F-A-Z Latching Relay 12VDC 80A/220V
The JMX-94F-A-Z Latching Relay 12VDC 80A/220V is a high-current magnet latching relay designed for reliable switching in power control circuits. It uses a 12VDC coil and supports a heavy contact load up to 80A at 220VAC, making it suitable for applications that require strong load handling with stable switching performance. According to the PDF, the JMX-94F series is built with high sensitivity, high reliability, good anti-shock performance, and good anti-vibration performance.
This relay is a Single Coil Latching type, which means it can hold its contact position magnetically after receiving a control pulse. It does not need continuous coil power to remain in the set or reset state, helping reduce power consumption and heat during operation. The relay is pulse operated and designed for pulse control, with an ideal pulse duration of 50ms to 100ms for stable operation. The PDF also notes that latching relay coils should not be pulsed incorrectly, and the pulse width should be sufficient to ensure proper magnetic positioning.
The JMX-94F-A-Z model uses a 1A SPST-NO contact arrangement, with a dust cover enclosure and silver cadmium oxide contact material for heavy-load switching. The relay has an approximate operate time of 60ms and release/reset time of 20ms, allowing controlled switching in electrical power systems, meters, industrial control panels, and energy management circuits. With insulation resistance of 1000MΩ minimum, dielectric strength up to 4000VAC between contact and coil, and an operating temperature range from -25°C to +70°C, it is suitable for demanding control environments.
Features:
- Magnet latching relay design.
- Single Coil Latching operation.
- Pulse control and pulse operated switching.
- 12VDC coil rated voltage.
- Heavy contact load up to 80A.
- Rated load of 80A/220VAC.
- 1A SPST-NO contact arrangement.
- Dust cover enclosure type.
- High sensitivity and high reliability.
- Good anti-shock performance.
- Good anti-vibration performance.
- Low power holding because continuous coil power is not required.
- Approximate operate time of 60ms.
- Approximate release/reset time of 20ms.
- Ideal pulse time from 50ms to 100ms.
- Suitable for high-current AC load control.
Specifications:
| Specification | Value |
|---|---|
| Product Type: | Latching Relay |
| Series: | JMX-94F |
| Model Number: | JMX-94F-A-Z |
| Relay Type: | Magnet Latching Relay |
| Coil Type: | Single Coil Latching |
| Control Type: | Pulse Control / Pulse Operated |
| Contact Arrangement: | 1A SPST-NO |
| Enclosure Type: | Z: Dust Cover |
| Coil Rated Voltage: | 12VDC |
| Coil Resistance: | 144Ω ±10% |
| Switching Voltage for Coil Test: | 6.0VDC to 8.4VDC |
| Ideal Pulse Time: | 50ms to 100ms |
| PDF Pulse Requirement: | ≥60ms |
| Coil Power Consumption: | 1W |
| Operate Time: | ≈60ms |
| Reset / Release Time: | ≈20ms |
| Contact Current: | 80A |
| Rated Load: | 80A/220VAC |
| Contact Rating Resistive: | 80A/250VAC |
| Maximum Switching Power: | 20000VA |
| Maximum Switching Voltage: | 300VAC |
| Maximum Switching Current: | 80A |
| Contact Material: | AgCdO |
| Contact Resistance: | 50mΩ at 1A/24VDC |
| Voltage Drop: | 100mV at rated load |
| Electrical Life: | 10⁴ operations at rated load |
| Mechanical Life: | 10⁶ operations with no load |
| Insulation Resistance: | 1000MΩ minimum at 500VDC |
| Dielectric Strength Between Contacts: | 1500VAC, 50Hz |
| Dielectric Strength Between Contact and Coil: | 4000VAC, 50Hz |
| Creepage Distance: | 8.4mm |
| Shock Resistance: | Functional: 100m/s², Survival: 1000m/s², 11ms |
| Vibration Resistance: | 10Hz to 55Hz, double amplitude 1.5mm |
| Terminal Strength: | 5N |
| Solderability: | 235°C ±2°C for 3s ±0.5s |
| Ambient Temperature: | -25°C to +70°C |
| Relative Humidity: | 85% at 40°C |

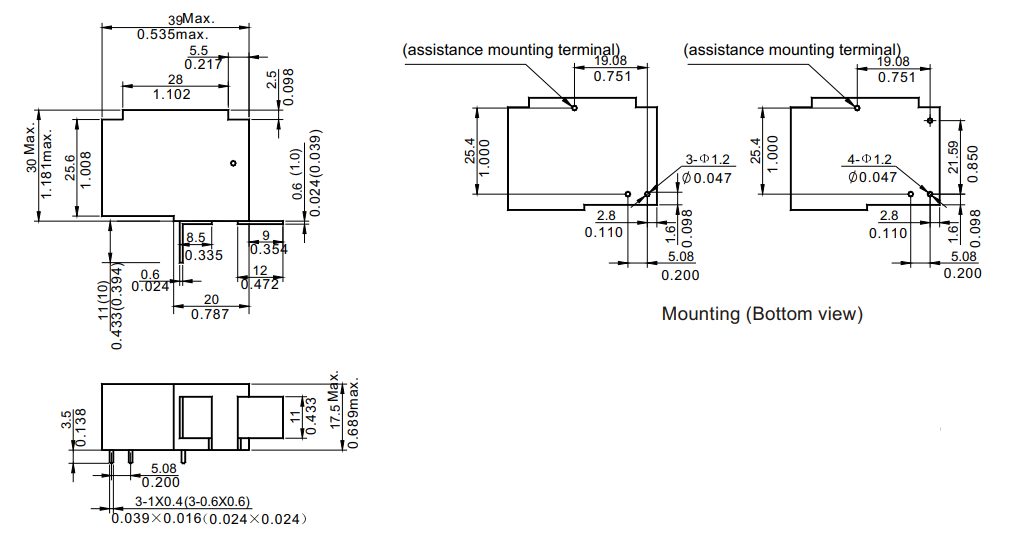

| Dimensions: | 39mm × 30mm × 17.5mm |
| Mass: | 33g |
| Safety Approval: | CQC |
| Important Note: | Set and reset coils should not be pulsed simultaneously. |
Wiring diagram:
Applications:
- Energy Meter Control.
- Power Distribution Systems.
- Industrial Control Panels.
- High-Current Load Switching.
- Smart Metering Systems.
- Remote Power Control.
- AC Load Control Circuits.
- Automation Equipment.
- Electrical Protection Systems.
- Battery and Inverter Control Circuits.
Package Include:
- 1x JMX-94F-A-Z Latching Relay 12VDC 80A/220V
