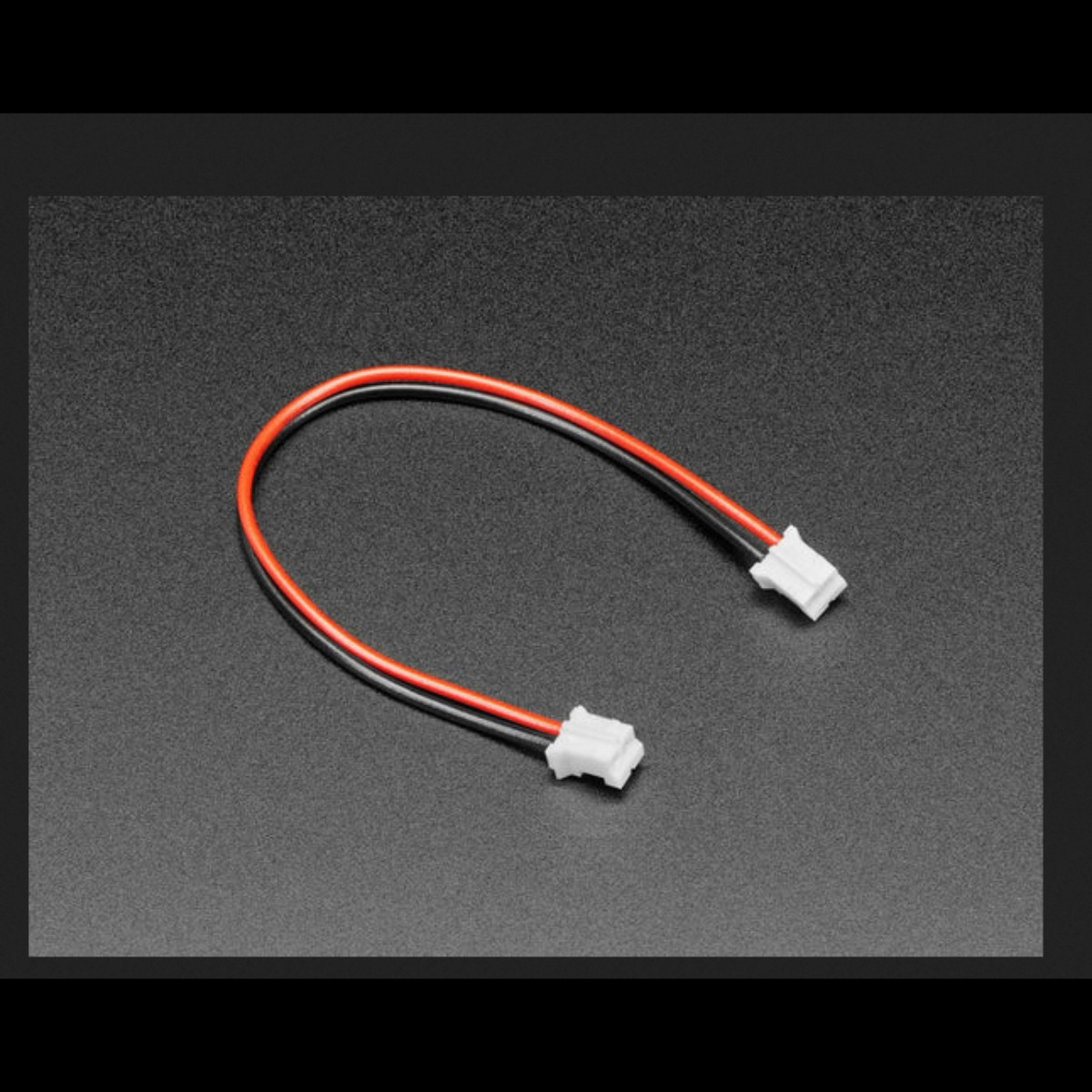

JST-PH Female To Female Data Cable 2 Pin 2mm 30cm 26AWG Wire
JST-PH 2-pin female-to-female cable, 2mm pitch, 30cm long, 26AWG red/black wire. Compact design for tight spaces, no soldering needed.
5.00 EGP
In stockSKU 3496300158713
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
JST-PH Female To Female Data Cable 2 Pin 2mm 30cm 26AWG Wire
This JST-PH Female-to-Female Data Cable is a pre-terminated 2-pin connection cable designed for compact, space-sensitive electronic applications. The cable features two 2-pin female JST-PH connectors (one at each end) linked by a 30cm length of 26AWG dual-conductor wire. The JST PH series features a compact 2.0mm pitch in a slim, low-profile housing — making it ideal for tight spaces.
Features
- JST PH compatible connectors.
- Compact, low-profile design.
- 26AWG wire.
- 30cm cable length.
Specifications
| Connector Series | JST-PH |
| Pitch (Pin Spacing) | 2.0mm |
| Max Current Rating | 2A (per pin) |
| Voltage Rating | 100V |
| Cable Wire Gauge | 26AWG |
| Cable Length | 30cm (300mm) |
| Number of Conductors | 2 |
| Wire Colors | Red & Black |
Applications
- Compact consumer circuit boards.
- Stepper motor cables.
- Camera modules & small sensors.
- 3D printer components.
- Signal connections between modules and microcontroller boards.
- Prototyping & DIY electronics.
Package Content
- 1x JST-PH Female To Female Data Cable 2 Pin 2mm 30cm 26AWG Wire
