JST XH Data Terminal Male 3 Pin Connector Header 2mm
The JST XH Data Terminal Male 3 Pin Connector Header 2mm is a compact wire-to-board connector commonly used in electronic assemblies requiring secure and reliable connections between cables and printed circuit boards. Its vertical mounting design allows efficient PCB space utilization while providing easy access for cable installation and removal.
Features:
- 3-pin male connector header.
- 2mm pin pitch design.
- Through-hole PCB mounting.
- Vertical connector orientation.
- Durable insulated housing.
- Compact and lightweight construction.
- Reliable electrical connection.
- Suitable for signal and power applications.
- Secure wire-to-board interface.
- Easy PCB soldering installation.

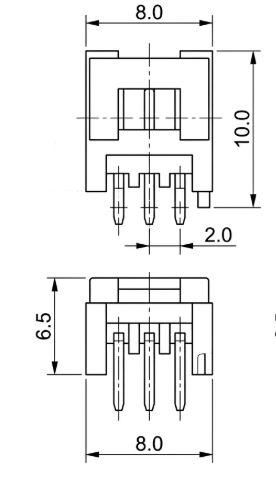

Specifications:
| Parameter | Value |
|---|---|
| Connector Type | Male Header Connector |
| Series | JST XH Style |
| Number of Pins | 3 |
| Pitch | 2mm |
| Mounting Type | Through Hole |
| Orientation | Vertical |
| Contact Type | Male Pin |
| Body Length | 8mm Approx |
| Body Height | 10mm Approx |
| Housing Material | Insulated Plastic |
| Housing Color | White |
| Application Type | Wire-to-Board Connection |
Applications:
- Arduino projects.
- Robotics systems.
- Sensor module connections.
- Battery pack connections.
- Development boards.
- Control circuits.
- Embedded systems.
- Signal transmission interfaces.
- Power distribution connections.
- DIY electronic projects.
- Industrial control equipment.
- PCB interconnection applications.
Package Include:
1x JST XH Data Terminal Male 3 Pin Connector Header 2mm
