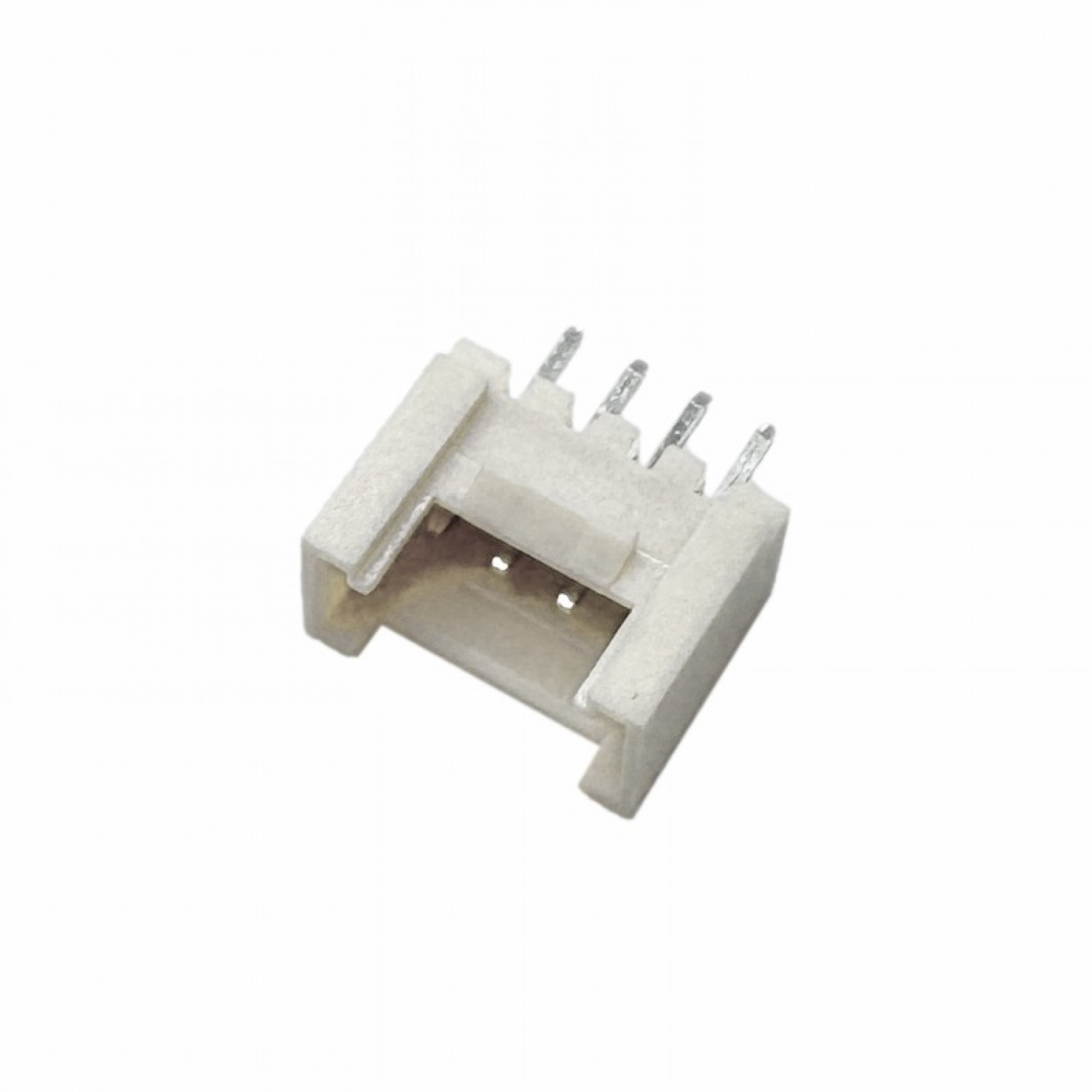

JST XH Data Terminal Male 4 Pin Connector Header 2mm
The JST XH Data Terminal Male 4 Pin Connector Header 2mm is a vertical through-hole connector commonly used for connecting wires to printed circuit boards in electronic devices and DIY projects. Its compact design and durable construction make it suitable for signal transmission, low-voltage power distribution, and data communication applications.
Features:
- 4-pin male header connector.
- 2mm pin pitch spacing.
- Through-hole PCB mounting.
- Vertical connector orientation.
- Compact form factor.
- Durable insulated housing.
- Reliable electrical connection.
- Suitable for signal and power transmission.
- Easy PCB installation.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | Male Header Connector |
| Series | JST XH Style |
| Number of Pins | 4 |
| Pitch | 2mm |
| Mounting Type | Through Hole |
| Orientation | Vertical |
| Contact Type | Male Pin |

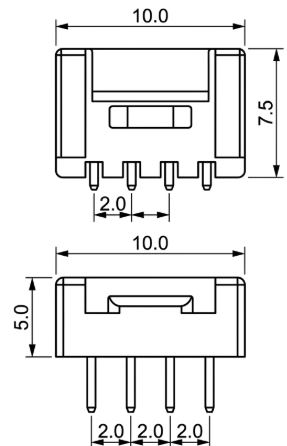

| Body Length | 10mm Approx |
| Body Width | 7.5mm Approx |
| Body Height | 5mm Approx |
| Housing Material | Insulated Plastic |
| Housing Color | White |
| Application Type | Wire-to-Board Connection |
Applications:
- Arduino projects.
- Robotics systems.
- Sensor module interfaces.
- Development boards.
- Embedded electronics.
- Battery pack connections.
- Communication modules.
- Control systems.
- Signal transmission circuits.
- Power distribution connections.
- Industrial electronics.
- DIY electronic projects.
Package Include:
1x JST XH Data Terminal Male 4 Pin Connector Header 2mm.
