JSY-1003F Single Phase Mutual Inductance Electric Energy Metering Module 50A
JSY-1003F Energy Meter Module Single-phase AC meter (50A) with 3.3V TTL interface and Modbus-RTU for high-precision power monitoring applications.
850.00 EGP
Buy NowJSY-1003F Single Phase Mutual Inductance Electric Energy Metering Module 50A
JSY1003F single-phase power metering module has the characteristics of small size, low cost, high precision, stable performance and so on. It can be widely used in energy-saving transformation, new energy charging piles, photovoltaic energy storage electricity monitoring, communication, railway, transportation, environmental protection, petrochemical, steel and other industries, to monitor the current and power consumption of AC equipment.
Features:
- Single-phase AC energy metering module.
- 50A current measurement range.
- Measures voltage, current, power, power factor, frequency, and energy.
- Dedicated metering IC with 24-bit AD sampling.
- 3.3V TTL serial communication interface.
- Standard Modbus RTU communication protocol.
- Electrical isolation between measurement and power supply circuits.
Specifications:
| Parameter | Value |
|---|---|
| Model | JSY-1003F |
| Product Type | Single Phase Energy Metering Module |
| Load Type | Single Phase AC |
| Voltage Range | 100VAC/220VAC/380VAC(Optional) |
| Current Range | 0-50A |
| Current Sensor Type | Mutual Inductance Current Transformer |
| Measurement Parameters | Voltage, Current, Power, Power Factor, Frequency, Energy |
| Voltage Accuracy | ±1.0% |
| Current Accuracy | ±1.0% |
| Energy Accuracy | Class1 |
| Signal Processing | Dedicated Metering IC with 24-bit AD |
| Communication Interface | 3.3V TTL UART |
| Communication Protocol | Modbus RTU |
| Supported Data Format | N,8,1 / E,8,1 / O,8,1 / N,8,2 |
| Baud Rate | 1200bps~9600bps |
| Default Baud Rate | 9600bps |
| Power Supply | 3.3VDC |
| Power Consumption | 8mA~10mA |
| Isolation Voltage | 4000VAC |
| Overload Capability | 1.2×Rated Continuous |
| Operating Temperature | -20°C~+60°C |
| Storage Temperature | -40°C~+85°C |
| Relative Humidity | 5%~95%RH |
| Installation Method | PCB Mount |

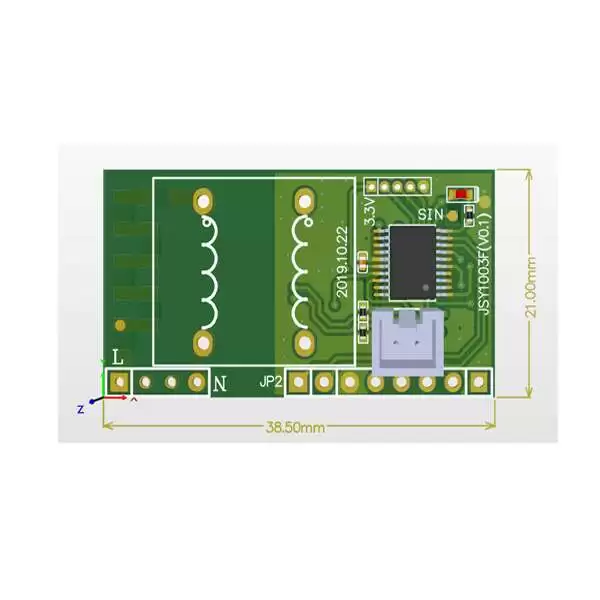

| Module Size | 38.5mm×21mm×15mm |

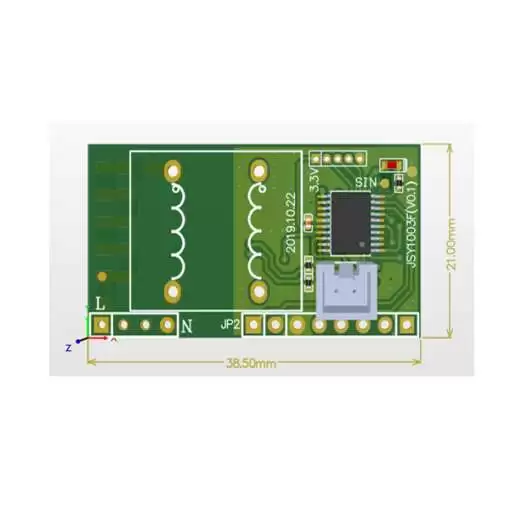

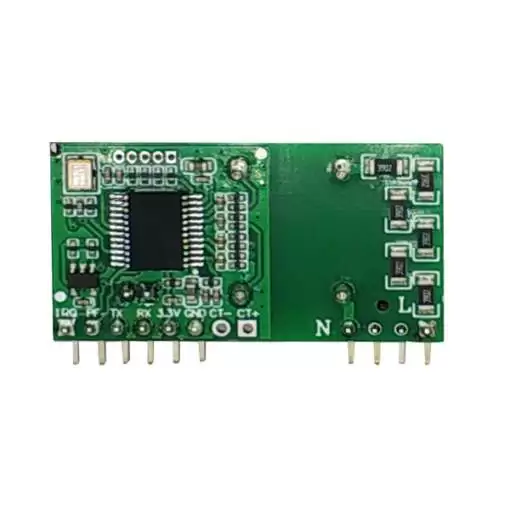

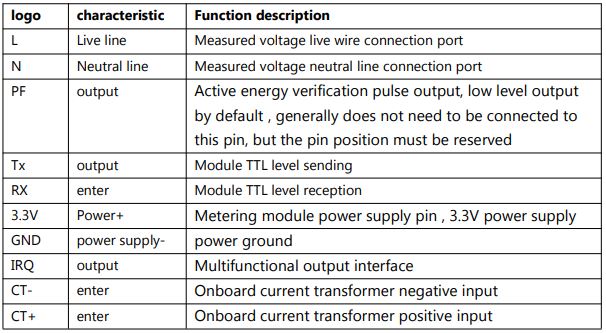

Pin Configuration:
Applications:
- Smart energy monitoring systems.
- EV charging stations.
- Photovoltaic power systems.
- Energy storage systems.
- Industrial automation equipment.
- Smart home energy management.
- Power consumption monitoring.
- Railway and transportation equipment.
- Communication equipment.
- Industrial control systems.
Package Include:
- 1x JSY-1003F Single Phase Mutual Inductance Electric Energy Metering Module 50A

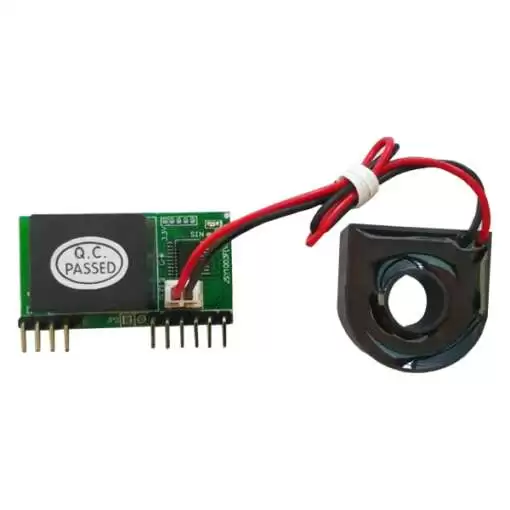

- 1x Current transformer
