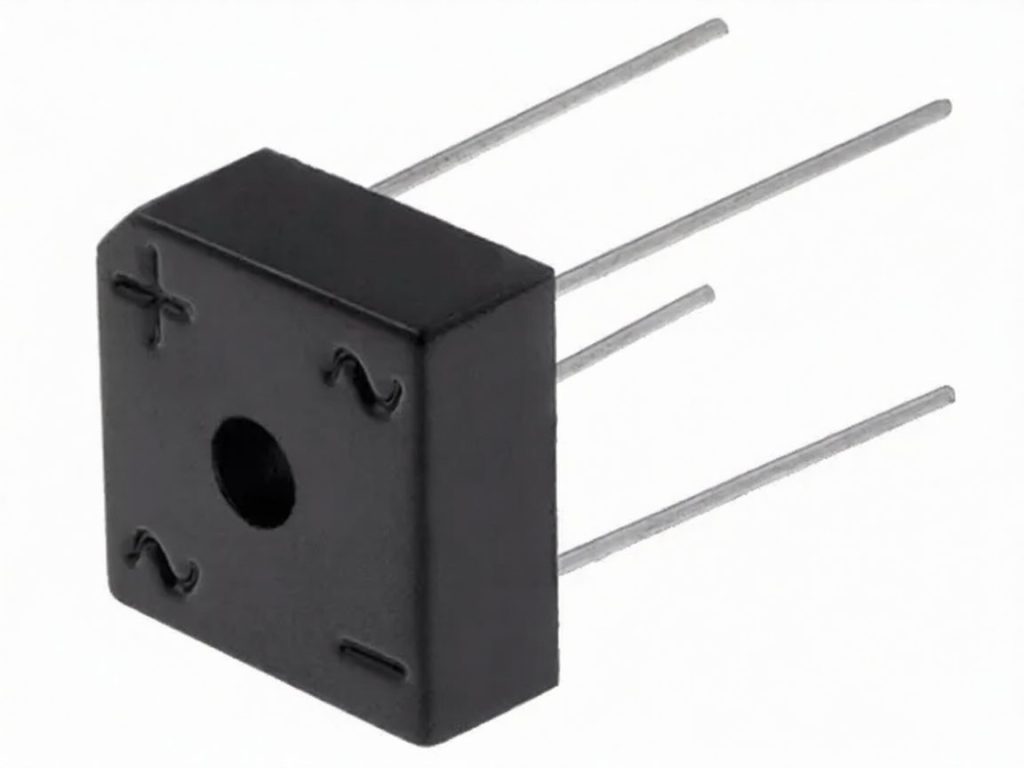

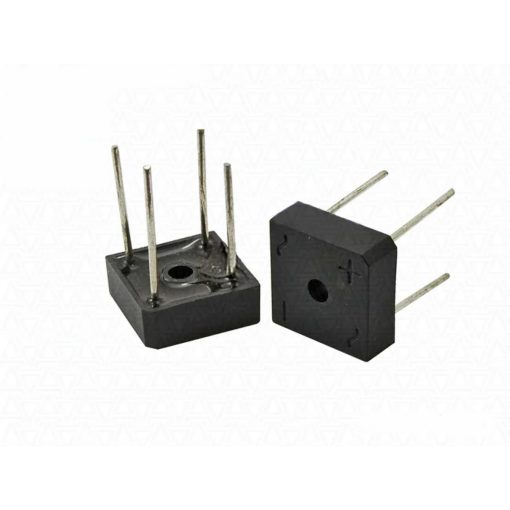

KBPC808 Bridge Rectifier 800V 8A
The KBPC808 Bridge Rectifier is a high-current single-phase rectifier module designed for efficient AC to DC conversion in electronic and electrical applications. It integrates four rectifier diodes in a compact bridge configuration, making it suitable for power supplies, battery chargers, motor drives, LED power systems, and industrial control equipment. Its robust construction allows reliable operation in demanding environments with stable performance under continuous load conditions.
With an 800V peak reverse voltage rating and 8A average forward current capability, the KBPC808 is ideal for medium to high-power rectification tasks. The device features clearly marked AC and DC terminals for simple installation and supports both PCB and chassis mounting. Its durable package and high surge current capability make it widely used in commercial, industrial, and DIY electronic projects.
Features:
- Single-phase full bridge rectifier.
- High current handling capability.
- Compact and durable package design.
- Suitable for PCB and chassis mounting.
- High surge current capacity.
- Reliable AC to DC conversion.
- Clearly marked polarity terminals.
- Stable thermal performance.
- Designed for industrial and consumer applications.
- Easy integration into power circuits.
Specifications:
| Parameter | Value |
|---|---|
| Product Name | KBPC808 Bridge Rectifier |
| Rectifier Type | Single Phase Bridge Rectifier |
| Maximum Repetitive Reverse Voltage | 800V |
| Maximum DC Output Current | 8A |
| Peak Surge Current | 125A |
| Peak Forward Voltage | 1.0V per diode |
| Reverse Leakage Current | 10µA |
| Operating Temperature Range | -55°C to +150°C |

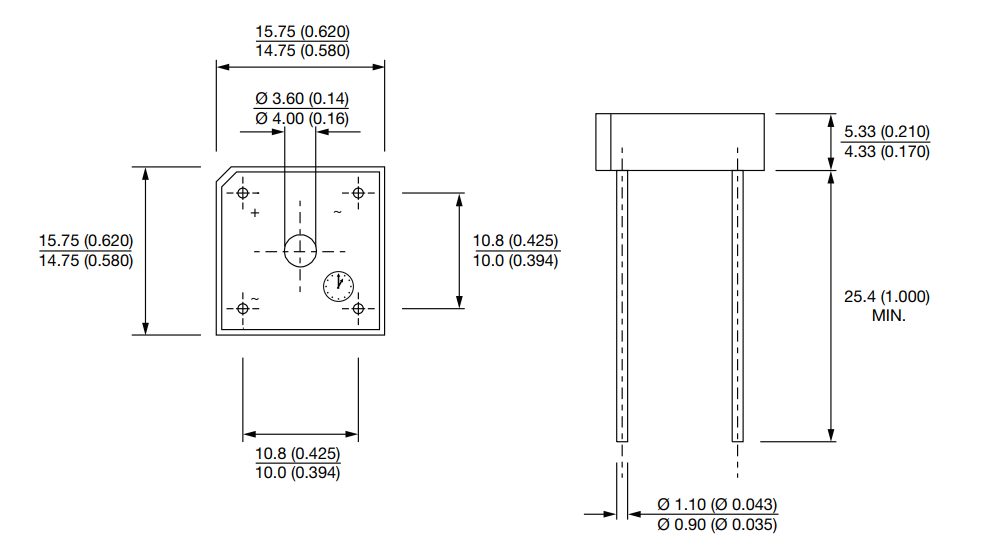

| Package Type | KBPC / D-72 |
| Mounting Type | PCB / Chassis Mount |
| Approximate Weight | 6g |
| Mounting Type | Through Hole / Chassis Mount |
| Package Type | D-72 |
| Frequency Range | 400Hz – 1000Hz |
Pinout:
| Pin Symbol | Description |
|---|---|
| + | Positive DC Output |
| – | Negative DC Output |
| ~ | AC Input Terminal |
| ~ | AC Input Terminal |
Applications:
- AC to DC power supplies.
- Battery charging circuits.
- LED driver circuits.
- Motor control systems.
- Industrial automation equipment.
- Switching power supplies.
- Inverters and converters.
- DIY electronics projects.
- Home appliances.
- Welding and power equipment.
Package Included:
- 1x KBPC808 Bridge Rectifier 800V 8A D-72.
