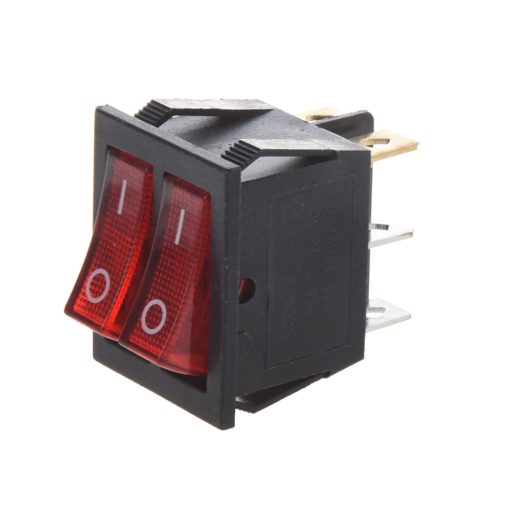

KCD8-212N Dual SPST ON/OFF Switch 16A/250V 20A/125 VAC 6Pin
The KCD8-212N Dual SPST ON/OFF Switch is designed for high-power switching applications, offering reliable performance in various electrical systems. With its compact design, this switch is engineered for easy installation and durability, making it a versatile choice for controlling the flow of electricity. The switch is ideally suited for devices and appliances requiring frequent on/off operations.
The KCD8-212N features dual Single-Pole Single-Throw (SPST) functionality, allowing it to control two independent circuits at the same time. This makes it a suitable option for multi-functional equipment. The ON/OFF action is clearly defined, ensuring users can easily operate it without ambiguity. Its construction is designed to withstand up to 16A/250V and 20A/125 VAC, which is vital for heavy-duty operations.
Engineered for efficiency and longevity, the KCD8-212N is made of high-quality materials that are resistant to wear and tear. The switch is built to operate with precision and reliability over extended periods, even in demanding environments. Its user-friendly design and robust functionality make it a preferred choice for both industrial and consumer-grade applications.
Features:
- Dual SPST (Single Pole Single Throw) design for independent circuit control.
- Durable construction designed to handle high-power electrical applications.
- ON/OFF action for clear user operation.
- High current capacity: 16A/250V and 20A/125 VAC.
- Compact size for easy installation.
- Long-lasting and reliable performance.
- Versatile for various electrical devices and appliances.
- Built to meet safety and performance standards.
Specifications:
| Specification | Value |
|---|---|
| Type: | Dual SPST ON/OFF |
| Voltage Rating: | 16A/250V, 20A/125 VAC |
| Contact Configuration: | 6-Pin |
| Action: | ON/OFF |
| Mounting Type: | Panel Mount |
| Operating Temperature: | -25°C to +85°C |
| Housing Material: | Plastic |
Mechanical Drawing :
Wiring Diagram:
Applications:
- Household Electrical Devices.
- Industrial Machinery Control.
- Automotive Electrical Systems.
- Power Supply Units.
- Home Appliances.
- DIY Electrical Projects.
Package Contents:
- 1x KCD8-212N Dual SPST ON/OFF Switch 16A/250V 20A/125 VAC 6Pin
