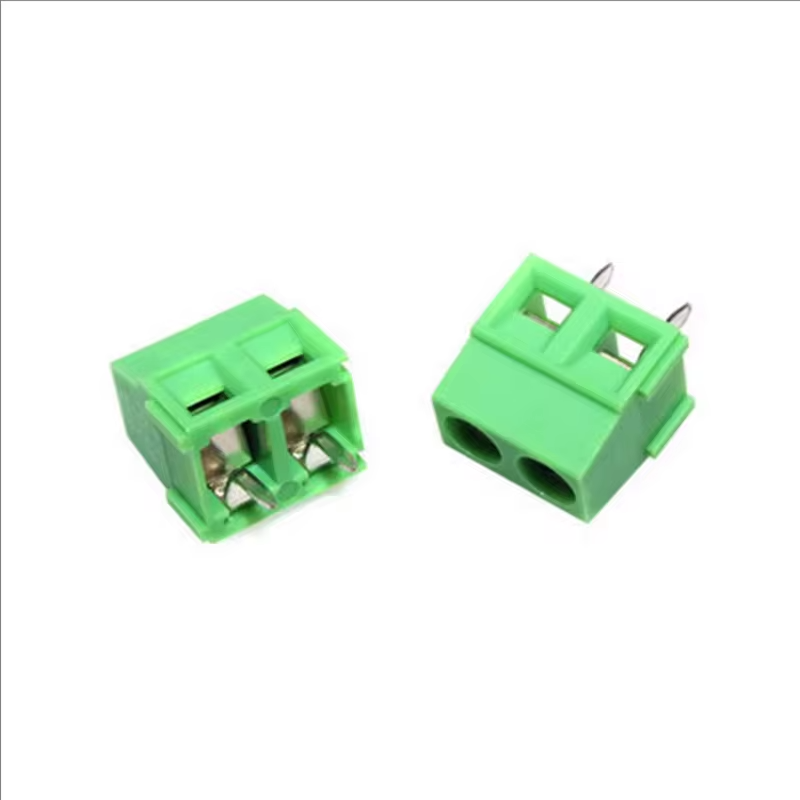

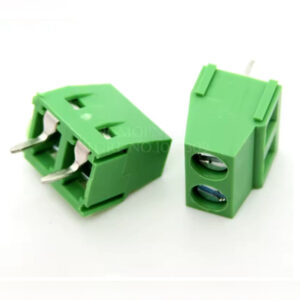

KF127-5.0-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch
The KF127-5.0-2P Green Terminal Block is a high-quality electrical connector designed for secure and efficient wire-to-board connections in a variety of electronic and electrical applications. This 2-pin terminal block features a 5.0mm pitch between pins, allowing for compact installation without compromising connection stability. Rated for 300V and 10A, it is suitable for low- to medium-power circuits, ensuring reliable performance in both industrial and consumer electronics. The green housing is made from durable, flame-retardant plastic for enhanced safety and visibility during installation. With screw-type terminals, it supports easy and repeatable wiring, accommodating solid and stranded wires. The KF127-5.0-2P is ideal for use in power supplies, control panels, automation systems, and LED drivers where dependable electrical connections are essential.
Features:
- 2-Pin Design where Ideal for simple and compact wire connections.
- 5.0mm Pitch where Standard spacing for compatibility with a wide range of PCB layouts.
- Screw-Type Terminals where Provides strong and secure wire clamping; easy to wire and rewire.
- Rated for 300V / 10A where Suitable for low- to medium-voltage and current applications.
- Durable Green Housing where Made from flame-retardant thermoplastic for safety and easy identification.
- PCB Mounting where Straight pin layout for through-hole PCB soldering.
- Compact and Modular where Can be used individually or combined with other blocks for multi-pin configurations.
Specifications:
| Specification | Details |
|---|---|
| Terminal Block Type | Screw Type |
| Model | KF127-5.0-2P |
| Mounting Type | Through-Hole / PCB Mount |
| Mounting Style | Straight |
| Wire Connection | Screw Clamp |
| Wire Entry Angle | 180° |
| Housing Material | PA66, UL94V-0 rated (flame-retardant) |
| Clamp Material | Brass with nickel plating |
| Pin Material | Brass with tin plating |
| Soldering Temperature | 250°C max for 5 seconds |
| Number of Positions | 2 positions |
| Number of Pins | 2 pins |
| Pitch | 5 mm |
| Rated Voltage | 300 V |
| Rated Current | 10 A |
| Wire Capacity Range | 26–14 AWG / 0.2 mm² – 2.5 mm² |
| Contact Resistance | ≤20 mΩ |
| Insulation Resistance | ≥500 MΩ at DC 500 V |
| Withstanding Voltage | AC 2000 V for 1 minute |
| Torque | 0.4–0.5 Nm (3.5–4.5 lb·in) |
| Operating Temperature | -40°C to +105°C |
| Color | Green |
Dimensions:
Applications:
- Power Supply Units (PSUs).
- Control Panels and Industrial Automation.
- LED Drivers and Lighting Systems.
- Consumer Electronics and Appliances.
- Test and Measurement Equipment.
- Building Automation and HVAC Systems.
- Security and Access Control Systems.
- Communication Equipment and Networking Devices.
Package Contents:
- 1x KF127-5.0-2P Green Terminal Block 300V/10A 2 Pins 5mm Pitch.
