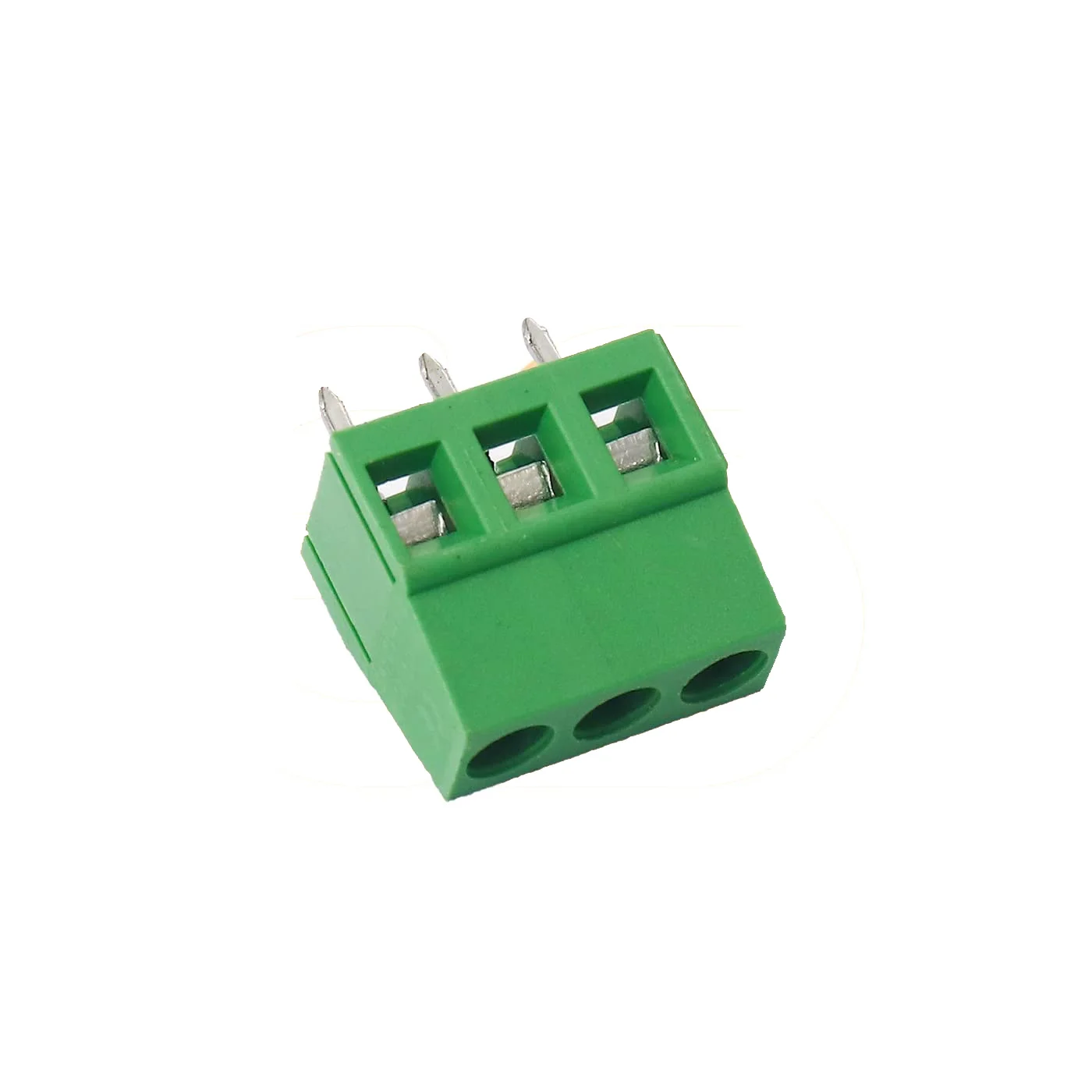

KF129-7.62-3P Terminal Block 3 Pin 300V 20A 7.62mm Pitch
A KF129-7.62-3P PCB screw terminal block with 7.62mm pitch, designed for secure high-current wire-to-board power and signal connections up to 300V and 20A.
9.50 EGP
Buy NowKF129-7.62-3P Terminal Block 3 Pin 300V 20A 7.62mm Pitch
The KF129-7.62-3P Terminal Block is a durable PCB-mounted connector used for connecting external wires to electronic circuits, industrial controllers, power supplies, and automation systems. Featuring a 3-position screw-clamp design with a 7.62mm pin pitch, it provides reliable and removable wire connections while simplifying maintenance and installation. The screw terminal mechanism securely holds both stranded and solid wires, making it suitable for applications requiring dependable electrical connections.
Manufactured with flame-retardant insulating material and corrosion-resistant conductive terminals, the KF129 terminal block offers strong mechanical stability and long-term reliability. Its through-hole PCB mounting design provides firm attachment to circuit boards, making it ideal for power distribution, motor control systems, battery connections, industrial equipment, and embedded electronics projects.
Features:
- 3-position screw terminal block.
- Secure wire clamping mechanism.
- Through-hole PCB mounting.
- Removable wire connection design.
- Supports power and signal wiring.
- Durable flame-retardant housing.
- Corrosion-resistant metal contacts.
- Easy installation and maintenance.
- High-current connection capability.
- Strong mechanical retention.
- Compatible with stranded and solid wires.
- Reliable electrical conductivity.
- Industrial-grade connection solution.
- Reusable connector design.
Specifications:
| Parameter | Value |
|---|---|
| Model | KF129-7.62-3P |
| Product Type | PCB Screw Terminal Block |
| Number of Pins | 3 |
| Pitch | 7.62mm |
| Rated Voltage | 300V |
| Rated Current | 20A |
| Mounting Type | Through Hole |
| Connection Type | Screw Clamp |
| Wire Entry | Side Entry |
| Housing Material | Flame-Retardant Thermoplastic |
| Contact Material | Metal Alloy |
| Color | Green |
| PCB Mounting | THT |
Applications:
- AC/DC power supplies.
- Industrial automation systems.
- Motor driver connections.
- Battery terminals.
- Inverter systems.
- Power distribution boards.
- LED power circuits.
- Control panels.
- Embedded electronics.
- Robotics projects.
- Electrical control equipment.
- PCB power input/output connections.
Package Includes:
- 1x KF129-7.62-3P Terminal Block 3 Pin 300V 20A 7.62mm Pitch.
