KM6264AL-10 8K X 8 64k STANDARD SRAM 100ns IC DIP-28 Wide
The KM6264AL-10 is a compact CMOS static RAM memory device designed to provide fast, byte-wide read/write storage in a single package. It implements a stable, non-volatile-in-operation memory array (static no refresh cycles required) organized to present a simple parallel interface for address, data, and control signals. The device’s internal organization and control make it straightforward to connect to microprocessors and peripheral logic for temporary data buffering.
Built using low-power CMOS circuitry, the IC emphasizes predictable, repeatable timing and robust data retention while operating under normal supply conditions. Its inputs and outputs are arranged to support standard logic levels and straightforward bus interfacing, and the device tolerances and internal architecture aim to minimize disturbance during read and write cycles so stored data remains reliable between operations.
Packaged in a through-hole DIP-28 body, the memory is intended for easy board-level installation and prototyping. Its simple control scheme (chip enable/read/write/address lines) reduces design complexity, and the device is suitable for applications where compact, fast static storage is needed as temporary working memory or buffering inside larger digital systems.
Features:
- CMOS static RAM technology (low power).
- Organized as 8K × 8 bits (64 Kbit total).
- 100 ns maximum access time (designation “-10” speed grade).
- Single 5 V supply (standard TTL/CMOS interface compatibility).
- Data retention during standby; static operation no refresh required.
- TTL-compatible control inputs (CE, OE, WE) for straightforward bus interfacing.
- Available in DIP-28 through-hole package.
Specifications:
| Specifications | KM6264AL-10 Value |
|---|---|
| Memory type: | CMOS Static RAM |
| Memory organization: | 8K × 8 bits |
| Total memory capacity: | 64 Kbit |
| Access time: | 100 ns |
| Supply voltage (VCC): | 5 V |
| Operating mode: | Static operation (no refresh required) |
| Data I/O width: | 8-bit bidirectional |
| Address inputs: | 13 address lines |
| Control signals: | Chip Enable (CE), Output Enable (OE), Write Enable (WE) |

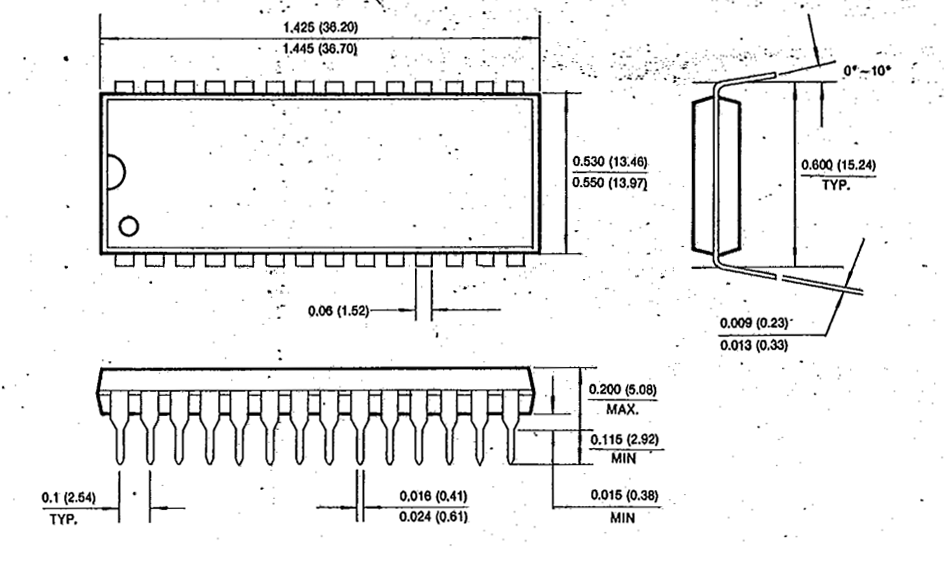

| Package type: | Plastic DIP-28 Wide |
| Mounting type: | Through-hole |
| Technology: | CMOS |
| Operating temperature range: | Commercial temperature range (0°C to +70°C) |
| Storage temperature range: | −55°C to +125°C |
| Power characteristic: | Low power standby and operating modes |

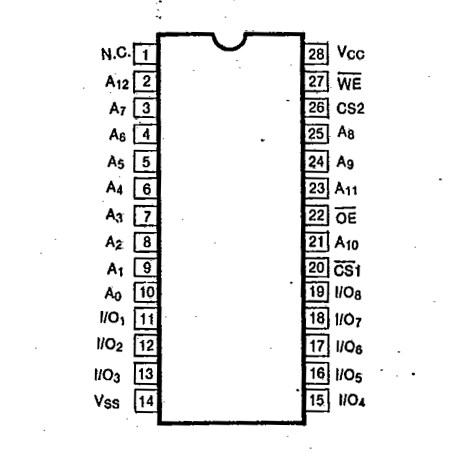

Pin Configuration:
Applications:
- Microprocessor-based systems and memory expansion.
- Battery-backed memory in portable devices.
- Industrial control and automation equipment.
- Vintage computing and retro gaming consoles.
- Embedded systems requiring non-volatile data storage emulation.
- Instrumentation and data logging applications.
Package Include:
- 1x KM6264AL-10 8K X 8 64k STANDARD SRAM 100ns IC DIP-28 Wide
