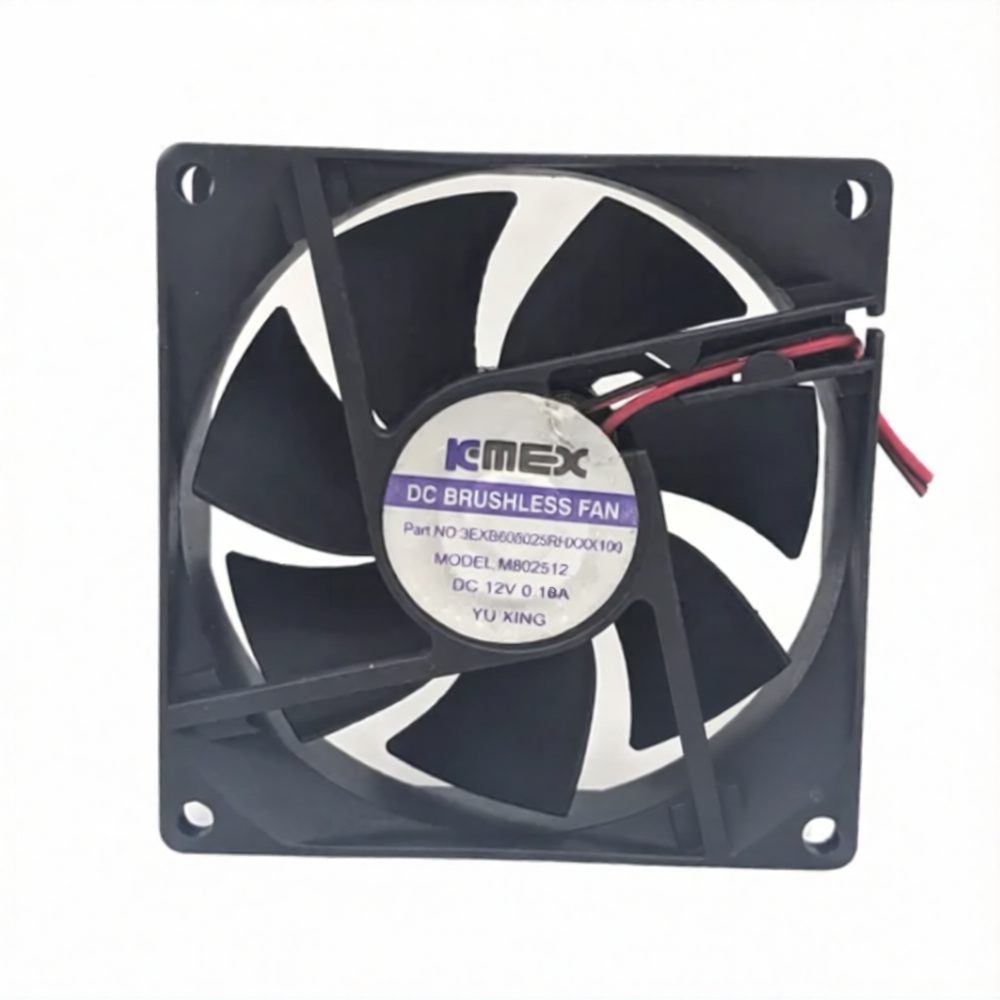

KMEX M802512BH DC Fan 12v 0.18A 80x80x25mm (USED LIKE NEW)
The M802512BH is an 80 × 80 × 25mm DC axial cooling fan designed to provide reliable airflow in electronic and computer equipment. It operates from a 12V DC supply and, based on your supplied rating, draws 0.18A, corresponding to approximately 1.68W of power consumption. Published references identify the M802512BH as a 12V, 80 × 80 × 25mm brushless axial fan, with ball-bearing versions available.
This fan is suitable for power supplies, computer systems, servers, electronic enclosures, networking equipment, and general equipment ventilation. The standard 80mm × 25mm form factor makes it convenient for replacement applications where space is limited. Available listings commonly show this model with a 2-pin connector, while the supplied unit should be checked for its exact connector and wiring.
Features:
- Compact 80mm DC axial cooling fan.
- Brushless DC motor.
- Standard 80 × 80mm mounting format.
- 25mm fan thickness.
- Designed for electronic equipment cooling.
- Suitable for power supply ventilation.
- Compact and easy to install.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | KMEX |
| Model | M802512BH |
| Fan Type | DC Axial Cooling Fan |
| Rated Voltage | 12V DC |
| Rated Current | 0.18A |
| Power Consumption | Approx. 1.68W |
| Dimensions | 80 × 80 × 25mm |
| Frame Size | 80mm |
| Fan Thickness | 25mm |
| Motor Type | Brushless DC |
| Bearing Type | Ball Bearing |
| Connection | 2-Wire / 2-Pin |
| Condition | Used Like New |
Applications:
- Computer case cooling.
- Power supply cooling.
- Server cooling.
- Electronic equipment.
- Networking equipment.
- Industrial equipment.
- Electronic enclosures.
- Control cabinets.
- General ventilation.
- Replacement cooling applications.
Package Includes:
- 1 × KMEX M802512BH DC Fan 12V 0.18A 80 × 80 × 25mm (Used Like New).
