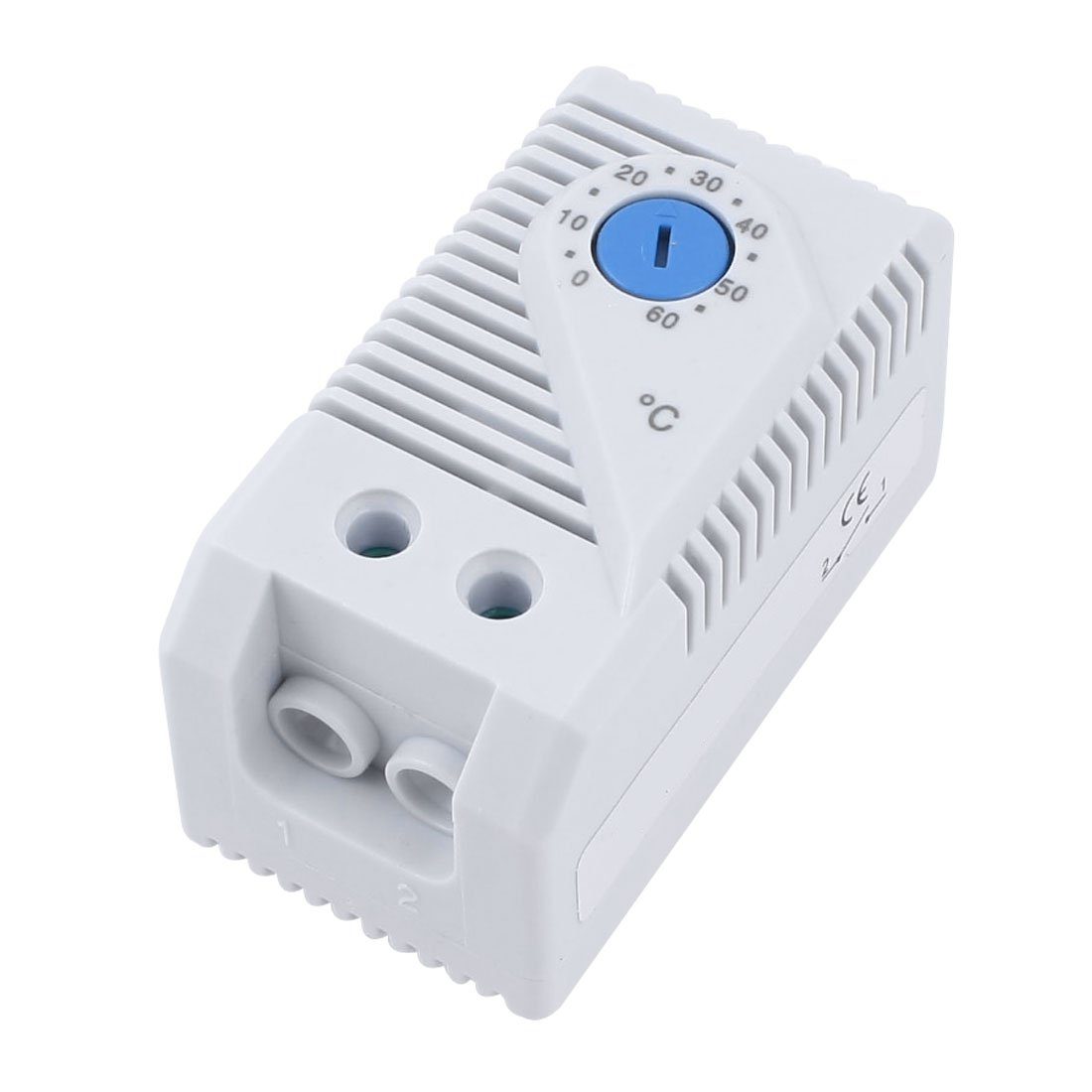

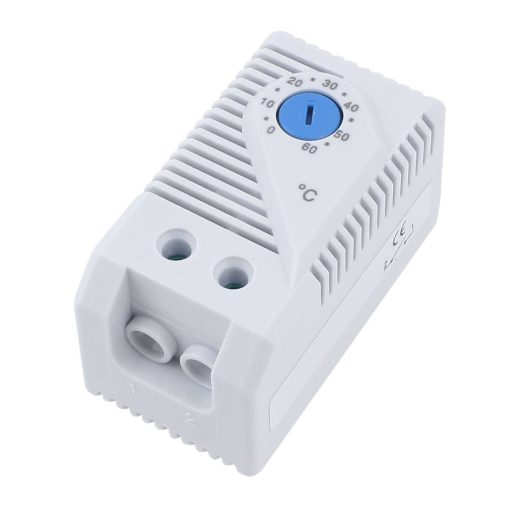

KTS 011 Enclosure Mechanical Thermostat Normally Open 250VAC 2A 0–60°C
KTS 011 Enclosure Mechanical Thermostat Normally Open 250VAC 2A 0–60°C is a reliable mechanical thermostat designed for temperature control inside electrical enclosures and control panels. Featuring a normally open (NO) contact, it automatically switches connected cooling devices such as fans when the preset temperature is reached. The adjustable temperature range from 0°C to 60°C allows flexible operation for various industrial applications. Its compact DIN rail mountable design ensures easy installation while improving equipment reliability by preventing overheating. The thermostat operates at up to 250VAC with a switching capacity of 2A, making it suitable for a wide range of enclosure climate control systems.
Features
- Normally Open (NO) contact for fan and cooling control.
- Adjustable temperature range from 0°C to 60°C.
- Supports up to 250VAC switching voltage.
- Rated switching current of 2A.

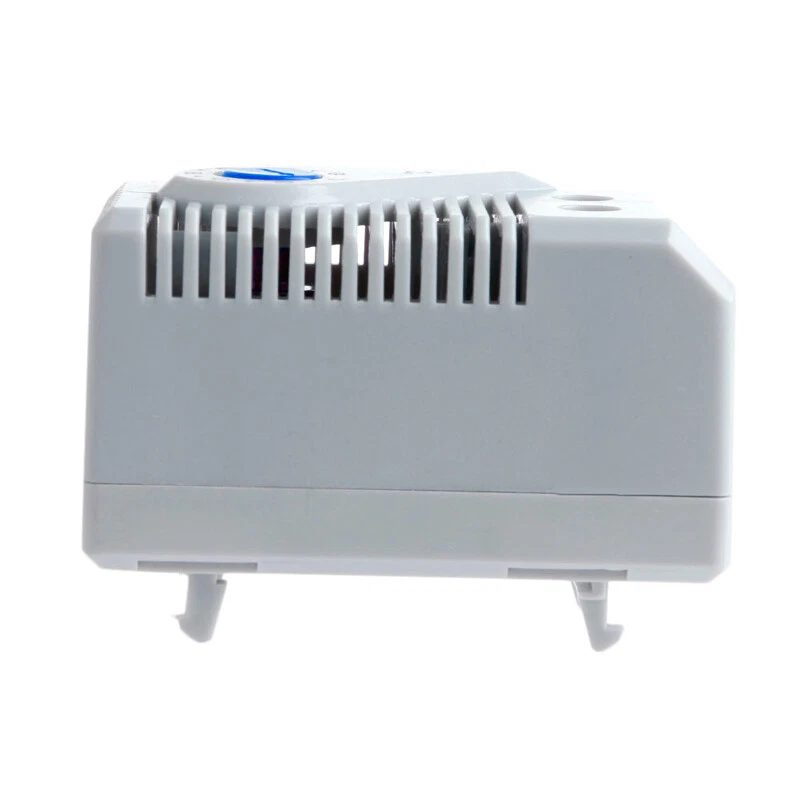

- Compact DIN rail mounting design.
- Reliable mechanical temperature sensing.
- Improves enclosure ventilation efficiency.
- Reduces overheating of electrical equipment.
- Simple installation and maintenance.
- Durable construction for industrial environments.
Specifications
| Parameter | Details |
| Product Name | KTS 011 Enclosure Mechanical Thermostat |
| Thermostat Type | Mechanical |
| Contact Type | Normally Open (NO), Snap-action contact |
| Switching Action | Closes above set temperature |
| Sensor Element | Thermostatic bimetal |
| Rated Voltage | 250VAC |
| Application | Inductive load / cooling control |
| Rated Current | 2A |

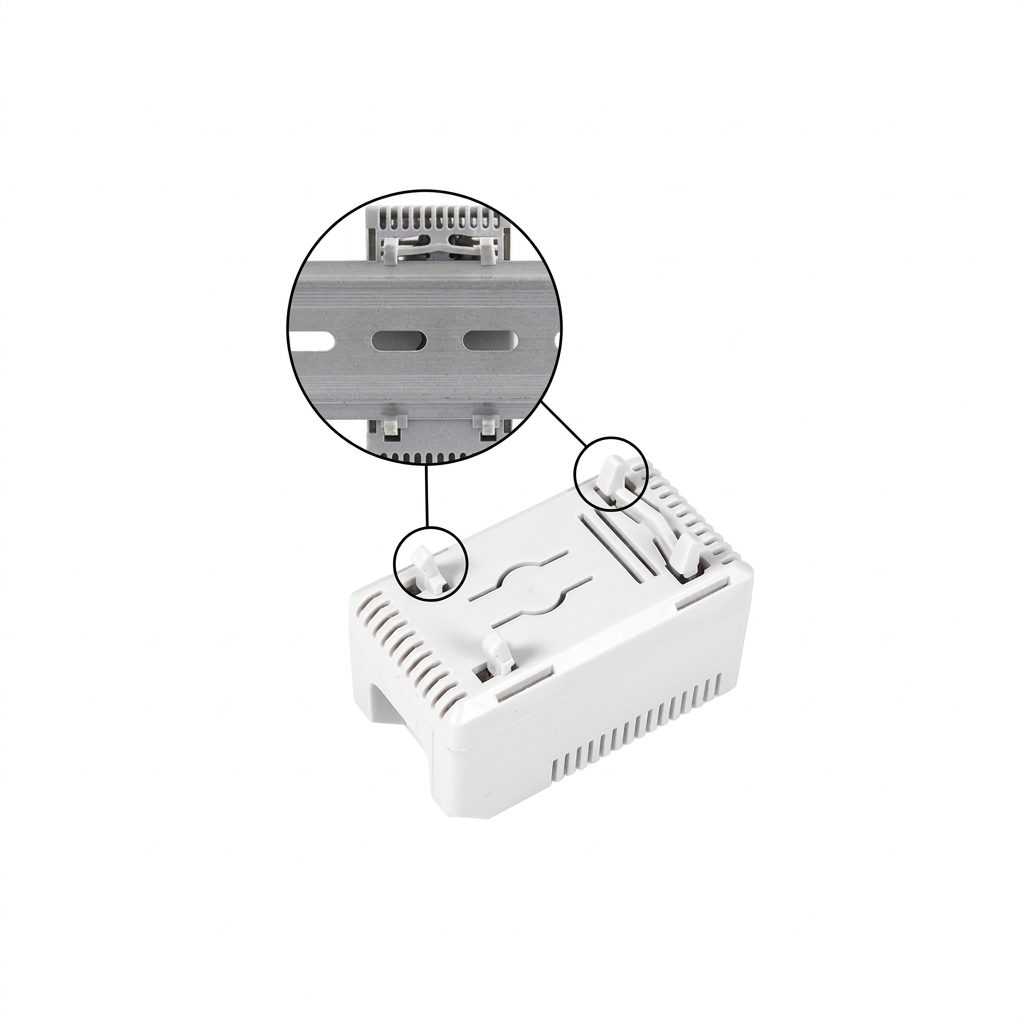

| Mounting Type | DIN Rail (35mm DIN rail, EN 60715) |
| Installation | Electrical Enclosure |
| Housing Material | Plastic according to UL94 V-0 |
| Color | Grey |
| Connection | 2-Pole Terminals |
| Dimensions | 60mm x 33mm x 43mm |
| Weight | Approx. 40 g |
| Operating / Storage Temperature | -45°C to +80°C (-49°F to +176°F) |
| Operating / Storage Humidity | Max. 90% RH (non-condensing) |
| Protection Type | IP20 |
Dimensions

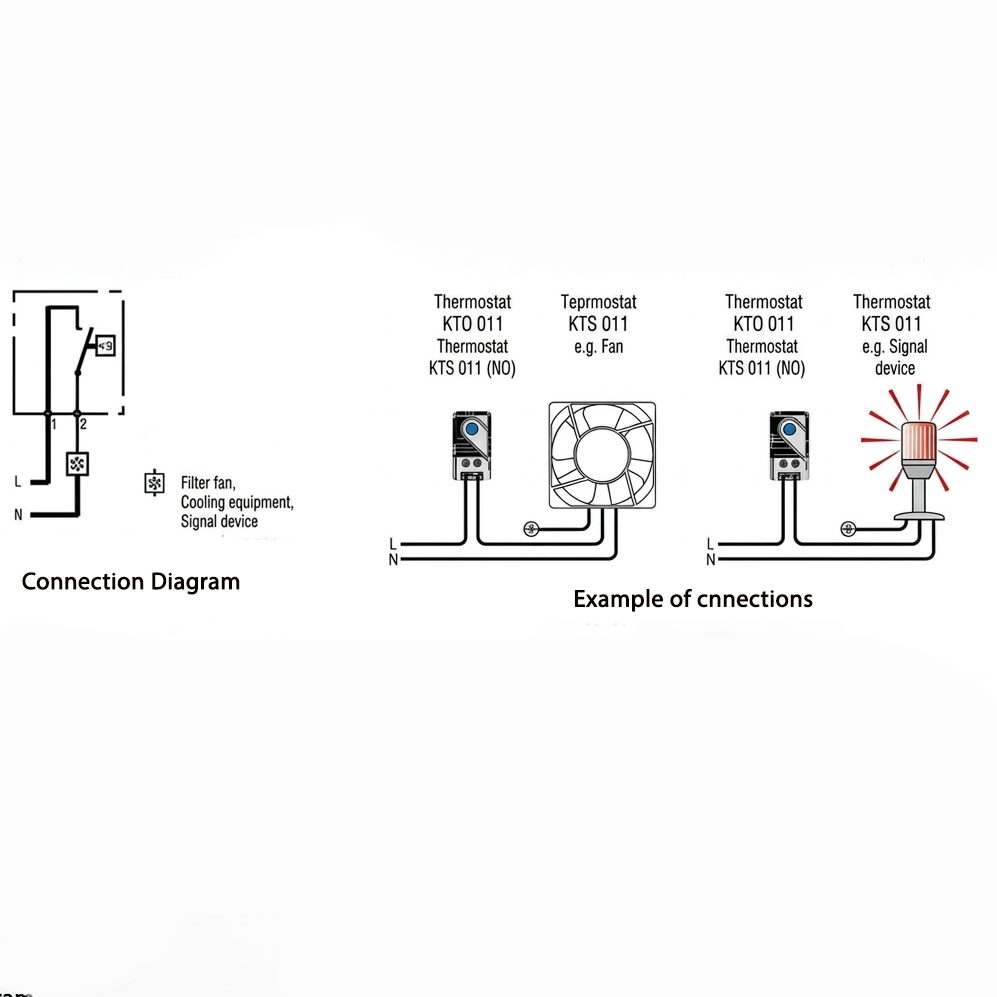

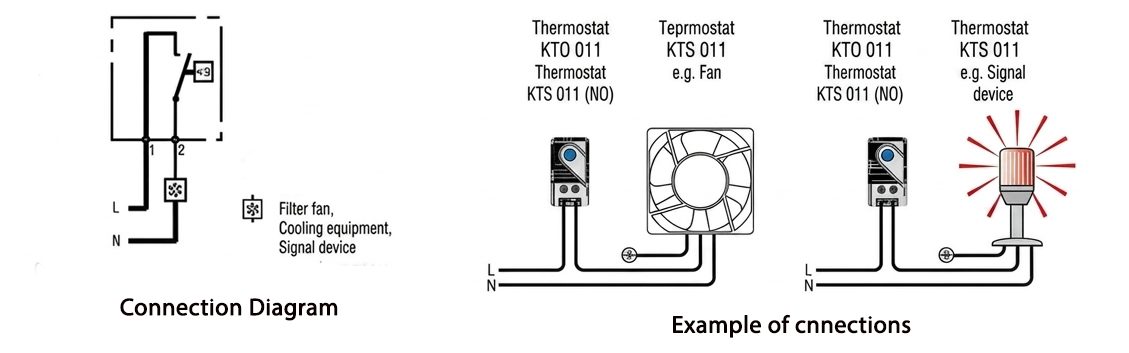

Connections
Pin Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | Terminal 1 | Input line for switching circuit. |
| 2 | Terminal 2 | Switched output to cooling device (fan / blower / Cooling Equipment / Signal Devices). |
Important Notes
- When connecting with wires, wire end ferrules must be used.
- The contact system of the regulator is subjected to environmental influences, thus the contact resistance may change.
- This can lead to a voltage drop and/or self-heating of the contacts.
Applications
- Electrical control cabinets.
- Industrial automation panels.
- Distribution boards.
- Cooling fan control systems.
- Telecommunications cabinets.
- Server enclosures.
- Power supply cabinets.
- PLC control panels.
- HVAC control enclosures.
- Machine electrical cabinets.
Package Contents
- 1 x KTS 011 Enclosure Mechanical Thermostat Normally Open 250VAC 2A 0–60°C
