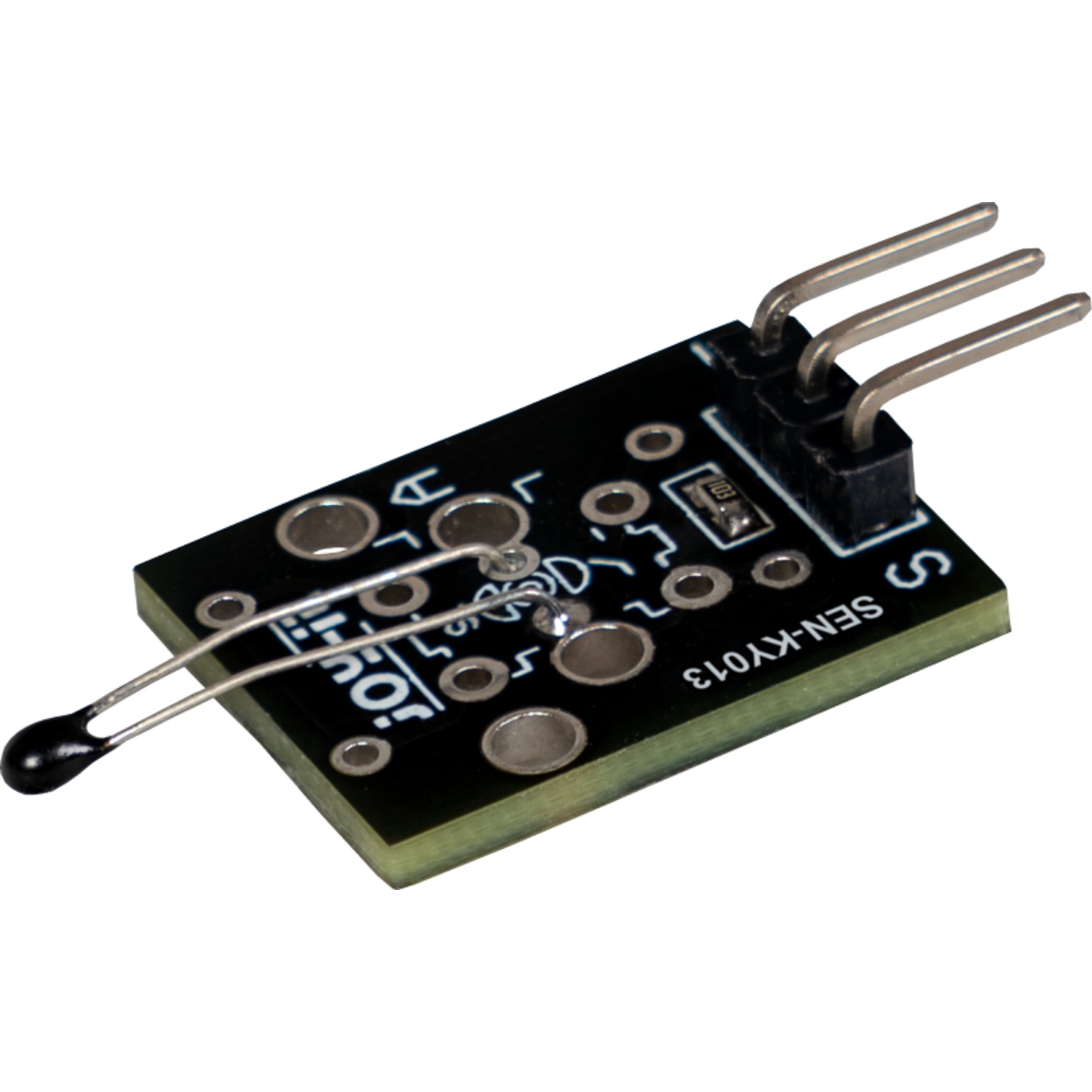

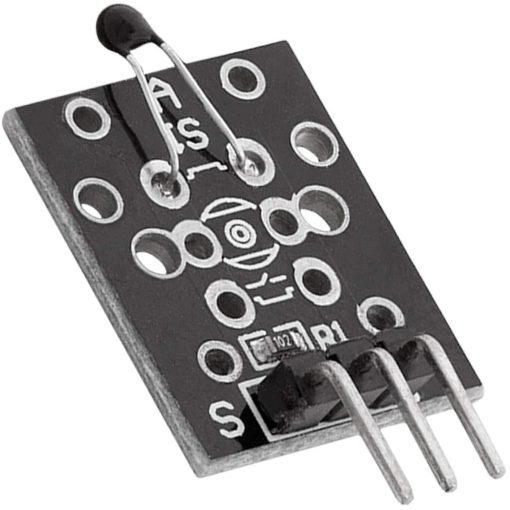

KY-013 NTC Thermistor Temperature Sensor Module
The KY-013 NTC Thermistor Temperature Sensor Module is an analog temperature sensing module based on a Negative Temperature Coefficient (NTC) thermistor. The resistance of the thermistor changes according to temperature variations, allowing microcontrollers to measure surrounding temperature through analog voltage readings. It is widely used in educational electronics, automation systems, environmental monitoring, and DIY embedded applications.
This module includes a precision 10KΩ resistor and provides a simple analog output interface compatible with Arduino, ESP32, Raspberry Pi, STM32, and other development boards. The KY-013 operates with both 3.3V and 5V systems, making it suitable for a wide range of low-power electronic projects. Due to its compact size and easy interfacing, it is commonly used in weather stations, smart home systems, thermal monitoring, and industrial temperature detection applications.
Features:
- Uses NTC thermistor technology.
- Analog temperature output.
- Compact PCB module design.
- Fast response to temperature changes.
- Compatible with Arduino and Raspberry Pi.
- Works with 3.3V and 5V systems.
- Easy interfacing with ADC pins.
- Stable and reliable operation.
- Suitable for environmental monitoring.
- Low power consumption.
- Simple 3-pin connection interface.
- Ideal for educational and DIY projects.
Specifications:
| Parameter | Value |
|---|---|
| Product Name | KY-013 Temperature Sensor Module |
| Sensor Type | NTC Thermistor |
| Output Type | Analog |
| Operating Voltage | 3.3V – 5V |
| Temperature Range | -55°C to +125°C |
| Accuracy | ±0.5°C |
| Thermistor Resistance | 10KΩ |
| Thermistor Type | MF52-3950 |
| Interface | 3-Pin |
| PCB Dimensions | 18.5 × 15mm |
Pinout:
Applications:
- Temperature monitoring systems.
- Smart home automation.
- Weather stations.
- Arduino temperature projects.
- Raspberry Pi monitoring systems.
- Industrial thermal sensing.
- HVAC monitoring.
- Environmental data logging.
- Educational electronics projects.
- IoT sensor systems.
Package Included:
- 1x KY-013 NTC Thermistor Temperature Sensor Module.
