L200C Adjustable Voltage and Current Regulator IC

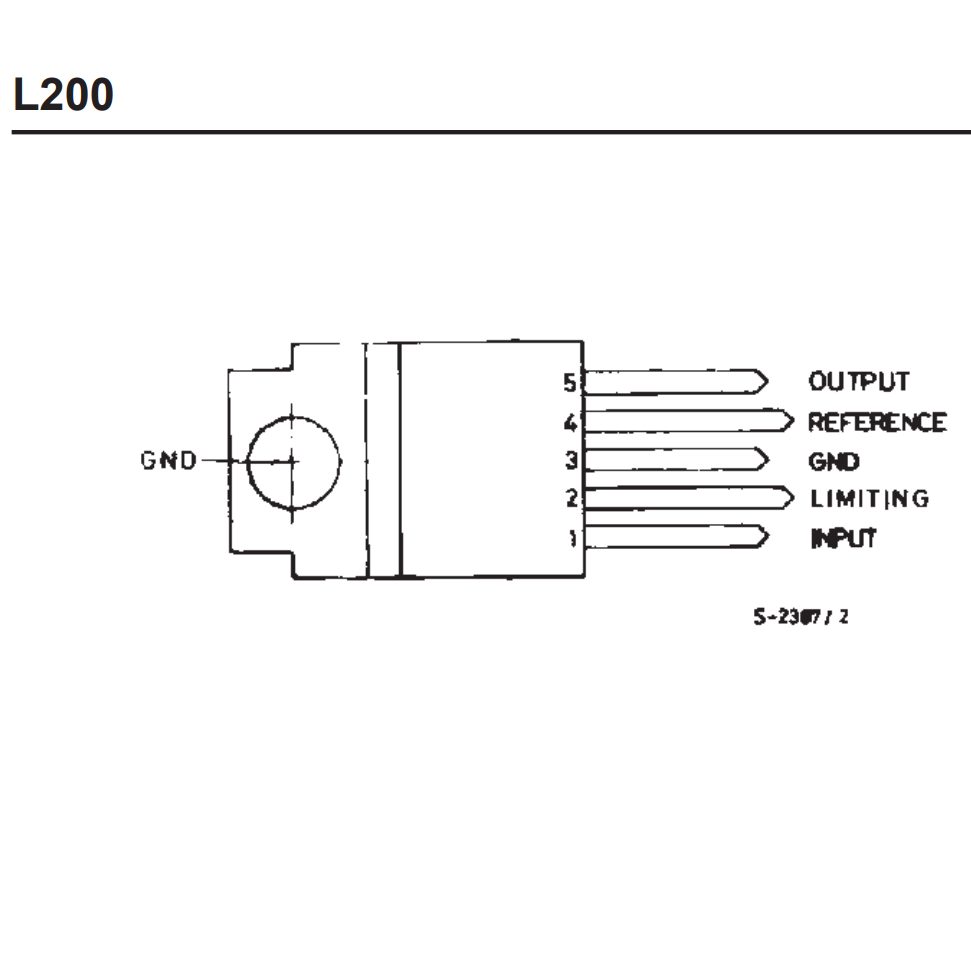

The L200 is a monolithic integrated circuit for voltage and current programmable regulation. It is available in Pentawatt®package or 4-lead TO-3 metal case. Current limiting, power limiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200 virtually blow-out proof.
The L200 can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.
Features & Specifications:
- Adjustable Output Current Up To 2 A (Guaranteed Up To Tj = 150 ℃)
- Adjustable Output Voltage Down To 2.85V
- Input Overvoltage Protection (Up To 60V, 10ms)
- Short Circuit Protection
- Output Transistor S.O.A. Protection
- Thermal Overload Protection
- Low Standby Current Drain
Specification:
- Output Voltage: 2.85 V to 36 V
- Output Current: 2 A
- Output Type: Adjustable
- Input Voltage MAX: 40 V
- Input Voltage MIN: 8 V
- Minimum Operating Temperature: – 25 C
- Maximum Operating Temperature: + 150 C
- PSRR / Ripple Rejection – Typ: 60 dB
