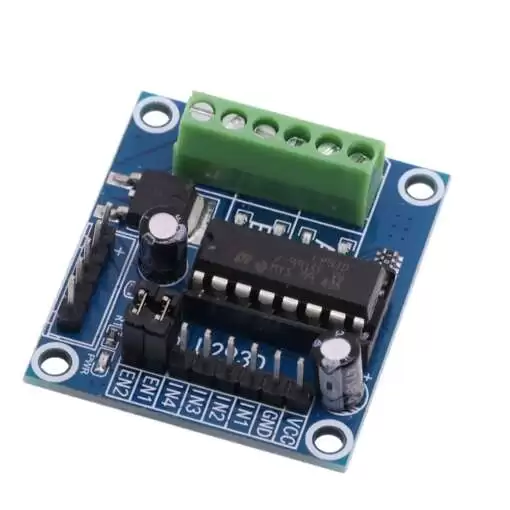

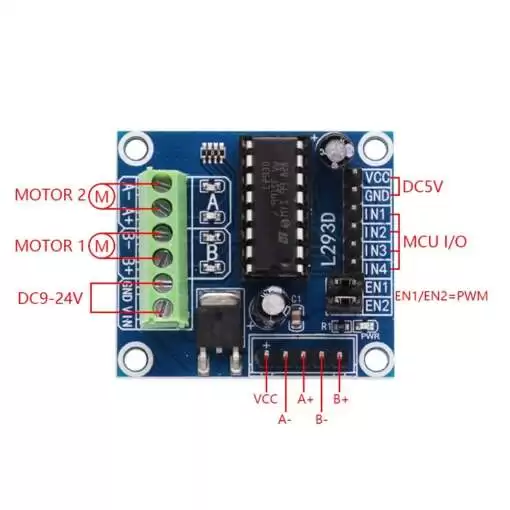

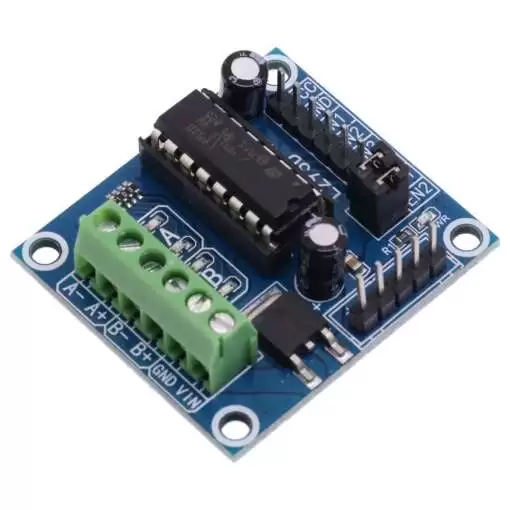

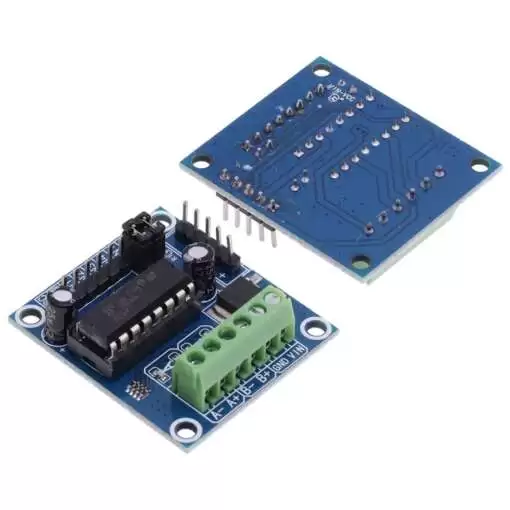

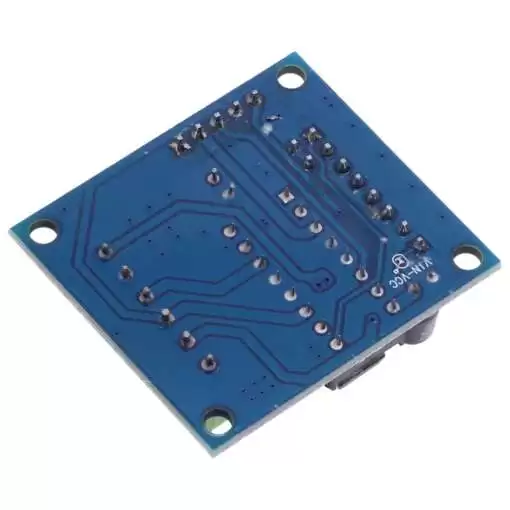

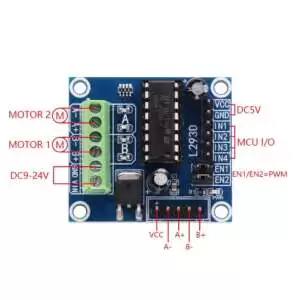

L293D Dual Channel DC Motor Driver Module
The L293D is a monolithic integrated, high voltage, high current, 2-channel. With this chip, you can control DC motors and power supplies of up to 24 Volts. It’s chip is also known as the H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.
Features:
- Enable facility
- Overtemperature protection
- Logical “0” input voltage up to 1.5V(High noise immunity)
- Internal clamp diodes
Specifications:
- Model: L293D
- Input Supply voltage: 4.5 ~ 24VDC
- Output Current: 600 mA (per channel)
- Peak Output Current: 1.2A (per channel)
- Switching Frequency: 5 KHz
- No. of motors controlled by driver: 2
- Compatible: 2 DC Motors 1 Stepper Motor

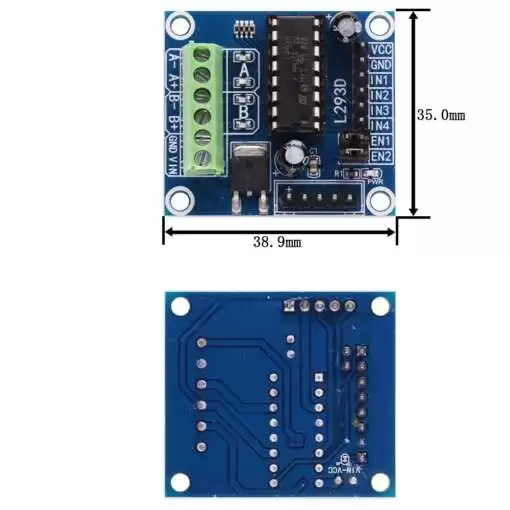

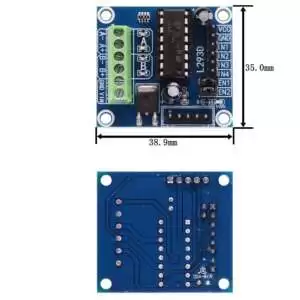

- Length: 38.9 mm
- Width: 35 mm
Applications:
- Can be used to control motors of DIY Robot
- Can be used to control motor speed and direction
