L7808CV Positive Voltage Regulator 8V 1.5A TO-220
L7808CV Positive Voltage Regulator is a fixed 8V linear regulator commonly used to provide a stable 8V DC output from a higher DC input voltage.
8.00 EGP
Buy NowL7808CV Positive Voltage Regulator 8V 1.5A TO-220
The L7808 is a three-terminal positive voltage regulator from the L78 series, designed to provide a fixed regulated output of 8V. The device is intended for local on-board voltage regulation and can simplify power-supply designs by providing a stable output voltage from a higher input supply.
The L7808 incorporates internal current limiting, thermal shutdown, and safe-area protection. According to the datasheet, the L7808A provides a nominal 8V output, with the electrical characteristics specified for input voltages and load conditions detailed in the datasheet. The L7808 series is available in several packages, including TO-220, TO-220FP, D²PAK, and DPAK.
Features:
- Fixed positive voltage regulation.
- Stable regulated DC output.
- Three-terminal regulator design.
- Internal current limiting.
- Thermal overload protection.
- Short-circuit protection.
- Safe-area protection.
- Suitable for local on-board regulation.
- Available in multiple package types.
Specifications:
| Attribute | Value |
| Regulator Type | Linear Voltage |
| Maximum Output Current | 1.5A |
| Output Voltage | 8 V |
| Number of Outputs | 1 |
| Polarity | Positive |
| Mounting Type | Through Hole |

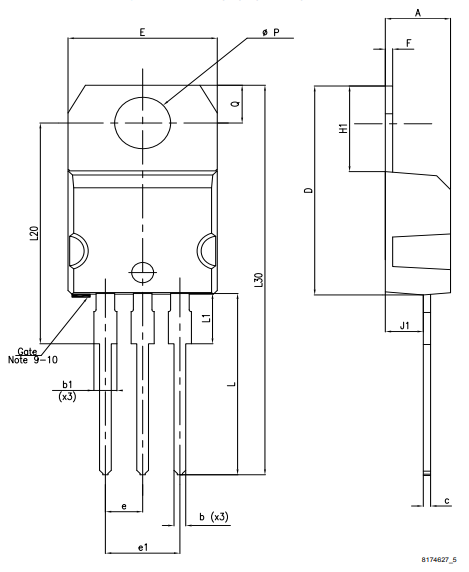

| Package Type | TO-220 |
| Quiescent Current | 6mA |
| Pin Count | 3 |
| Output Type | Fixed |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +125 °C |
| Maximum Input Voltage | 35 V |
Pinout:
|
Pin Number |
Pin Type |
Pin Description |
|
1 |
IN |
Positive Input Voltage |
|
2 |
GND |
Ground |
|
3 |
OUT |
Positive Output Voltage |
Applications:
- Power supply regulation.
- Embedded systems.
- Consumer electronics.
- Industrial automation.
- Communication equipment.
- Automotive electronics.
- Test and measurement devices.
- Microcontroller power supply.
- Audio equipment.
- Battery-powered circuits.
Package Contents:
- 1x L7808CV Positive Voltage Regulator 8V 1.5A TO-220.
