Sold out
LED 2835 SMD Red 2.2-2.4V 620-625nm 200mW (Reverse Polarity)
| Manufacturer | ZK |
|---|---|
| Model Number | ZK-2835-Red |
| Component Description | Surface-Mount Red LED, 120° viewing angle |
| Datasheet | ZK-2835-Red |
0.75 EGP
LED 2835 SMD Red 2.2-2.4V 620-625K 200mW
The LED 2835 SMD Red is a high-performance surface-mount device designed for a variety of red light applications. With a wavelength range of 620-625 nm, this LED is perfect for use in indicators, backlighting, and other applications requiring red light. Operating with a forward voltage of 2.2-2.4V, it ensures optimal energy efficiency and long-lasting brightness. This LED offers a luminous flux of 2-4 lumens, providing excellent light output for its power consumption.
Features:
- High-quality SMD design for reliable performance.
- Wavelength range of 620-625 nm, ideal for red lighting.
- Luminous flux of 2-4 lumens.
- Forward voltage of 2.2-2.4V for energy efficiency.
- Wide viewing angle of 120°.
Specifications:
| Parameter | Value |
|---|---|
| Model | ZK-2835-Red |
| Wavelength | 620-625 nm |
| Forward Voltage | 2.2-2.4V |
| Luminous Flux | 2-4 lm |
| Forward Current | 60 mA |
| Reverse Voltage | 5 V |
| Viewing Angle | 120° |
| Operating Temperature | -30°C to +80°C |
| Storage Temperature | -40°C to +85°C |

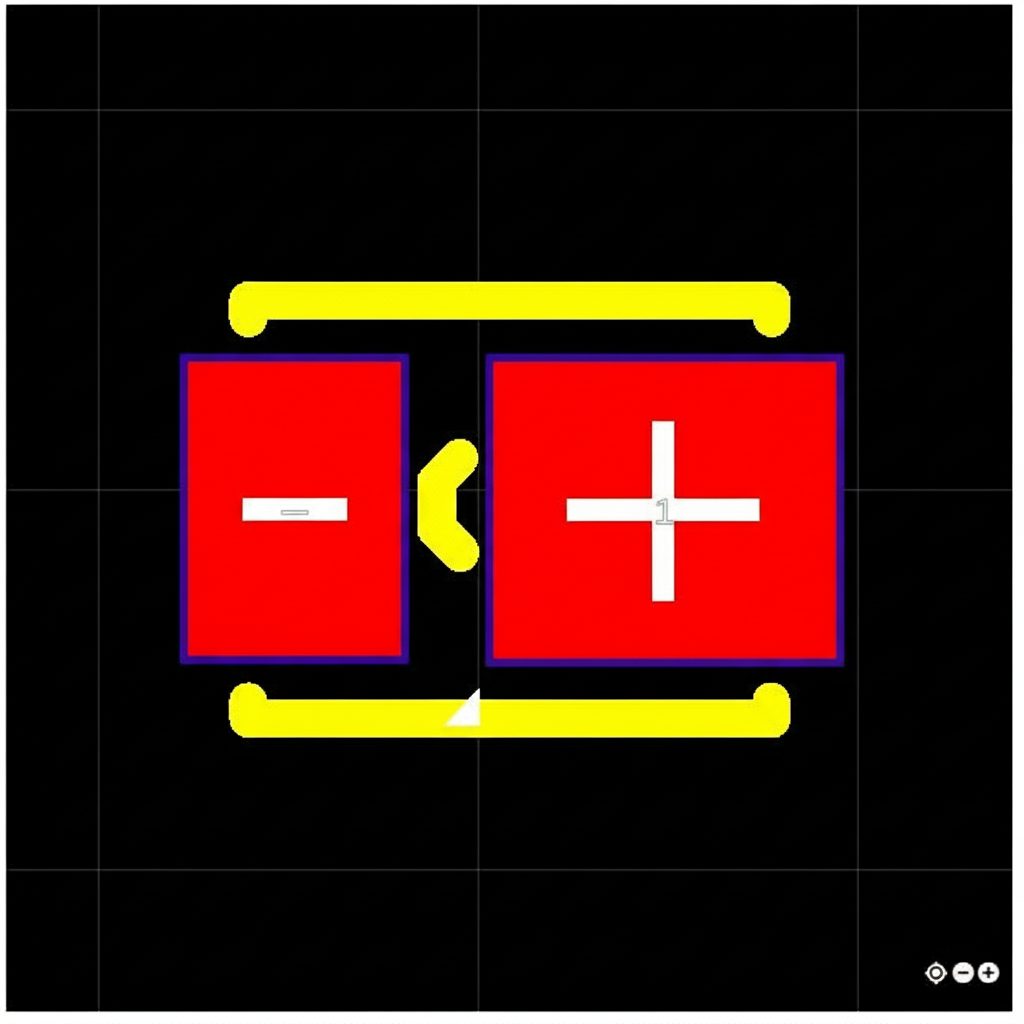

Foot print:
Applications:
- Backlighting for LCD displays.
- Automotive dashboard indicators.
- Push-button and keypad backlighting.
- Indoor and outdoor general lighting.
- Indicator lights in consumer electronics.
- Signage and decorative lighting.
