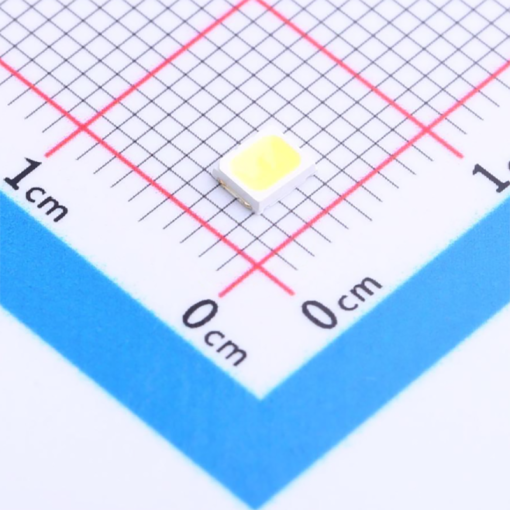

LED 2835 SMD Warm White 2800K-3000K 500mW 3.2V
The LED 2835 SMD Warm White 500mW 3.2V is a high-efficiency light source designed to provide warm white illumination in a variety of lighting applications. With a compact size of 2.8 x 3.5 x 0.8 mm, it delivers optimal performance while maintaining energy efficiency. This LED operates in a color temperature range of 2800K to 3000K, creating a soft, warm light perfect for a range of environments.
Built with high-quality materials, this LED meets ROHS environmental standards, ensuring it is free from hazardous substances. The LED is designed to withstand various environmental factors, making it reliable for use in challenging conditions. It supports both infrared reflow soldering and automated SMT production processes, ensuring versatility in manufacturing.
With a maximum power dissipation of 500mW, the LED provides bright light output while maintaining low power consumption. Its robust build ensures consistent performance across a wide range of applications, including indoor lighting systems, commercial displays, and decorative lighting. Whether used in backlighting or as part of light strips, this LED is designed for long-lasting durability and high-performance lighting.
Features:
- High Efficiency: Low power consumption and high light output.
- Compact Design: Suitable for space-constrained installations.
- Warm White Color: Ideal for creating comfortable, ambient lighting.
- ROHS Compliant: Eco-friendly and free from harmful substances.
- Versatile Application: Perfect for multiple uses including decorative and commercial lighting.
Specifications:
| Parameter | Value | Unit |
|---|---|---|
| Maximum Power Dissipation: | 500 mW | mW |
| Maximum Continuous Forward Current: | 150 mA | mA |
| Peak Forward Current: | 300 mA | mA |
| Maximum Reverse Voltage: | 5 V | V |
| Electrostatic Discharge (ESD): | 2000 V | V |
| Operating Temperature Range: | -40 ~ +85 °C | °C |
| Storage Temperature Range: | -40 ~ +85 °C | °C |
| Forward Voltage: | 2.8 ~ 3.4 V | V |
| Viewing Angle: | 120° | Degrees |
| Reverse Current: | ≤ 5 μA | μA |
Pinout Diagram:
Footprint Diagram:
Applications:
- Indoor Lighting.
- Commercial Lighting Displays.
- LCD Backlighting.
- Decorative Lighting.
Package Contents:
- 1x LED 2835 SMD Warm White 2800K-3000K 500mW 3.2V
