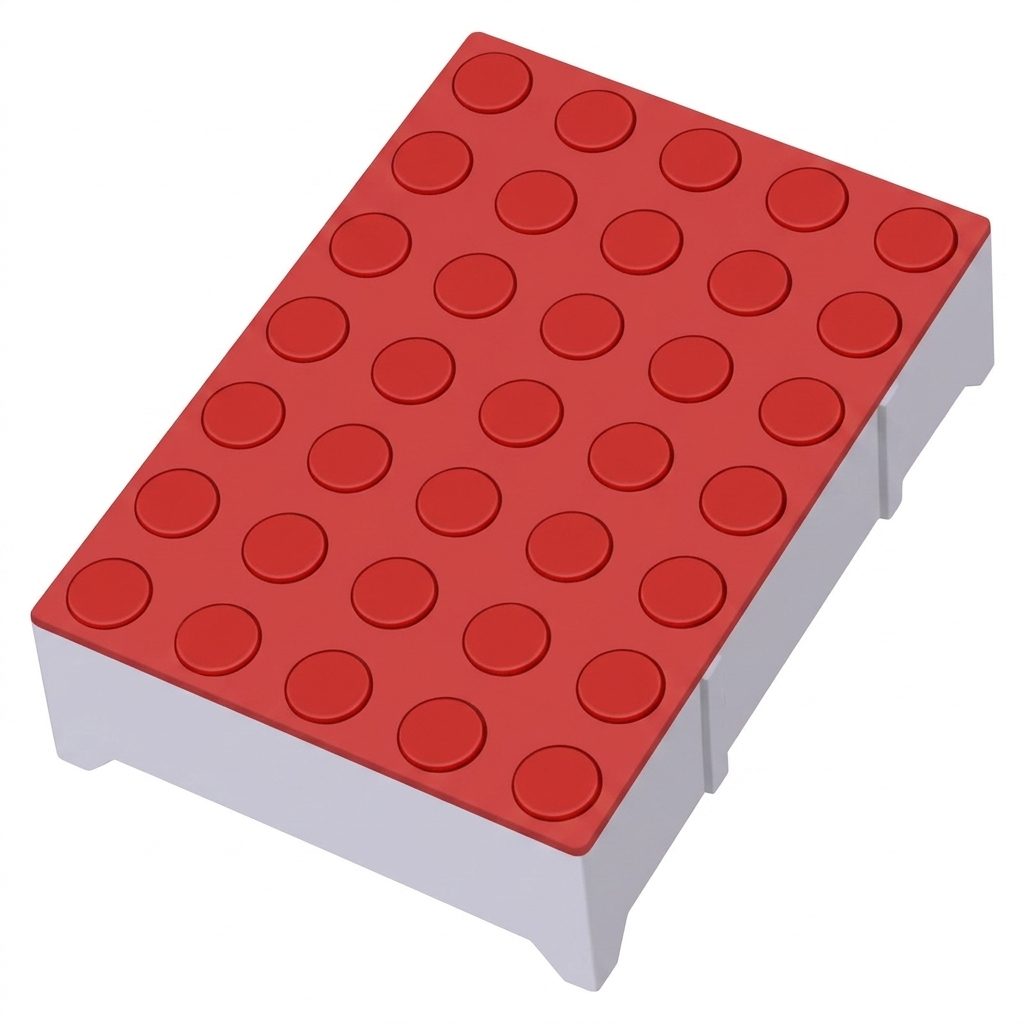

LED Dot Matrix Display 5×7, 5mm Red
The LED Dot Matrix Display 5×7, 5mm Red, Common Cathode is a through-hole LED display consisting of 35 individual red LEDs arranged in a 5-column by 7-row matrix. This configuration provides a simple and flexible method for displaying letters, numbers, symbols, patterns, and basic graphical information in electronic projects.
Features:
- 5×7 LED dot-matrix configuration.
- 35 individual red LED dots.
- 5mm LED dot diameter.
- Common cathode row configuration.
- Red emitting color.
- 14-pin through-hole package.

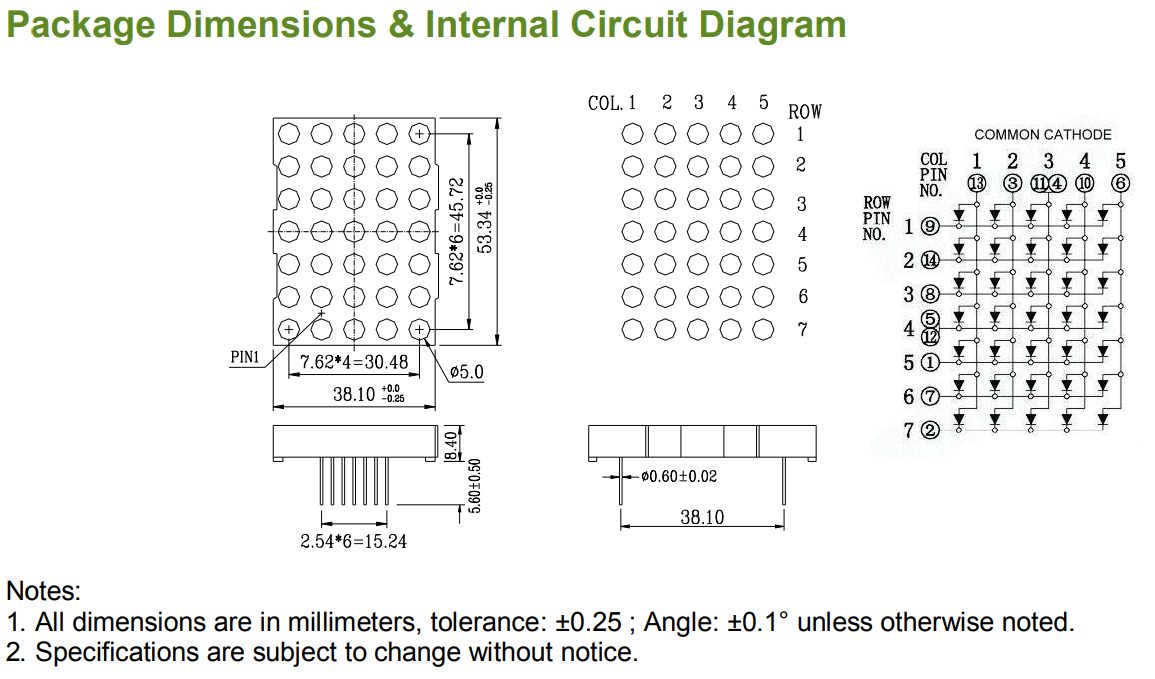

Specifications:
| Parameter | Value |
|---|---|
| Product Type | LED Dot Matrix Display |
| Matrix Configuration | 5×7 |
| Number of LEDs | 35 |
| Emitting Color | Red |
| LED Dot Diameter | 5.00mm |
| Common Type | Common Cathode |
| Number of Pins | 14 |
| Character Height | 53.10mm |
| Dot Pitch | 7.62mm |
| Package Width | 38.10mm |
| Package Height | 53.10mm |
| LED Forward Voltage | 1.8V |
| LED Forward Voltage | 2.2V |
| DC Forward Current | 30mA |
| Peak Forward Current | 60mA |
| Mounting Type | Through-Hole |
Applications:
- Arduino and microcontroller projects.
- Embedded electronic displays.
- Character and number displays.
- Digital counters.
- Digital clocks and timers.
- Status and warning indicators.
- Scrolling message displays.
- Educational electronics projects.
- DIY electronic display projects.
- Instrument panels.
- Control panels.
- Simple graphical display applications.
Package Include:
1x LED Dot Matrix Display 5×7, 5mm Red.
