LED Dual Color 3mm Red & Yellow 3 Pin
The LED Dual Color 3mm Red & Yellow 3 Pin combines two LED dies in a single compact 3mm package, providing red and yellow illumination from one component. Its three-pin configuration allows the two colors to be controlled individually, making it useful where multiple visual indications are needed without requiring separate LED packages.
With its small through-hole design, this LED can be easily installed on PCBs, breadboards, and electronic panels. It is suitable for status indicators, control panels, instrumentation, hobby projects, and other applications where different operating conditions need to be visually distinguished.
Features:
- Dual-color LED in a single package
- Red and yellow illumination
- Compact 3mm through-hole package
- Three-pin configuration
- Individual color control
- Easy PCB and breadboard mounting
- Suitable for visual status indication
Specifications:
| Parameter | Value |
|---|---|
| LED Type | Dual Color |
| Colors | Red & Yellow |
| Package Diameter | 3mm |
| Number of Pins | 3 |
| Voltage Range | 2 – 3V |
| Mounting Type | Through Hole |
| Lens Type | 3mm LED lens |
| Polarity | Common terminal configuration |
| Number of LED Dies | 2 |

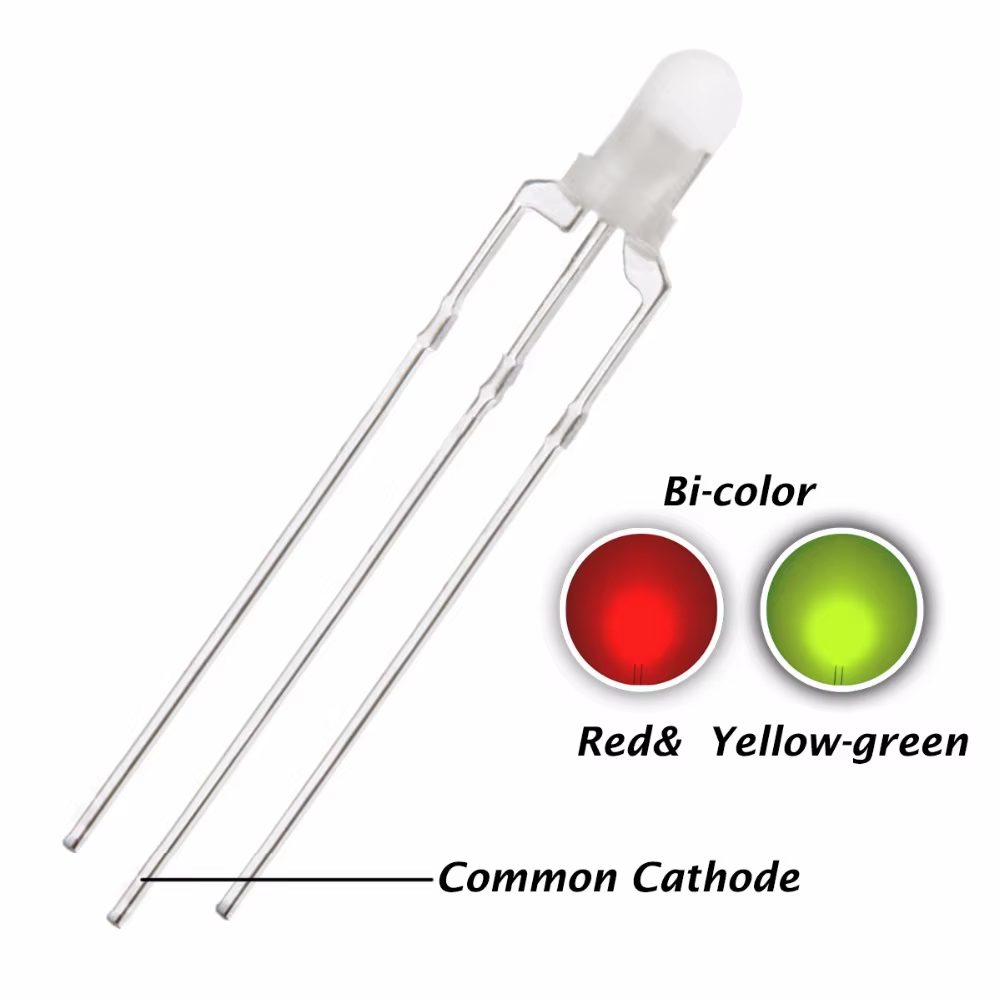

Pinout:
| Pin | Connection |
|---|---|
| Pin 1 | Red LED Terminal |
| Pin 2 | Common Terminal |
| Pin 3 | Yellow LED Terminal |
Applications:
- Power status indication
- Warning indicators
- Equipment status displays
- Control panels
- Electronic instruments
- DIY electronics projects
- Microcontroller projects
- PCB status indicators
- Breadboard prototypes
Packages Included:
- 1 × LED Dual Color 3mm Red & Yellow 3 Pin.
