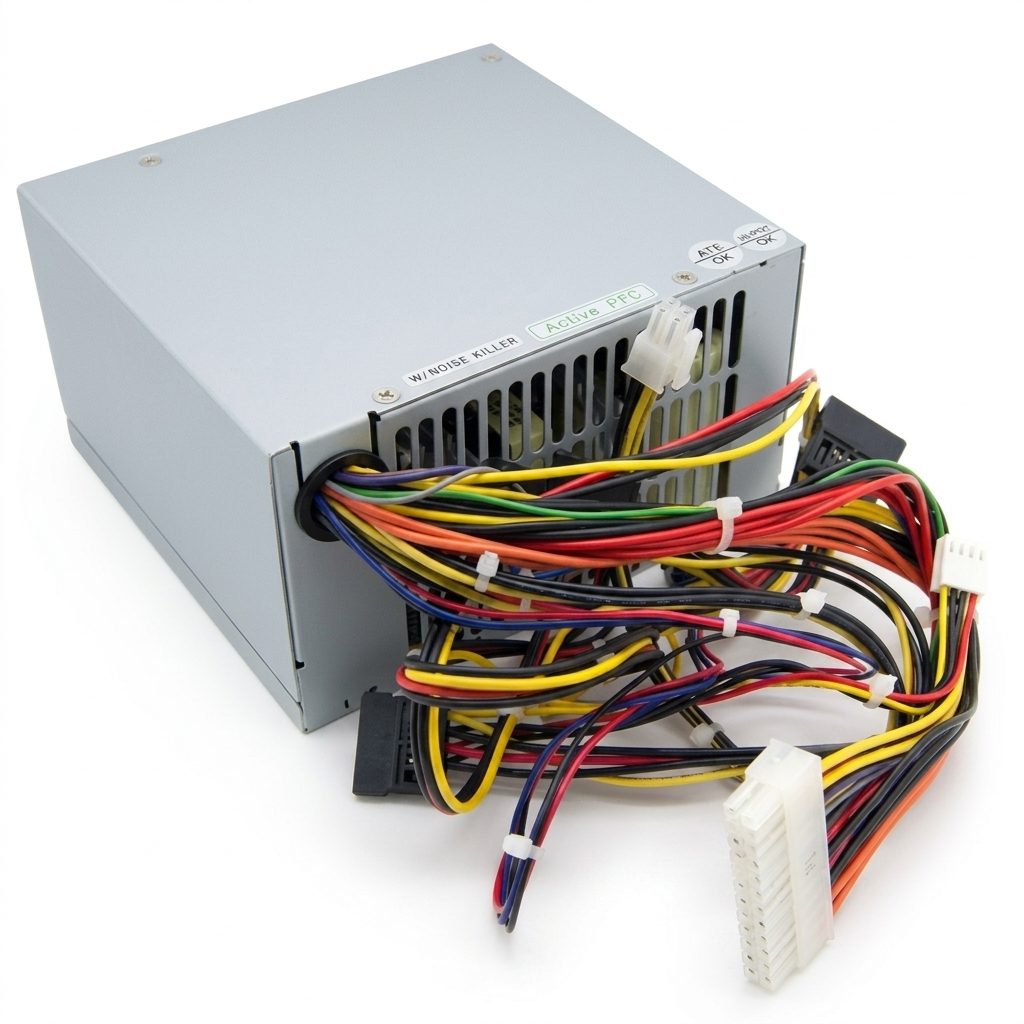

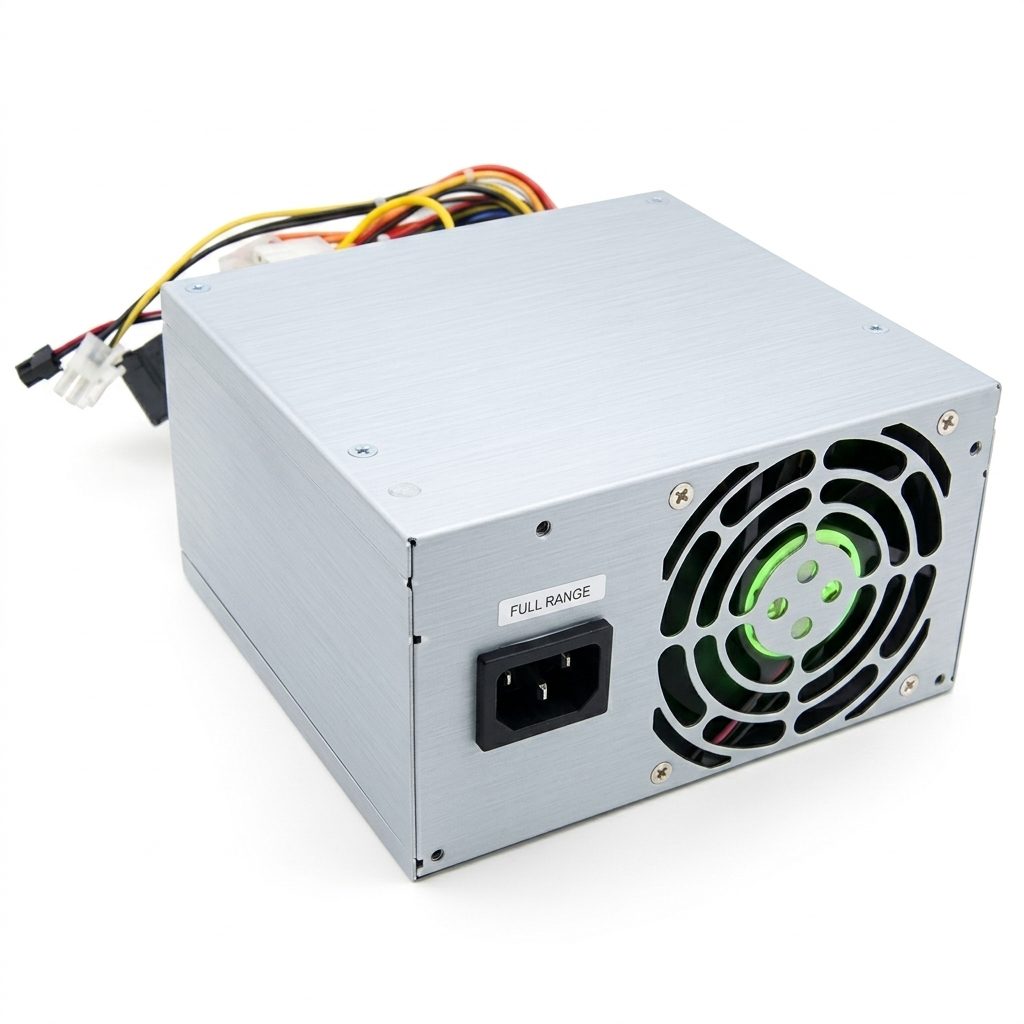

Lenovo FSP280-50EPA 54Y8895 PSU Power Supply 280W (USED LIKE NEW)
The Lenovo FSP FSP280-50EPA 280W ATX Power Supply 54Y8895 (USED LIKE NEW) is a desktop computer power supply designed to provide multiple regulated DC voltage rails for compatible computer systems. The unit is identified on its specification label as FSP280-50EPA, with LC P/N 36200503, LI P/N SP50A33605, and FRU No. 54Y8895.
Features:
- 280W maximum rated output power.
- FSP FSP280-50EPA model.
- Lenovo-compatible 54Y8895 FRU.
- 100–240VAC input voltage.
- 8A–4A AC input current range.
- 50–60Hz input frequency.
- Multiple DC output voltage rails.
- +12V output rated at 18A.
- -12V output rated at 0.3A.
- +5.08V output rated at 16A.
- +3.3V output rated at 17A.
- +5.08V standby output rated at 2.5A.
- +3.3V and +5.08V combined output up to 120W.
- +3.3V, +5.08V, and +12V combined output up to 264W.
- +24-pin ATX main motherboard connector.
Specifications:
| Parameter | Value |
|---|---|
| Product Type | ATX Computer Power Supply |
| Manufacturer | FSP Group Inc. |
| Model | FSP280-50EPA |
| LC P/N | 36200503 |
| LI P/N | SP50A33605 |
| FRU No. | 54Y8895 |
| Revision | 02 |
| Maximum Output Power | 280W |
| AC Input Voltage | 100–240VAC |
| AC Input Current | 8A–4A |
| Input Frequency | 50–60Hz |
| +12V Output | 18A |
| -12V Output | 0.3A |
| +5.08V Output | 16A |
| +3.3V Output | 17A |
| +5.08V Standby Output | 2.5A |
| +3.3V + +5.08V Combined Power | 120W Max. |
| +3.3V + +5.08V + +12V Combined Power | 264W Max. |
| -12V + +5.08Vsb Combined Power | 16.3W Max. |
| Main Connector | 24-Pin ATX |
| Dimensions | 150 × 140 × 85.5mm |
| Weight | 1355g |
| Condition | USED LIKE NEW |
| Compliance Markings | UL, CE, CB, CCC, FCC, RoHS |
Applications:
- Compatible desktop computer systems.
- Lenovo desktop PC power replacement.
- ATX-compatible computer systems.
- Computer repair and maintenance.
- Replacement of a compatible FSP280-50EPA power supply.
- Electronics and computer hardware servicing.
Package Include:
1x Lenovo FSP280-50EPA 54Y8895 PSU Power Supply 280W (USED LIKE NEW)
