The LHT00SU1 Virtual Oscilloscope Logic Analyzer I2C SPI CAN UART is a USB-connected multifunction test and measurement device that combines an oscilloscope, logic analyzer, data logger, voltmeter, frequency meter, PWM controller, frequency generator, I2C controller, and pulse/edge counter in a compact unit. It provides 8 digital channels for analyzing digital signals and 2 analog input channels with 1 selectable sampling channel for analog measurements.

Features:

• Multifunction USB-based oscilloscope and logic analyzer.
• 8-channel digital logic analyzer.
• 2 analog input channels with 1 selectable sampling channel.
• 16MHz maximum sampling frequency.
• 3MHz maximum analog bandwidth.
• -10V to +10V analog input voltage range.
• 78mV analog sensitivity.
• 256-level maximum vertical resolution.

Specifications:

Applications:

• Embedded system debugging.
• Microcontroller development.
• Arduino and development-board projects.
• SPI communication analysis.
• I2C communication analysis.
• UART serial communication debugging.
• CAN bus signal analysis.
• Digital circuit troubleshooting.
• PWM signal testing.
• Frequency measurement.
• Pulse and edge measurement.
• Mixed analog and digital signal analysis.
• Electronic circuit development and testing.
• Communication protocol development.
• Educational electronics laboratories.

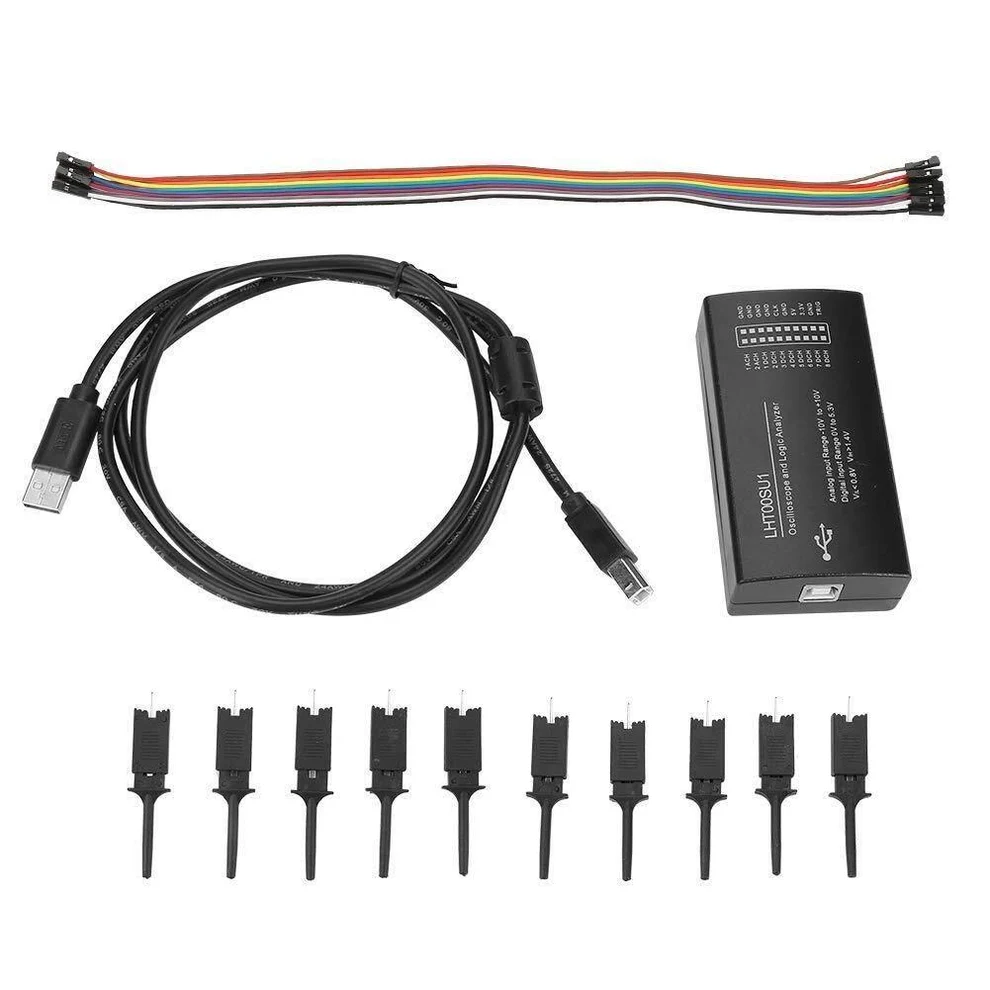

Package Include:

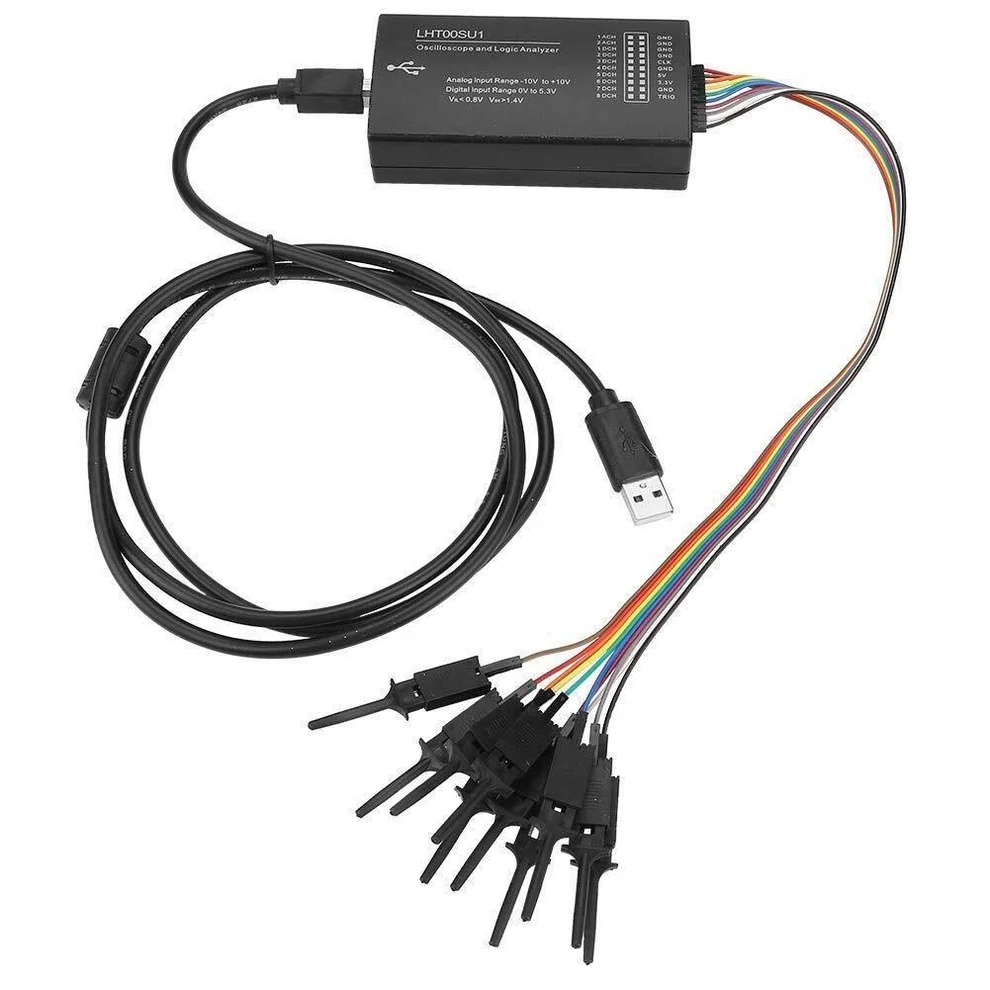

• 1x LHT00SU1 Virtual Oscilloscope Logic Analyzer.
• 1x 10-Pin Test Clamp Cable.
• 10x Test Clips.
• 1x USB Connection Cable.
