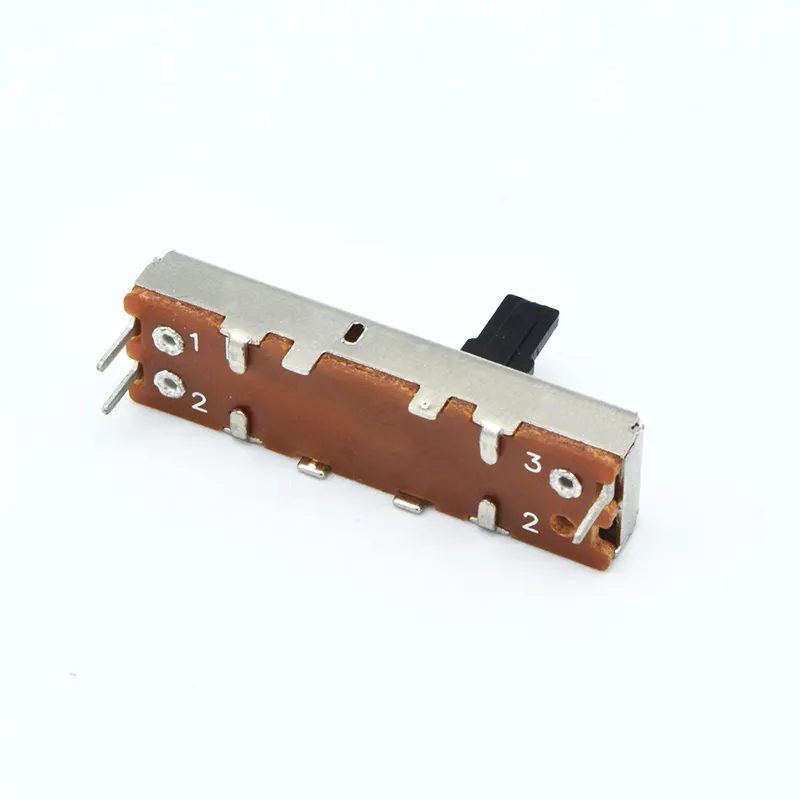

Linear Slide Potentiometer 20KΩ Travel Distance 20mm
Compact PCB-mount linear slide potentiometer 20kΩ linear taper and 20mm travel — smooth, precise slider for audio controls, calibration and position sensing.
30.00 EGP
In stockSKU 3496300073658
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Linear Slide Potentiometer 20KΩ Travel Distance 20mm
A compact and reliable linear potentiometer offering precise, linear resistance adjustment over a 20 mm travel with easy PCB mounting and an ergonomic slider control.
Features
- Resistance: 20 kΩ linear taper.
- Travel Distance: 20 mm stroke.
- Form Factor: PCB-mountable through-hole design with protruding pins.
- Standard Tolerance: Typically 20% resistance tolerance.
Specifications
| Potentiometer | Slide |
| Resistance | 20KΩ |
| Power Rating | 0.1W |
| Electrical Taper | Linear |
| Element Material | Carbon |
| Termination Style | PC Pin |
| Shaft Length | 10mm |
| Travel Length | 20mm |
| Actuator Type | Lever |
| Tolerance | ±20% |
Applications
- Audio sliders and manual level controls in DIY and custom audio equipment.
- Adjustable voltage dividers for trim or calibration in test instruments.
- User interface control in compact or space-limited devices.
- Feedback or position sensing in hobbyist robotics or automation systems.
Package Contents
- 1x Linear Slide Potentiometer 20KΩ with 20mm Travel Distance.
| Weight | 5 g |
|---|---|
| Dimensions | 35 × 10 × 20 mm |
