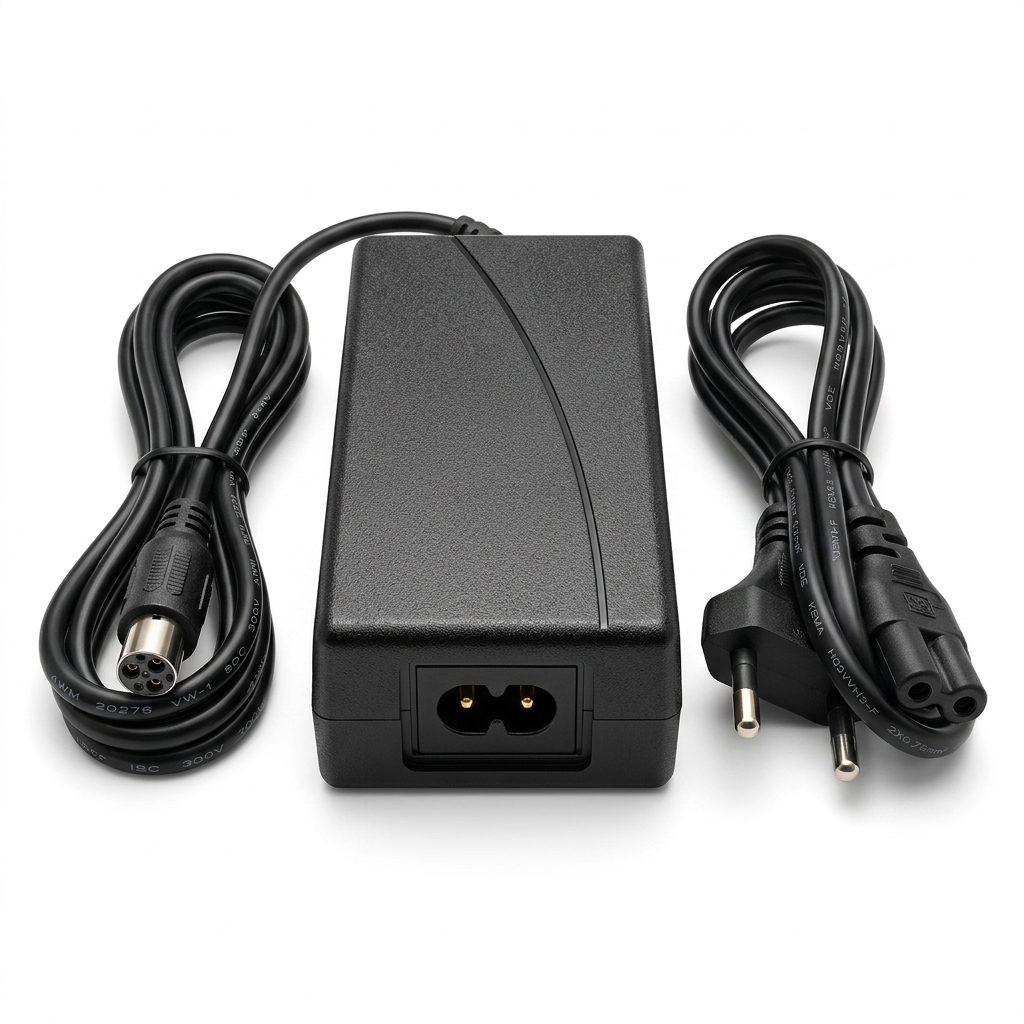

Lithium-ion Battery Charger 10S 42V 2A With GX16 3-pin Connector
The Lithium-ion Battery Charger 10S 42V 2A With GX16 3-pin Connector is designed specifically for charging 10S lithium-ion battery packs with a nominal voltage of 36V and a full-charge voltage of 42V. It utilizes a constant current/constant voltage (CC/CV) charging profile to ensure safe, stable, and efficient charging while helping to maximize battery life. A 42V output is the standard full-charge voltage for 10-cell lithium-ion battery packs.
Equipped with a GX16 3-pin aviation connector, this charger provides a secure and reliable connection that resists accidental disconnection during charging. It is commonly used for electric scooters, e-bikes, portable power systems, robotics, and other battery-powered equipment that requires a 42V charging solution. The charger includes built-in protection against over-voltage, over-current, short circuit, and reverse polarity for dependable operation.
Features:
- Designed for 10S lithium-ion battery packs.
- Constant current and constant voltage charging.
- GX16 3-pin aviation connector for secure connection.
- High charging efficiency.
- Automatic charging termination.

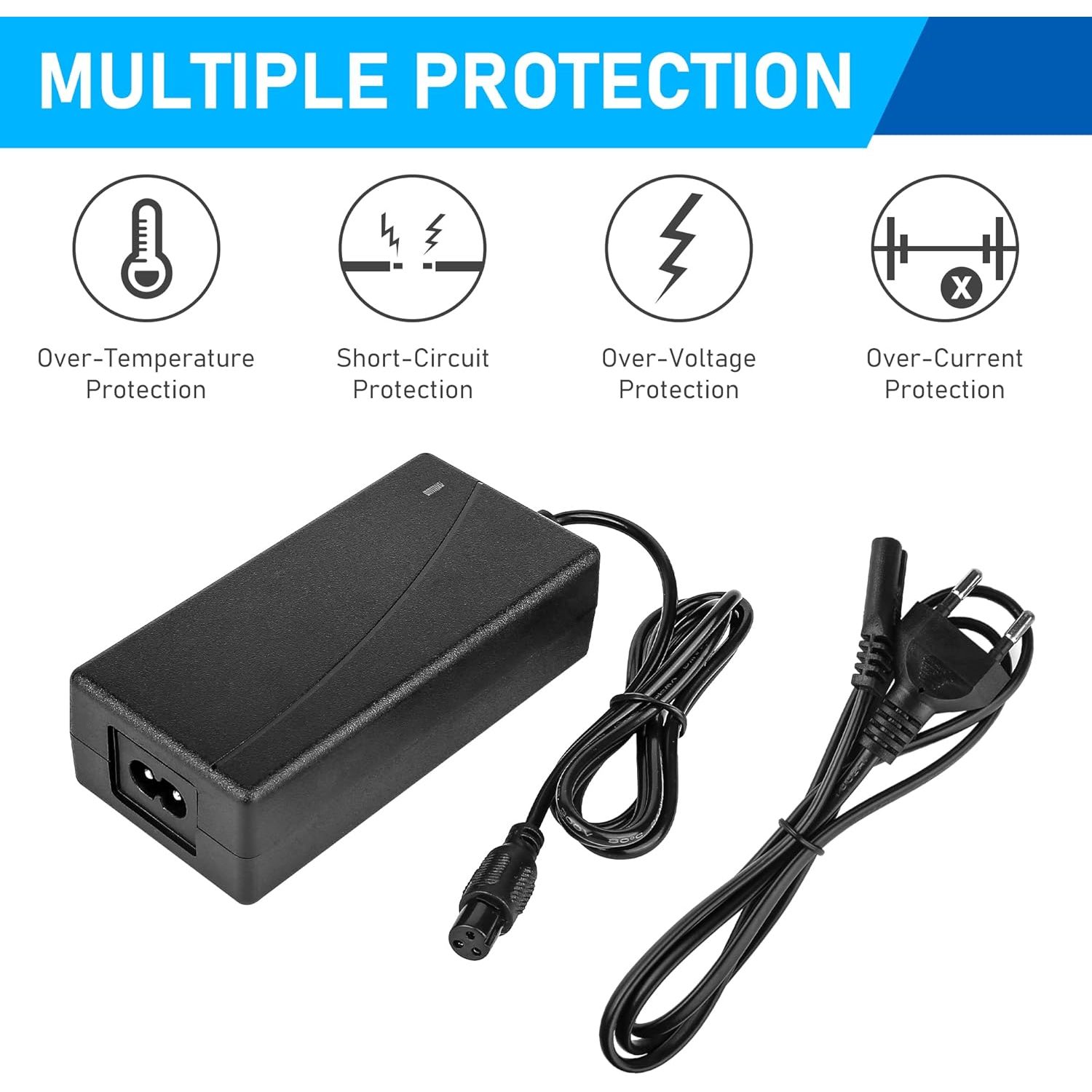

- Built-in over-voltage protection.
- Built-in over-current protection.
- Short-circuit protection.
- Reverse polarity protection.
- Durable insulated enclosure.

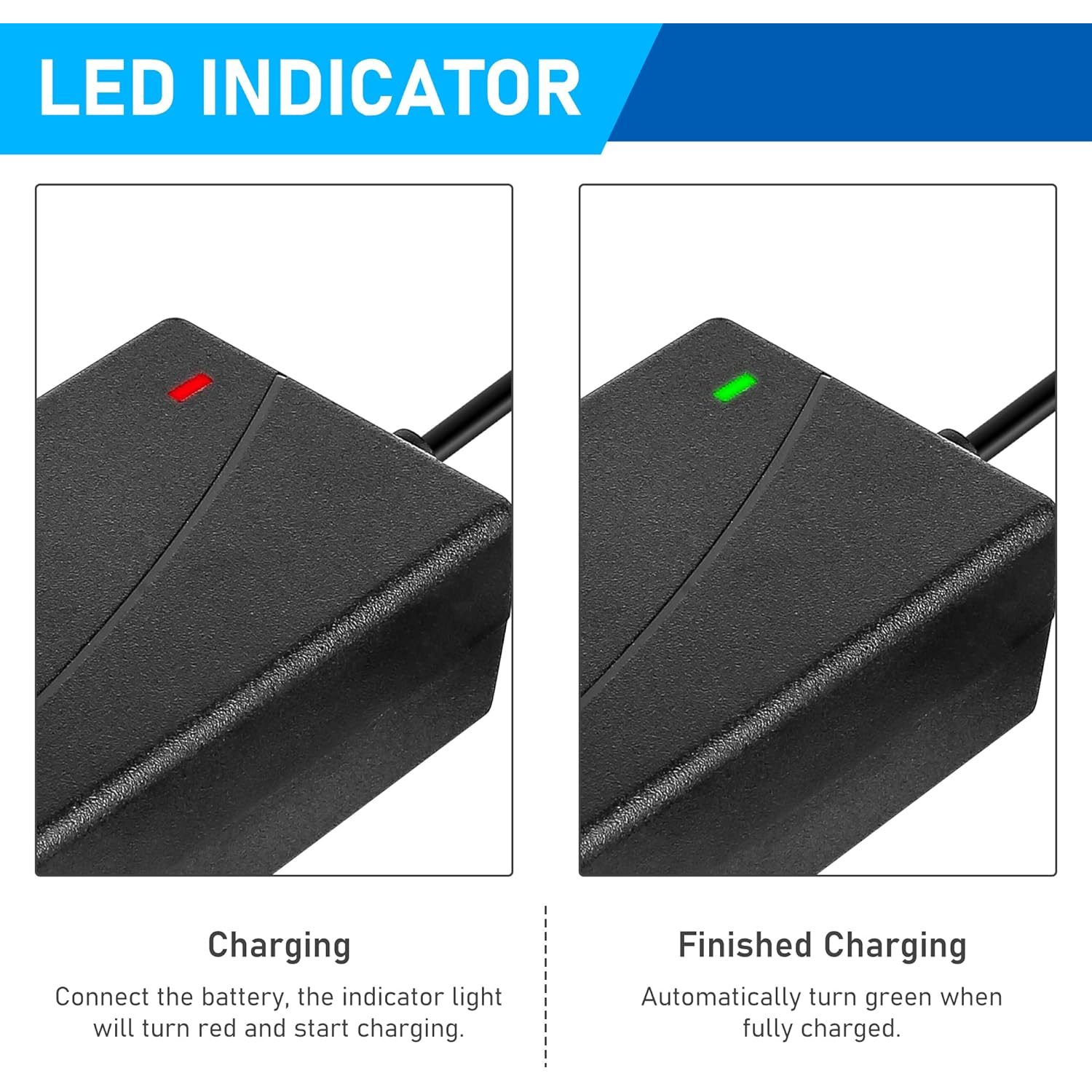

- LED charging status indication.
- Plug-and-play operation.
Specifications:
| Specification | Value |
|---|---|
| Battery Type | Lithium-ion |
| Battery Configuration | 10S |
| Nominal Battery Voltage | 36V |
| Charging Voltage | 42V DC |
| Output Current | 2A |
| Output Power | 84W |
| Charging Connector | GX16 3-pin Aviation Connector |
| AC Input Voltage | 100–240V AC |
| Input Frequency | 50/60Hz |
| Connector Cable Length | 70cm |
| Power Plug Length | 90cm |
| Adapter Dimensions | 32x55x126mm |
| LED Indicator | Yes |
| Charging Method | CC/CV (Constant Current / Constant Voltage) |
| AC Input Connector | IEC C8 |
| Housing Type | Desktop Plastic Enclosure |
Pinout:
| Pin | Description |
|---|---|
| Pin 1 | Battery Positive (+) |
| Pin 2 | Battery Negative (-) |
| Pin 3 | Auxiliary / Detection (connector assignment may vary depending on the battery pack manufacturer) |
Applications:
- Electric scooters.
- Electric bicycles.
- Portable power stations.
- Robotics.
- Battery-powered tools.
- Medical equipment.
- DIY lithium battery packs.
- Backup power systems.
- Industrial portable equipment.
- Energy storage projects.
Package Includes:
- 1 × Lithium-ion Battery Charger 10S 42V 2A With GX16 3-pin Connector.
- 1 × Power Cable.
