LM1084IT-5.0/NOPB 5V Positive Fixed Voltage Regulator TO-220
The LM1084IT-5.0/NOPB is a high-performance, low-dropout (LDO) positive voltage regulator. This component is part of the LM1084 series, which is renowned for delivering robust and reliable power management solutions. Designed to provide a fixed 5V output with a substantial 5A of load current, it meets the needs of demanding applications where a stable and precise voltage supply is critical.
Features:
- Fixed 5V output voltage.
- High output current up to 5A.
- Low dropout voltage (~1.3V–1.5V).
- Excellent line and load regulation.
- Built-in current limiting protection.
- Thermal shutdown protection.
Specifications:
| Parameter | Value |
|---|---|
| Output Voltage | 5VDC |
| Output Type | Fixed |
| Maximum Output Current | 5A |
| Maximum Input Voltage | 25VDC (29VDC Absolute Maximum) |
| Dropout Voltage (Max) | 1.5V @ 5A |
| Line Regulation | 0.015% typ. (10mV) |
| Load Regulation | 0.1% typ. (20mV) |
| Quiescent Current (Iq) | 5mA typ. / 10mA max. |
| Power Supply Ripple Rejection (PSRR) | 68dB @ 120Hz |
| Protection Features | Over Current, Over Temperature, ESD Protection |
| Operating Junction Temperature (Tj) | -40°C to +125°C |
| Power Dissipation (Max) | 30W |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |

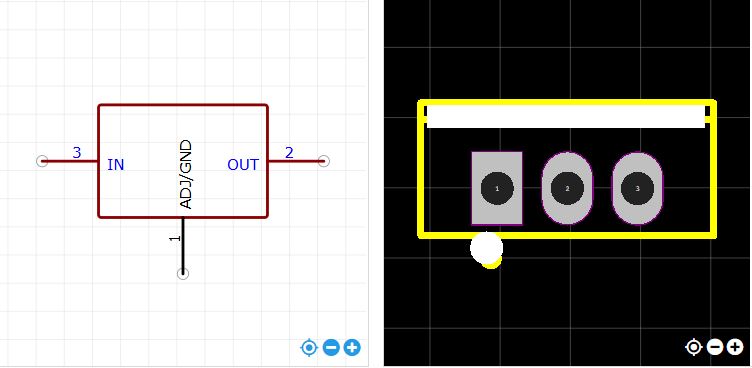

Pin Configuration:
Footprint:
Applications:
- Power supply regulation.
- Post-regulation for switching converters.
- Embedded systems and microcontroller power.
- Industrial control circuits.
- Battery-powered systems.
- High-current 5V rails.
Package Include:
1x LM1084IT-5.0/NOPB 5V Positive Fixed Voltage Regulators TO-220.
