Logic Analyzer 8 Channel 24MHz
The Logic Analyzer 8 Channel 24MHz is a compact, high-performance tool designed for signal analysis in digital electronics. Equipped with 8 channels, this logic analyzer can capture and analyze multiple signals simultaneously, making it perfect for debugging and testing a wide range of digital systems. With a maximum sampling rate of 24MHz, it provides accurate and reliable analysis of digital signals such as UART, SPI, and I2C.
Features:

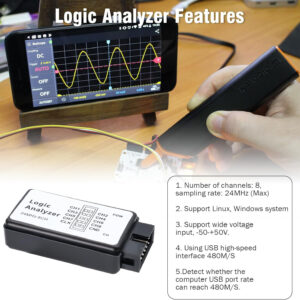

- 8 channels can gather at the same time, to signal analysis, such as UART
- The logic for each channel sampling speeds up to 24M/s
- General applications around 10M, enough to cope with a variety of occasions
- Large quantity sample collection, strong
- Equipped with overpressure protection, for safe working

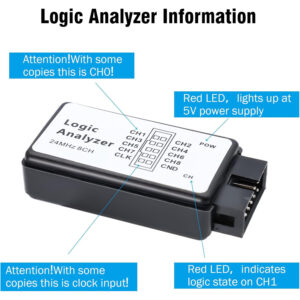

- All the way logic pen indication: use a small light to indicate the level of CH1, intuitive and clear
- Input Characteristics: the capacitive reactance is 5PF, and the impedance is 100K ohms. This is a more reasonable impedance that we use after weighing, and it is only a mainstream parameter.

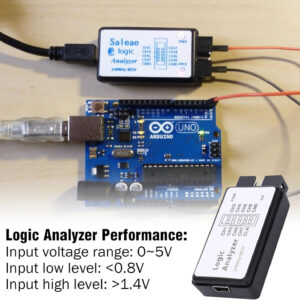

- VIH (input can recognize high level): higher than 1.6V is recognized as a high level. It can be used to stably collect signals at 5V, 3.3V, 2.5V, and 2.0V levels. Also works in 1.8V level systems, but not very recommended
- The data is uploaded in real-time, the host computer adopts compressed storage, and the maximum acquisition depth is 10T, which far exceeds the actual demand

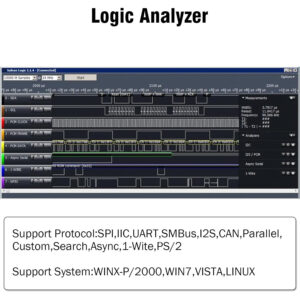

- Perfect support for various trigger modes, rising edge, falling edge, high-level trigger, low-level trigger, and the combination of the above four basic methods to form a complex trigger
- Sampling speed can be set to: 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz
- Data upload in real-time, with depth collection, is far from a practical need
- Support WIN7(32 and 64), 2K, XP, LINUX
Specifications:
- 8-channels
- Sampling rate up to 24MHz, configurable down to 20kHz
- 5.25V maximum voltage input
- 2.0V minimum logic-high
- 0.8V maximum logic-low
- Input impedance > 100kΩ, 5pF
- USB power supply
- USB Mini USB
- Cross-platform support: Windows, Mac OS X, Linux, Android, etc.

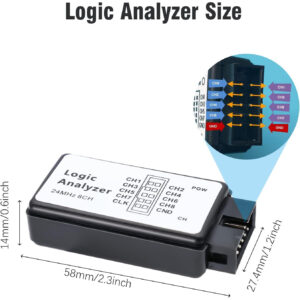

- Dimensions: 54.7 x 27.4 x 14.1 mm
Applications:
- Signal analysis for digital communication protocols (UART, SPI, I2C).
- Debugging and troubleshooting embedded systems.
- Educational tools for learning digital electronics.
- Prototyping and development in electronics.
- General-purpose digital signal analysis in various projects.
Package List:
- 1 x USB Logic Analyzer – 24MHZ/8-Channel
- 10 x Female-Female Du Pont/Jumper Wires
- 1 x Mini USB to USB Cable
