LUXONIS OAK-D-Lite Camera A00483
The Luxonis OAK-D-Lite Camera A00483 is a high-performance spatial AI camera designed to provide affordable depth perception and on-device neural processing for robotics, machine vision, and embedded systems. The camera integrates stereo depth sensing with a high resolution color camera and a powerful RVC2 vision-centric processing architecture, enabling real-time stereo depth mapping, AI inferencing, and advanced computer vision workflows without reliance on external compute resources.
Features:
- 4 TOPS processing power with Myriad X VPU for on-device AI inference.
- 13MP RGB camera (4208×3120) with auto-focus (8cm to infinity).
- Dual 480P (640×480) grayscale stereo cameras for depth perception.
- Supports H.264/H.265/MJPEG encoding at 4K/30FPS or 1080P/60FPS.

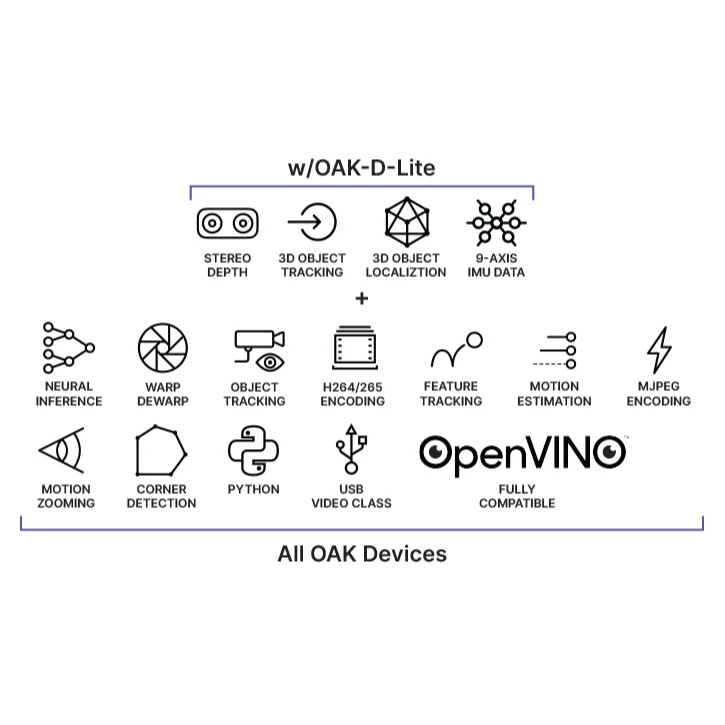

- Advanced computer vision: warping, resizing, edge detection, feature tracking.
- 2D/3D object tracking and stereo depth with RGB alignment.

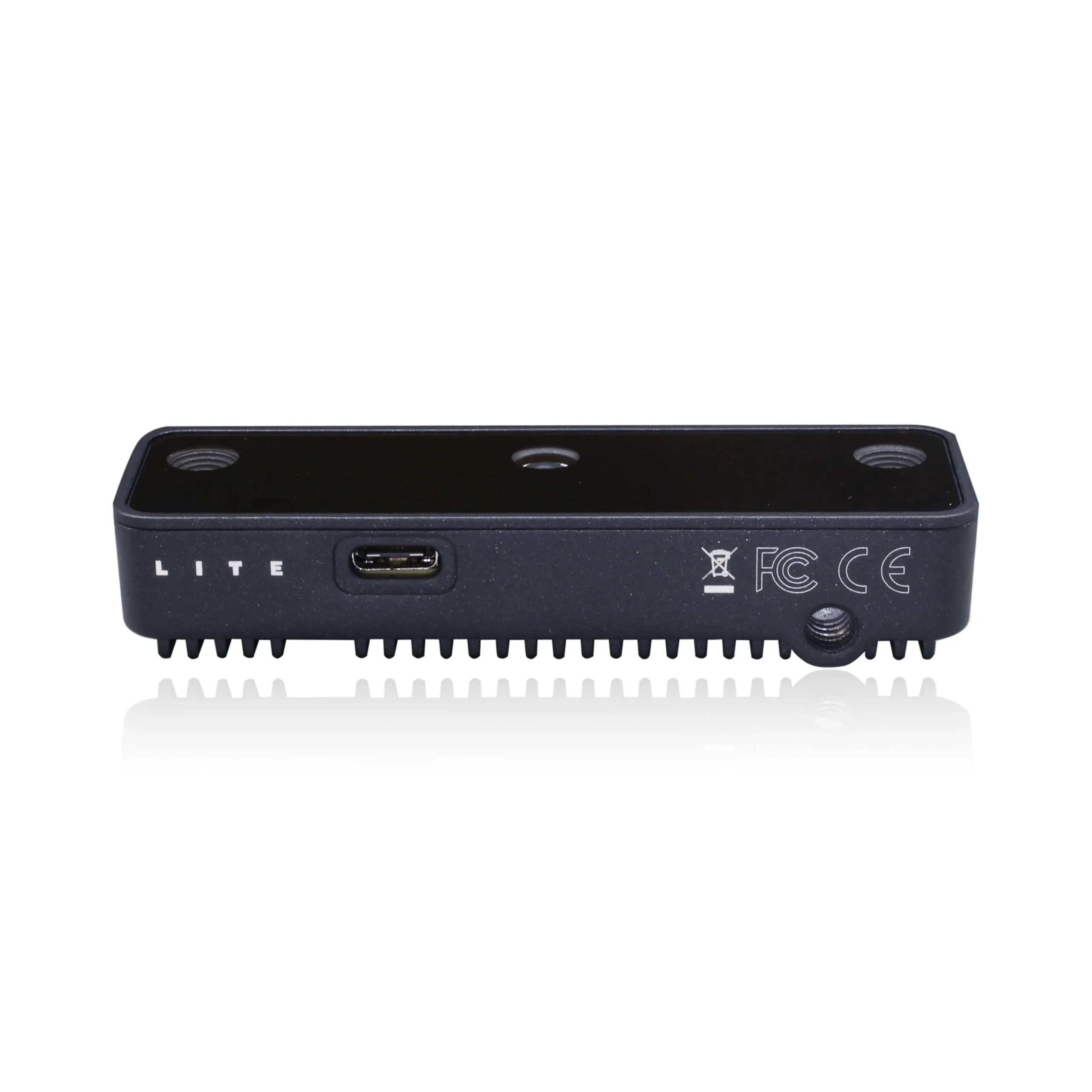

- USB-C interface (USB3 5Gbps) and BMI270 6-axis IMU.
Specifications:
| Parameter | Value |
|---|---|
| Processing Power | 4TOPS |
| AI Processing | 1.4TOPS |
| Color Sensor | IMX214 |
| Color Resolution | 4208×3120 |
| Color DFOV | 81° |
| Color Max Framerate | 35FPS |
| Stereo Sensor | OV7251 |
| Stereo Resolution | 640×480 |
| Stereo DFOV | 86° |
| Stereo Max Framerate | 120FPS |
| Baseline | 75mm |
| Depth Range | 40cm-8m |
| Connectivity | USB3.2Gen15Gbps |
| Power Consumption | Up to5W |
| Operating Temperature | -20°Cto50°C |
| Dimensions | 91x28x17.5mm |
Configuration:
Applications:
- Robotic navigation and obstacle avoidance in autonomous systems.
- 3D environmental mapping and simultaneous localization and mapping (SLAM).
- Object detection, recognition, and real-time tracking in industrial automation.
- Remote monitoring and live video streaming for security purposes.
- Integration into drones for aerial surveying and vibration-resistant operations.
- Development of AI-powered vision systems in research and prototyping.
Package Include:
1x OAK-D Lite Camera
