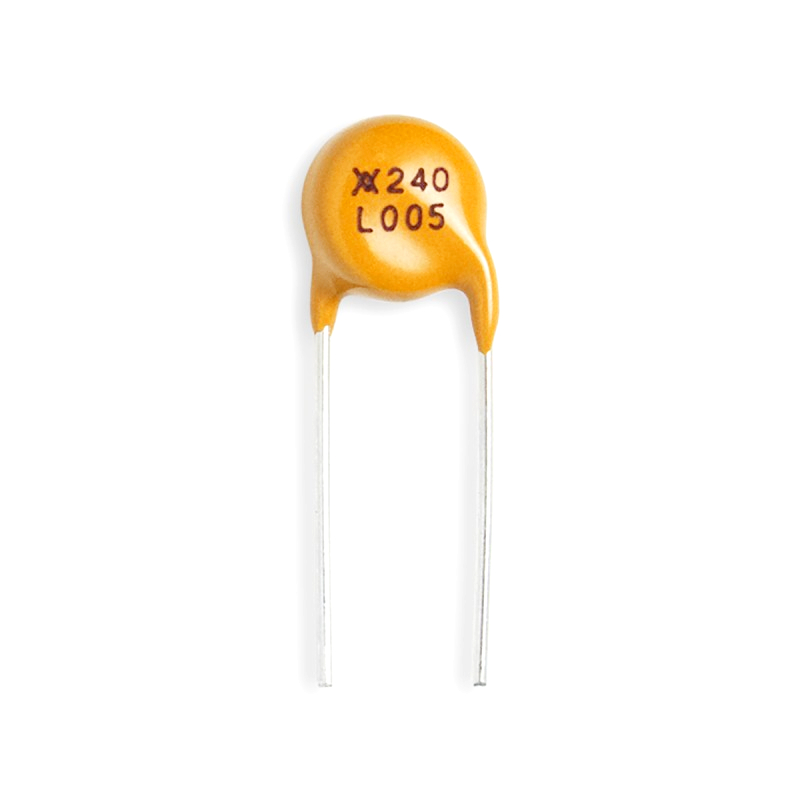

LVR005 PTC Resettable Fuse 265V 50mA Through Hole
LVR005 is a through-hole, line-voltage-rated PPTC resettable fuse (50 mA) , 240V protection, auto-reset.
10.00 EGP
In stockSKU 3496300124367
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
LVR005 PTC Resettable Fuse 265V 50mA Through Hole
The PolySwitch line-voltage-rated (LVR) devices help protect electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC, VDC and 240VAC, VDC for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults.
Features
- Current ratings of 50mA
- Line voltage rating of 265VAC, VDC
- Fast time-to-trip
- Low resistance
Electrical Characteristics
| Parameter | Symbol | Value | Units |
|---|---|---|---|
| Hold Current | IH | 0.05 | A |
| Trip Current | IT | 0.12 | A |
| Maximum Operating Voltage | VMAX (Op) | 240 | V |
| Maximum Interrupt Voltage | VMAX (Int) | 265 | V |
| Maximum Interrupt Current | IMAX | 1 | A |
| Power Dissipation (typ) | PD | 0.9 | W |
| Maximum Time-to-Trip | — | 10 | s |
| Resistance (min) | RMIN | 18.5 | Ω |
| Resistance (max) | RMAX | 31.0 | Ω |
| Post-Trip Resistance | R1MAX | 65.0 | Ω |
| Lead Size | — | 0.51 mm² / 24 AWG |
Physical Specifications
| Characteristic | Detail |
|---|---|
| Body Material | Flame-retardant epoxy polymer (UL 94V-0) |
| Lead Material | Tin-plated copper, 24 AWG (Ø 0.51 mm) |
Dimensions (LVR005)
| Parameter | Value |
|---|---|
| (A) | 6.8 mm |
| (B) | 10 mm |
| (C) | 5.3 mm |
| (D) | 7 mm |
| (E) | 3 mm |
Applications
- Electromagnetic loads
- Game machines
- Industrial controls
- Lighting ballasts
- Loudspeakers
- Medical equipment
- Motors, fans and blowers
