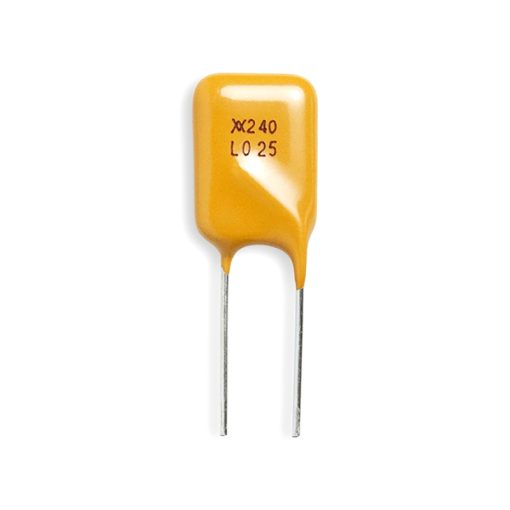

LVR025 PTC Resettable Fuse 265V 250mA Through Hole
The LVR025 is a 265 VAC/VDC through-hole resettable PTC fuse, 0.25 A hold, 0.56 A trip, auto-reset, low resistance for reliable circuit protection.
10.00 EGP
Buy NowLVR025 PTC Resettable Fuse 265V 250mA Through Hole
The PolySwitch line-voltage-rated (LVR) devices help protect electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions. The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices includes components that are rated for line voltages of 120VAC, VDC and 240VAC, VDC for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults.
Features
- Current rating of 250mA
- Line voltage rating of 240VAC, VDC
- Fast time-to-trip
- Low resistance
Electrical Characteristics
| Parameter | Value |
|---|---|
| Hold Current, IH | 0.25 A |
| Trip Current, IT | 0.56 A |
| Maximum Continuous Voltage, VMAX (Op) | 240 VAC/VDC |
| Maximum Interrupt Voltage, VMAX (Int) | 265 VAC/VDC |
| Maximum Interrupt Current, IMAX | 3.5 A |
| Power Dissipation (tripped), PD | 1.5 W @ 20 °C |
| Maximum Time-to-Trip | 18.5 s @ 1 A |
| Resistance (cold) RMIN–RMAX | 1.3 Ω – 2.1 Ω |
| Resistance 1 h post-trip, R1MAX | 3.8 Ω |
| Lead Size | 0.64 mm² (22 AWG) |
Physical Specifications
| Parameter | Details |
|---|---|
| Body Material | Flame‑retardant epoxy polymer, UL 94V‑0 |
| Lead Material | Tin‑plated copper, 22 AWG (ø 0.64 mm) |
| Solder Heat Withstand | 10 s at 260 °C ± 5 °C |
Dimensions (LVR025)
| Parameter | Value |
|---|---|
| (A) | 9 mm |
| (B) | 17 mm |
| (C) | 5.2 mm |
| (D) | 6.5 mm |
| (E) | 2.7 mm |
Applications
- Electromagnetic loads
- Game machines
- Industrial controls
- Lighting ballasts
- Loudspeakers
- Medical equipment
- Motors, fans and blowers
