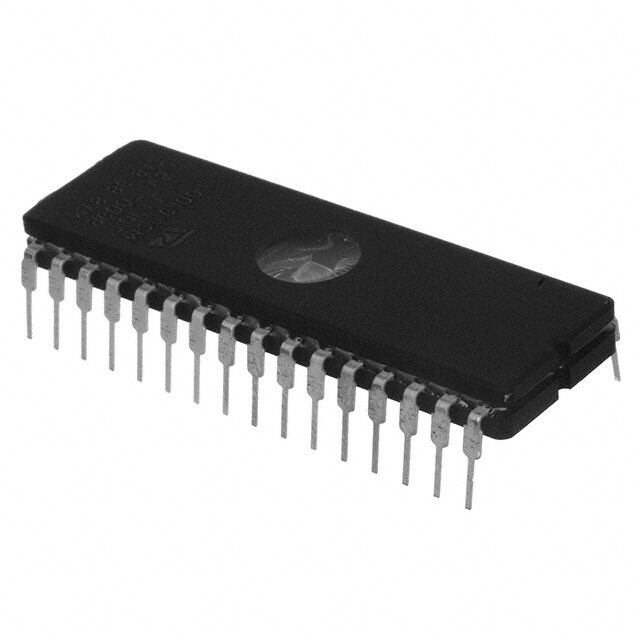

M27C2001-10F1 2Mbit (256K x 8) 100ns UV EPROM IC DIP-32
The M27C2001-10F1 2Mbit (256K x 8) 100ns UV EPROM IC DIP-32 is a high-speed ultraviolet-erasable programmable read-only memory device designed for non-volatile program and data storage in microprocessor-based and embedded electronic systems. It provides a 2Mbit memory capacity organized as 262,144 words of 8 bits, equivalent to 256K x 8, with a parallel memory interface.
Features:
- 2Mbit UV-erasable EPROM memory.
- 256K x 8-bit memory organization.
- 262,144 x 8-bit memory array.
- 100ns maximum access time for the
-10speed grade. - 5V±10% supply voltage during read operation.
- Parallel memory interface.
- 18 address inputs from A0 to A17.
- 8 data outputs from Q0 to Q7.
- Chip Enable and Output Enable control input
Specifications:
| Parameter | Value |
|---|---|
| Part Number | M27C2001-10F1 |
| Memory Type | UV EPROM |
| Memory Capacity | 2Mbit |
| Memory Organization | 256K x 8 |
| Memory Array | 262,144 x 8bit |
| Access Time | 100ns |
| Supply Voltage | 5V±10% |
| Programming Supply Voltage | 6.25V±0.25V |
| Programming Voltage | 12.75V±0.25V |
| Address Inputs | A0–A17 |
| Data Outputs | Q0–Q7 |
| Control Inputs | E, G |
| Program Input | P |
| Active Supply Current | 30mA |
| CMOS Standby Current | 100µA |
| Input Leakage Current | ±10µA |
| Output Leakage Current | ±10µA |
| Input Low Voltage | -0.3V to 0.8V |
| Input High Voltage | 2V to VCC+1V |
| Output Low Voltage | 0.4V max. |
| Output High Voltage | 2.4V min. TTL. |
| Package | FDIP32W |
| Package Type | 32-Pin Ceramic Frit-Seal DIP with Window |
| Pin Count | 32 |
| Pin Pitch | 2.54mm |
| Temperature Range | 0°C to 70°C |
| UV Erasable | Yes |
| Mounting Type | Through Hole |

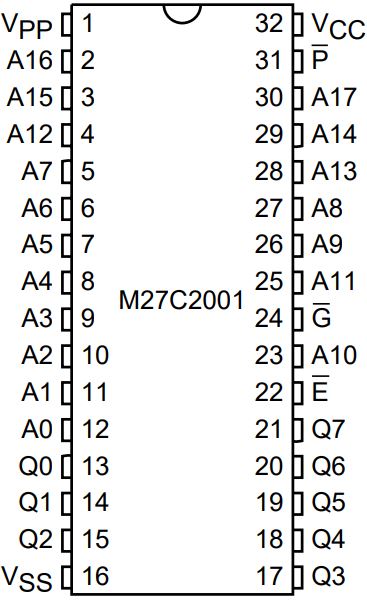

Pin Configuration:

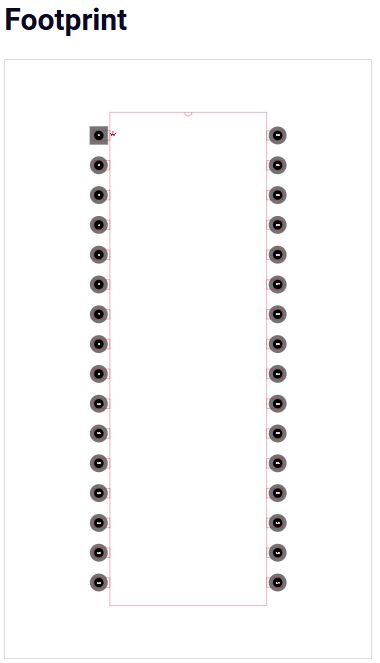

Footprint:

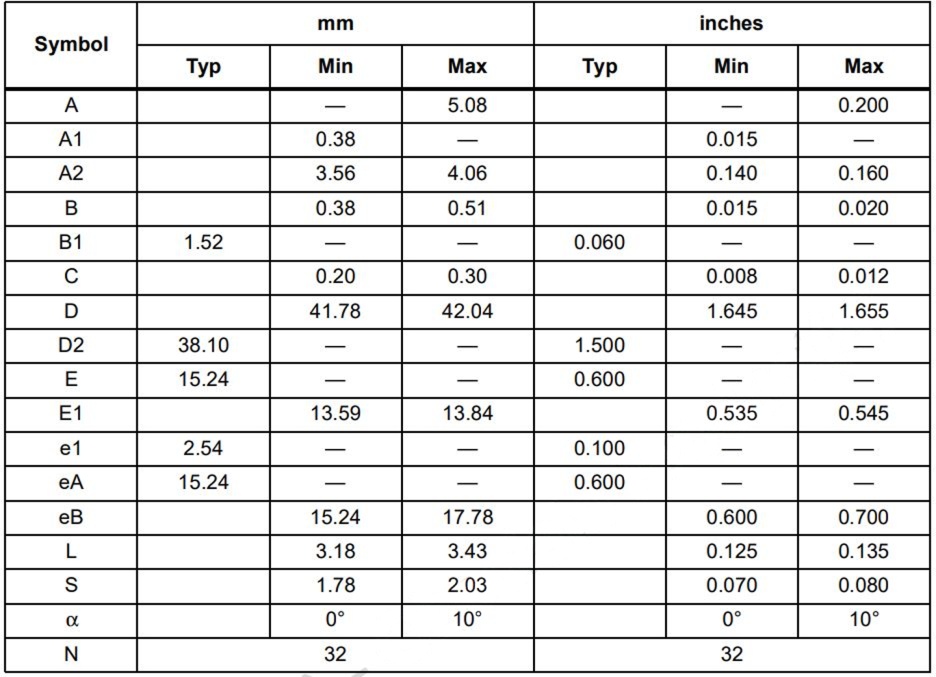

Applications:
- Microprocessor program memory.
- Embedded firmware storage.
- Legacy computer systems.
- Industrial control equipment.
- Electronic equipment repair and servicing.
- Development and prototyping systems.
- Legacy gaming and electronic equipment.
- Replacement of compatible 2Mbit UV EPROM devices.
- Systems requiring reprogrammable non-volatile parallel memory.
Package Include:
1x M27C2001-10F1 2Mbit (256K x 8) 100ns UV EPROM IC DIP-32
