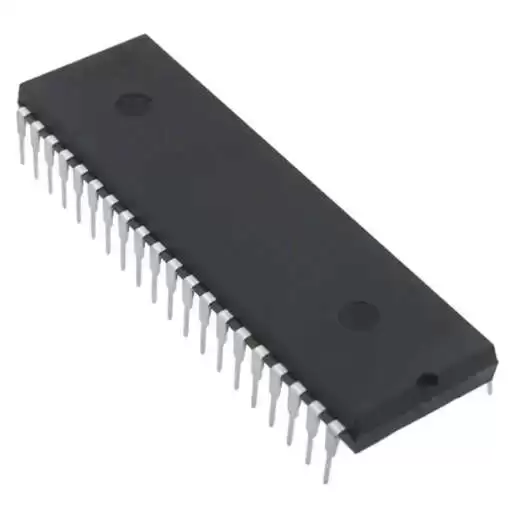

M82C55A-2 I/O Expander IC 40-DIP for Efficient Digital Control
The MSM82C55A-2 is a programmable universal I/O interface device which operates as high speed and on low power consumption due to 3m silicon gate CMOS technology. It is the best fit as an I/O port in a system which employs the 8-bit parallel processing MSM80C85AH CPU.

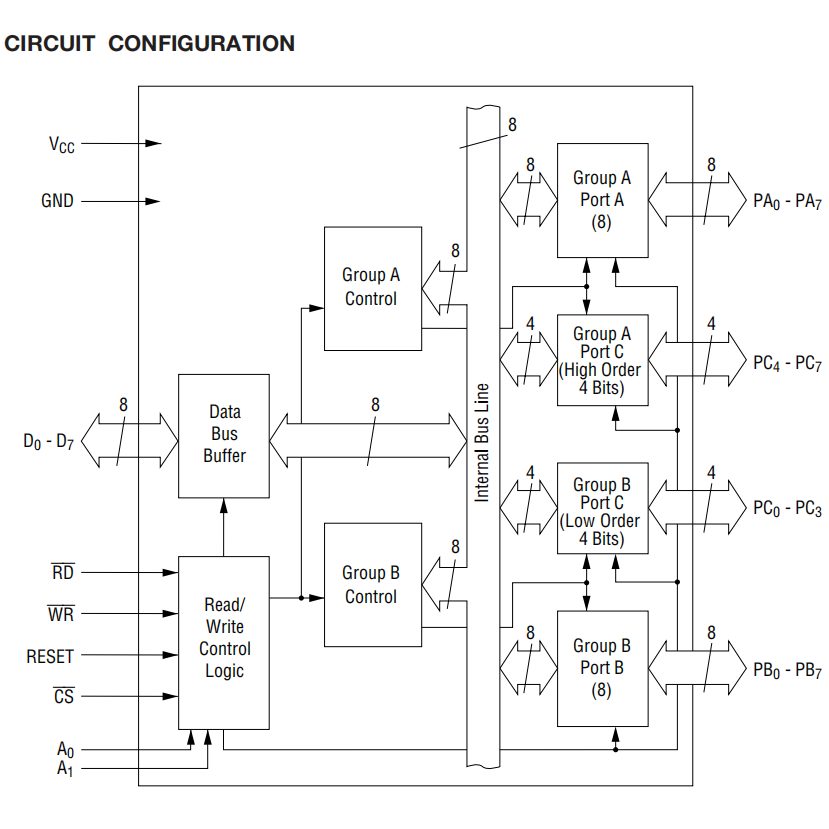

This device has 24-bit I/O pins equivalent to three 8-bit I/O ports and all inputs/outputs are TTL interface compatible.
Features:
- High speed and low power consumption due to 3m silicon gate CMOS technology
- 3 V to 6 V single power supply
- Full static operation
- Programmable 24-bit I/O ports
- Bidirectional bus operation (Port A)
- Bit set/reset function (Port C)
- TTL compatible
- Compatible with 8255A-5

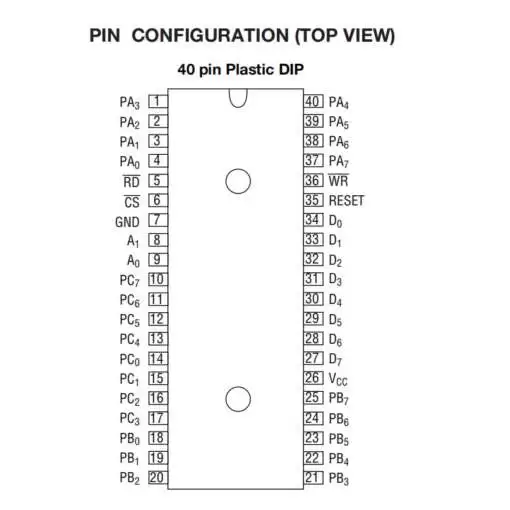

- 40-pin Plastic DIP (DIP40-P-600-2.54): (Product name: MSM82C55A-2RS)
Specifications:
| I/O port | 24 bits programmable |
| Supply voltage | 3-6V |
| Minimum operating temperature | – 40°C |
| Maximum operating temperature | + 85°C |
| Mounting type | Through hole |
| Packing style | 40-DIP |
