MAA725 Operational Amplifier TO-5
High-performance MAA725 instrumentation-grade op-amp in TO‑5 metal can, ±22 V supply, ultra-low input bias (~2 nA), 500 mW dissipation.
25.00 EGP
In stockSKU 3496300085163
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MAA725 Operational Amplifier TO-5
The MAA725, also sold as μA725 and LM725 equivalents, is a precision instrumentation operational amplifier in a rugged TO‑5 metal can (TO‑99‑8) package. It supports a wide supply range up to ±22 V with extremely low input bias current (~2 nA typical) and high open-loop gain (≈3×10⁶), offering outstanding performance for low-noise sensor applications and precision analog systems. The TO‑5 can provides excellent thermal stability and compatibility with vintage or replacement boards using the classic metal-flanged package.
Features
- Wide ±3 V to ±22 V supply voltage range.
- Ultra-low input bias current (~2 nA typical).
- High open-loop voltage gain (~3,000,000 V/V).
- Excellent common-mode rejection ratio (~120 dB).
- Low drift: ~0.6 µV/°C input offset drift.
- Hermetic TO‑5 (TO‑99‑8) metal can package for robust mechanical and thermal performance.
- Offset null capability and short-circuit protected outputs.
Specification
Absolute Maximum Ratings
| Parameter | Symbol | Limit | Unit |
|---|---|---|---|
| Supply Voltage | UB | ±3 to ±22 | V |
| Input Differential Voltage | UID | ±22 | |
| Input Voltage (MAA725, B, C) | UI | ±20 | |
| Voltage between Pins 1 & 7 or 8 & 7 | U1/7, U8/7 | ±0.5 | |
| Power Dissipation (Ta < 75 °C) | Ptot | 500 | mW |
| Operating Temperature | Ta | −55 to +125 | °C |
| Storage Temperature | Tstg | −65 to +150 |
Notes:
- Differential pulses up to 5 ms at 10% duty; for DC operation, the allowable differential input falls to ±5 V.
- For supply magnitude below ±22 V, reduce absolute input limits accordingly (e.g., at ±16 V supply, input limit is ±15 V; at ±5 V supply, input limit is ±4 V).
Electrical Characteristics (Ta = 25 °C, UB = ±15 V)
| Parameter | Symbol | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|
| Input Offset Voltage (RS ≤ 10 kΩ) |
UI0 | 0.5 | — | 1 | mV |
| Input Offset Current | II0 | 2 | — | 20 | nA |
| Input Bias Current | IB | 53 | — | 100 | |
| Input Noise Voltage (effective) Δf = 10 Hz–15 kHz, RS = 10 kΩ |
Uin ef | — | 1 | — | µV |
| Input Resistance f = 1 kHz |
RI | — | 1.5 | — | MΩ |
| Input Voltage Range | UI | ±13.5 | — | ±4 | V |
| Open-Loop Voltage Gain RL ≥ 2 kΩ, UO = ±10 V |
Au | 1·106 | — | 3·106 | |
| Common-Mode Rejection Ratio RS ≤ 10 kΩ |
CMR | 110 | — | 120 | dB |
| Supply Voltage Rejection RS ≤ 10 kΩ |
SVR | 4 | — | 10 | µV/V |
| Maximum Output Voltage Swing RS ≥ 10 kΩ |
UOPP max | ±12 | — | ±13.5 | V |
| Output Resistance f = 1 kHz |
RO | — | 150 | — | Ω |
| Supply Current | P | 85 | — | 105 | mW |

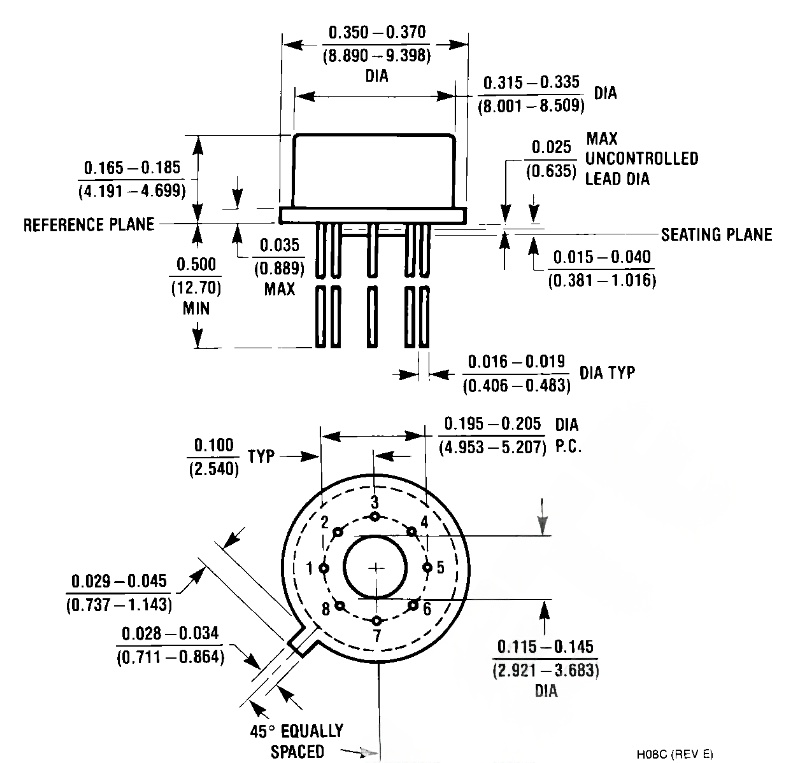

Dimensions
Applications
- Precision sensor instrumentation (strain gauges, thermocouples).
- Analog signal conditioning in industrial and aerospace systems.
- Vintage and legacy precision amplifier replacement.
- Low-drift, low-noise analog front ends.
Documents
| Weight | 2 g |
|---|---|
| Dimensions | 18 × 9 mm |
