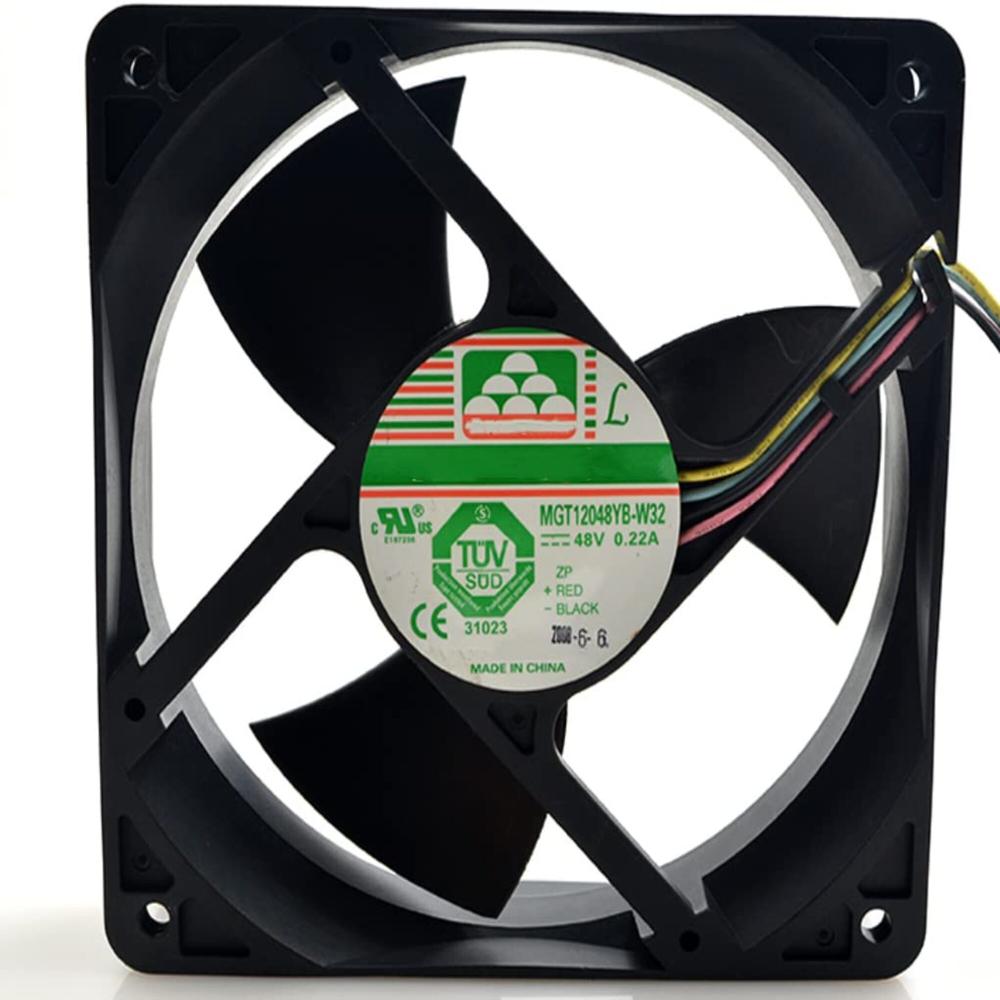

MAGIC MGT12048YB-W32 DC Fan 48V 0.22A 120x120x30mm (USED LIKE NEW)
The MAGIC MGT12048YB-W32 is a high-speed DC axial cooling fan designed for demanding thermal-management applications. It operates from a 48V DC supply and draws 0.22A, with a power consumption of approximately 10.56W. The fan uses a 120 × 120 × 32mm frame, ball bearings, and a 4-wire connection with PWM speed control, making it suitable for equipment requiring controlled and reliable airflow.
This fan is well suited for servers, telecommunications equipment, industrial automation systems, power supplies, control cabinets, and high-density electronic enclosures. Its high-speed operation can provide substantial airflow for removing heat from densely packed components. The MGT12048YB-W32 is listed with PWM control and locked-rotor sensing, allowing compatible equipment to monitor and control fan operation. The supplied unit is Used Like New, making it a practical replacement or retrofit cooling solution.
Features:
- MAGIC / Protechnic high-performance DC cooling fan.
- High-speed axial airflow design.
- Brushless DC motor.
- Double ball-bearing construction.
- 4-wire PWM speed control.
- Locked-rotor detection.
- Designed for continuous-duty cooling.
- Suitable for high-density electronic equipment.
- 120mm fan format.
- Used Like New condition.
Specifications:
| Attribute | Specification |
|---|---|
| Brand | MAGIC / Protechnic |
| Model | MGT12048YB-W32 |
| Fan Type | DC Axial Cooling Fan |
| Rated Voltage | 48V DC |
| Rated Current | 0.22A |
| Power Consumption | 10.56W |
| Dimensions | 120 × 120 × 30mm |
| Speed | Up to 4400 RPM |
| Airflow | Up to 147 CFM |
| Noise Level | 56.7 dBA |
| Bearing Type | Double Ball Bearing |
| Speed Control | PWM |
| Connection | 4-Wire |
| Condition | Used Like New |
Applications:
- Server cooling.
- Telecommunications equipment.
- Industrial automation.
- Power supply cooling.
- Control cabinets.
- Electronic equipment.
- Networking equipment.
- High-density server racks.
- Industrial machinery.
- Electronic enclosures.
- Replacement cooling systems.
Package Includes:
- 1 × MAGIC MGT12048YB-W32 DC Fan 48V 0.22A 120x120x30mm (Used Like New).
