MBR30100PT 30A 100V Schottky Diode Power Rectifier TO-247
MBR30100PT A high-current 30A 100V Schottky rectifier diode in TO-247 package with common cathode configuration, designed for high-efficiency power applications.
40.00 EGP
Buy NowMBR30100PT 30A 100V Schottky Diode Power Rectifier TO-247
The MBR30100PT is a high-performance Schottky barrier rectifier designed for demanding power applications requiring high current handling and low forward voltage drop. This device features a dual diode configuration with a common cathode structure, making it ideal for use in switching power supplies, DC-DC converters, and freewheeling applications.
Features:
- Dual Schottky diode with common cathode configuration.
- Low forward voltage drop for high efficiency.
- High current capability up to 30A.
- High surge current handling capability.
- Low leakage current characteristics.
Specifications:
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Maximum Ratings | |||
| Maximum Repetitive Peak Reverse Voltage | VRRM | 100 | V |
| Maximum RMS Voltage | VRMS | 70 | V |
| Maximum DC Blocking Voltage | VDC | 100 | V |
| Maximum Average Forward Current | IF(AV) | 30 | A |
| Peak Forward Surge Current (8.3ms single half sine-wave) | IFSM | 200 | A |
| Operating Junction Temperature Range | TJ | -55 to +150 | °C |
| Storage Temperature Range | TSTG | -55 to +150 | °C |
| Electrical Characteristics (TA=25°C unless noted) | |||
| Forward Drop Voltage (IF=15A, TJ=25°C) | VF | 0.85 (Max) | V |
| Forward Drop Voltage (IF=15A, TJ=125°C) | VF | 0.78 (Max) | V |
| Reverse Leakage Current @ VR (TJ=25°C) | IR | 100 (Max) | µA |
| Reverse Leakage Current @ VR (TJ=100°C) | IR | 15 (Max) | mA |
| Thermal Characteristics | |||
| Thermal Resistance, Junction to Case | RθJC | 1.1 (Typ) | °C/W |
| Thermal Resistance, Junction to Ambient | RθJA | 62.5 (Typ) | °C/W |

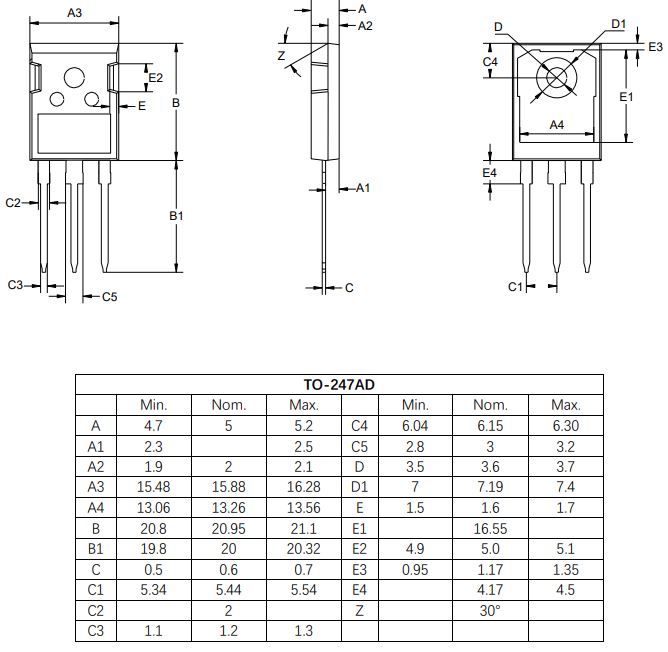

| Package & Mechanical Data | |||
| Package Type | – | TO-247AD | – |
| Mounting Type | – | Through Hole | – |
| Flammability Rating | – | UL 94V-0 | – |
Pin Configuration:
Applications:
- Switch mode power supplies and DC-DC converters.
- Freewheeling and polarity protection diodes.
- High-frequency inverters and motor control circuits.
- Battery chargers and solar power systems.
- Automotive and industrial power rectification.
- Low-voltage high-current power management.
Package Include:
1x MBR30100PT 30A 100V Schottky Diode Power Rectifier TO-247.
