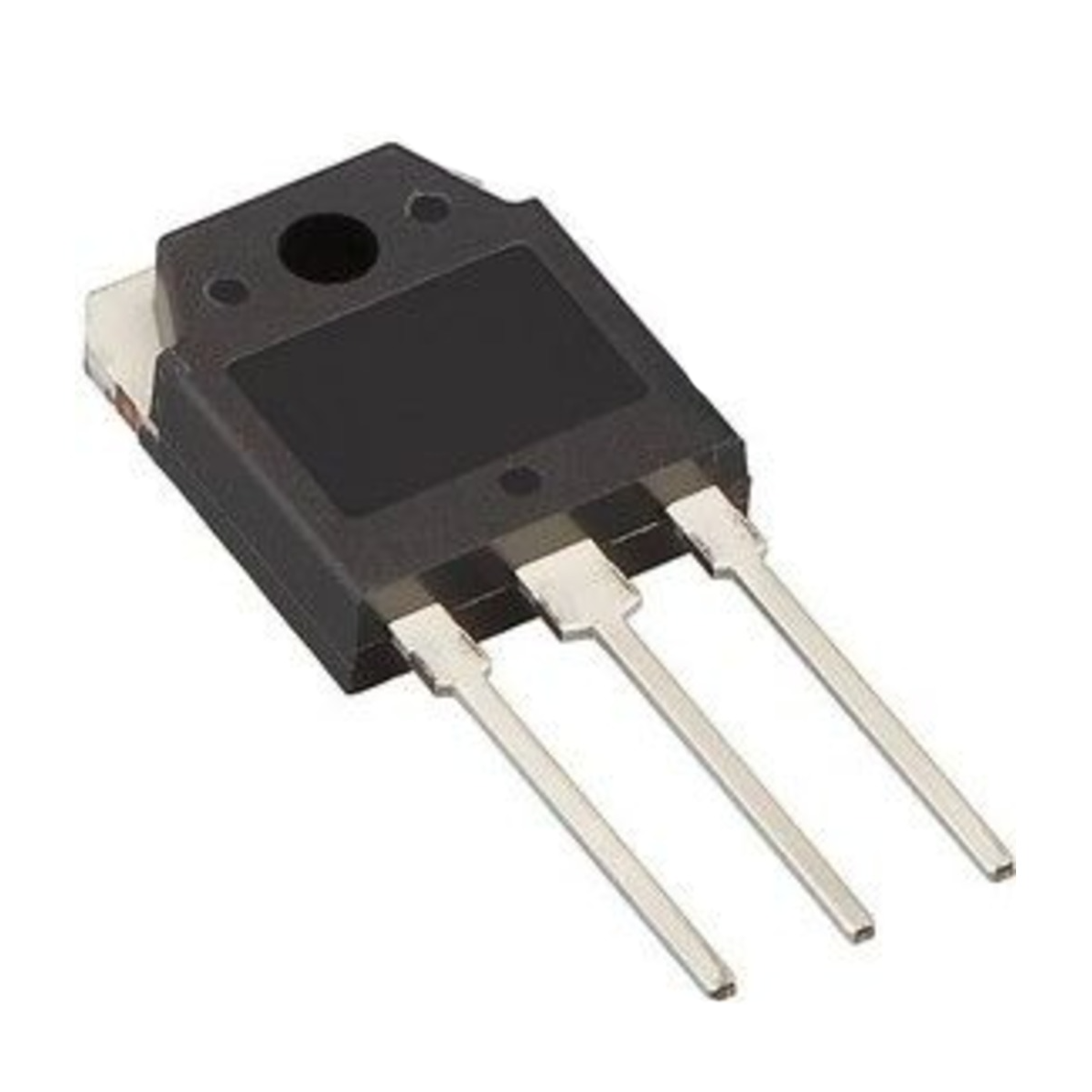

MBR6045 Schottky Diode 45V 60A TO-3P
MBR6045 is a High-current Schottky rectifier diode used for efficient power conversion in low-voltage, high-current applications.
60.00 EGP
In stockSKU 3496300149056
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MBR6045 Schottky Diode 45V 60A TO247
The MBR6045 is a high-performance Schottky barrier rectifier designed to handle heavy current loads with minimal power loss. Utilizing advanced Schottky technology, it provides a low forward voltage drop and fast switching characteristics, which significantly improves efficiency in power supply circuits. This makes it particularly suitable for applications where energy efficiency and thermal management are critical.
Encased in a TO-247 package, the MBR6045 is built for robust thermal performance and durability in demanding environments. It is commonly used in switching power supplies, inverters, and freewheeling diode configurations. Its high surge capability and reliable construction make it ideal for industrial, automotive, and renewable energy systems.
Features:
- Low forward voltage drop.
- High current handling capability.
- Fast switching speed.
- High efficiency operation.
- High surge current capability.
- Low power loss.
- Excellent thermal performance.
- Rugged and reliable design.
Specifications:
| Parameter | Conditions | Value | Unit |
|---|---|---|---|
| Peak repetitive reverse voltage / DC blocking voltage | – | 45 | V |
| RMS reverse voltage | – | 32 | V |
| Average rectified output current | TC = 125°C | 60 | A |
| Non‑repetitive peak forward surge current | 8.3ms half sine | 500 | A |
| Forward voltage drop (max) | IF = 30A, TC = 25°C | 0.62 | V |
| Forward voltage drop (max) | IF = 30A, TC = 125°C | 0.55 | V |
| Forward voltage drop (max) | IF = 60A, TC = 25°C | 0.75 | V |
| Peak reverse current (max) | Rated DC blocking voltage, TC = 25°C | 1.0 | mA |
| Peak reverse current (max) | Rated DC blocking voltage, TC = 100°C | 50 | mA |
| Typical junction capacitance | VR = 4V, 1MHz | 650 | pF |
| Typical thermal resistance (junction to case) | – | 1.0 | K/W |
| Operating and storage temperature range | – | -55 to +150 | °C |
Pinout:
| Pin Number | Description |
|---|---|
| 1 | Anode 1 |
| 2 | Cathode (Common) |
| 3 | Anode 2 |
Applications:
- Switching power supplies.
- DC-DC converters.
- Freewheeling diodes.
- Polarity protection circuits.
- Solar power systems.
- Battery charging systems.
- Automotive electronics.
- Power inverters.
Packages Included:
- 1x MBR6045 Schottky Diode 45V 60A TO247.
