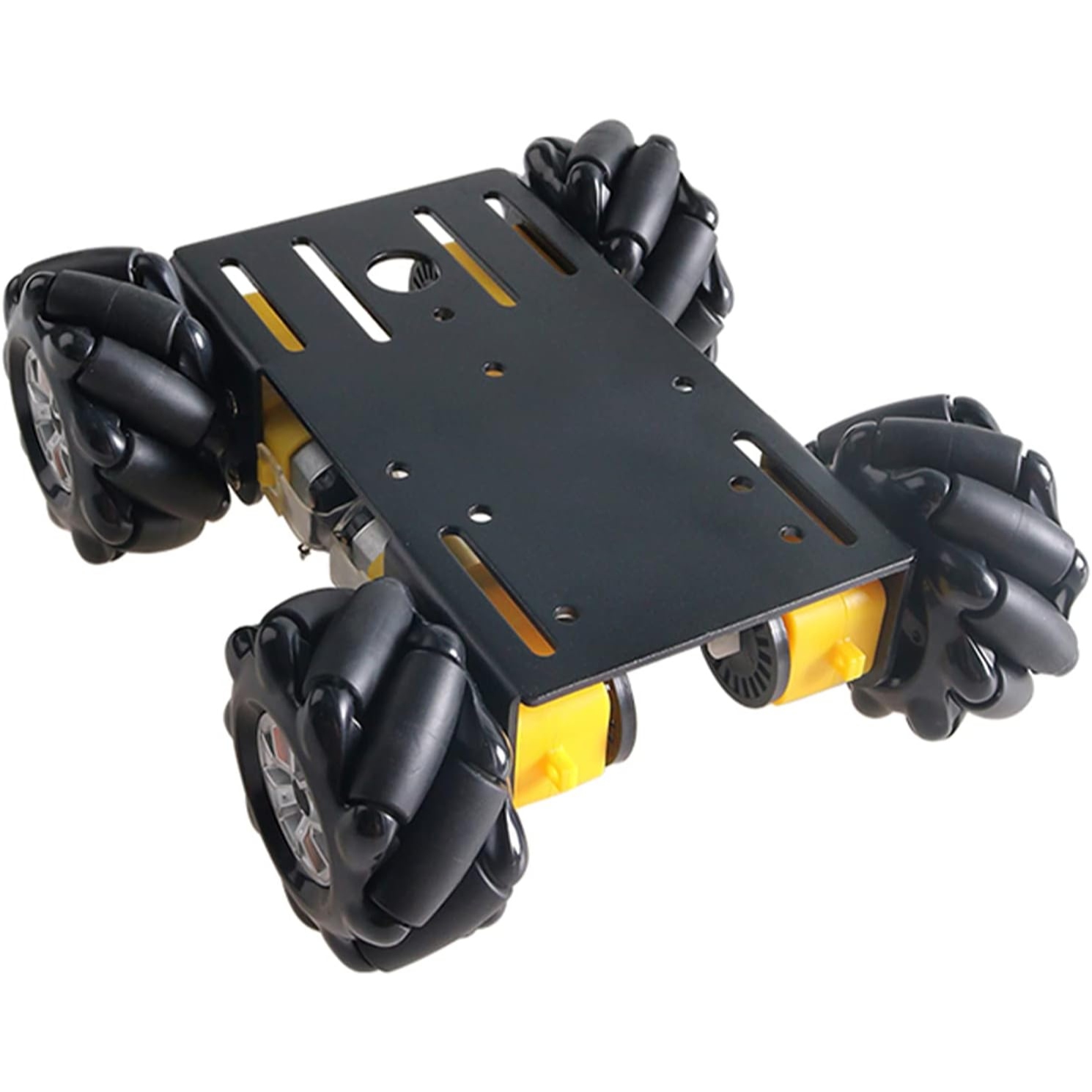

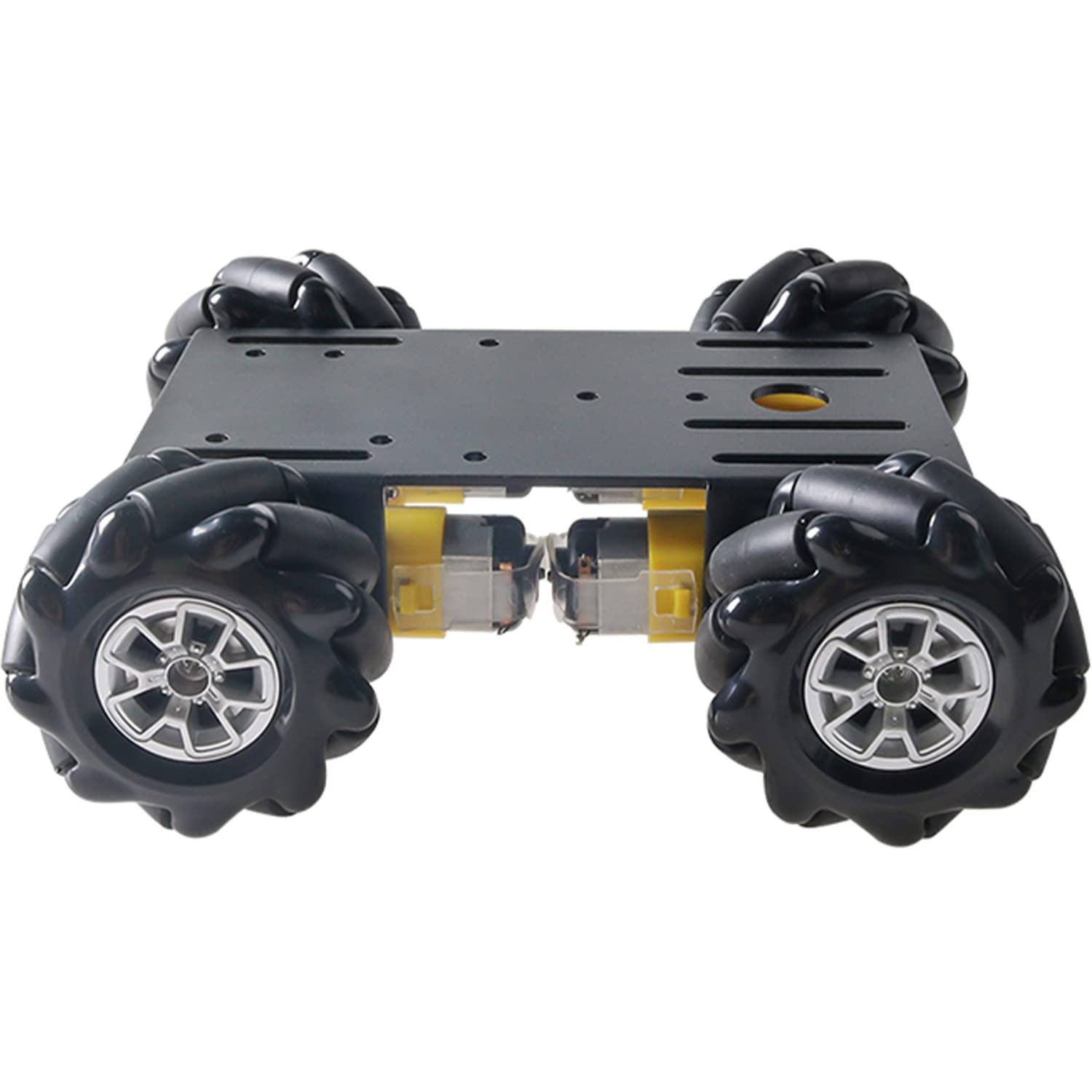

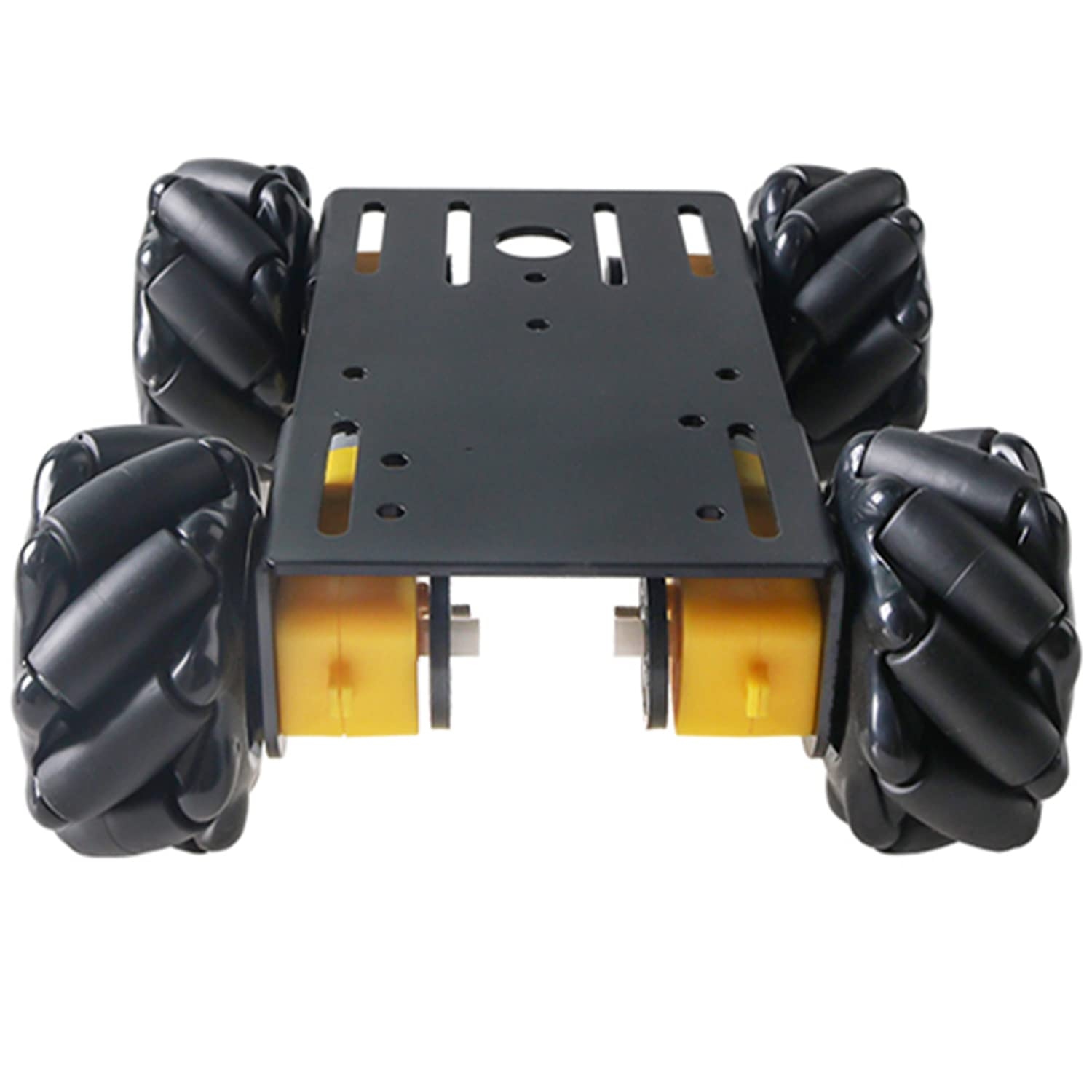

MC100 4WD Mecanum Wheel Car Chassis Full Kit with TT Motor
The MC100 4WD Mecanum Wheel Car Chassis is a versatile robotics platform designed for Arduino, Raspberry Pi, ESP32, STM32, and other microcontroller-based projects. Equipped with four omnidirectional mecanum wheels and four TT geared motors, the chassis can move forward, backward, sideways, diagonally, and rotate in place, making it ideal for advanced robotics and AI projects.
Features:
- 4WD omnidirectional robot chassis.
- Equipped with 4 × 60mm mecanum wheels.
- Includes 4 × TT geared DC motors.
- Supports sideways, diagonal, and rotational movement.
- Durable 2mm aluminum alloy construction.
- Sandblasted anodized surface finish.
- Multiple mounting holes for controllers and sensors.
Specifications:
| Parameter | Details |
|---|---|
| Product Type | 4WD Mecanum Wheel Robot Chassis Kit |
| Model | MC100 |
| Drive Type | 4 Wheel Drive |
| Wheel Type | Mecanum Omnidirectional Wheel |
| Number Of Wheels | 4 |

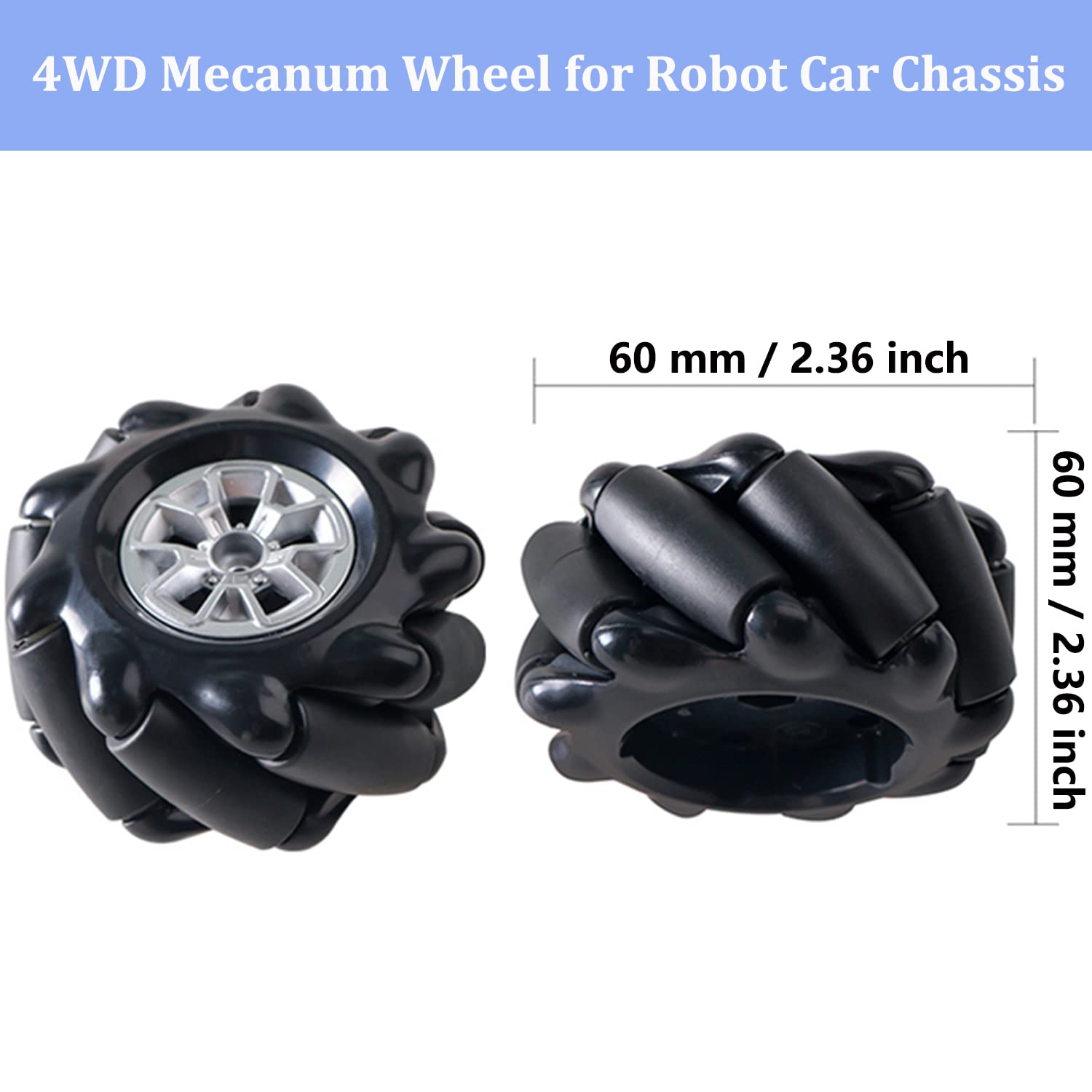

| Wheel Diameter | 60 mm |
| Wheel Thickness | 27 mm |
| Wheel Material | Plastic |

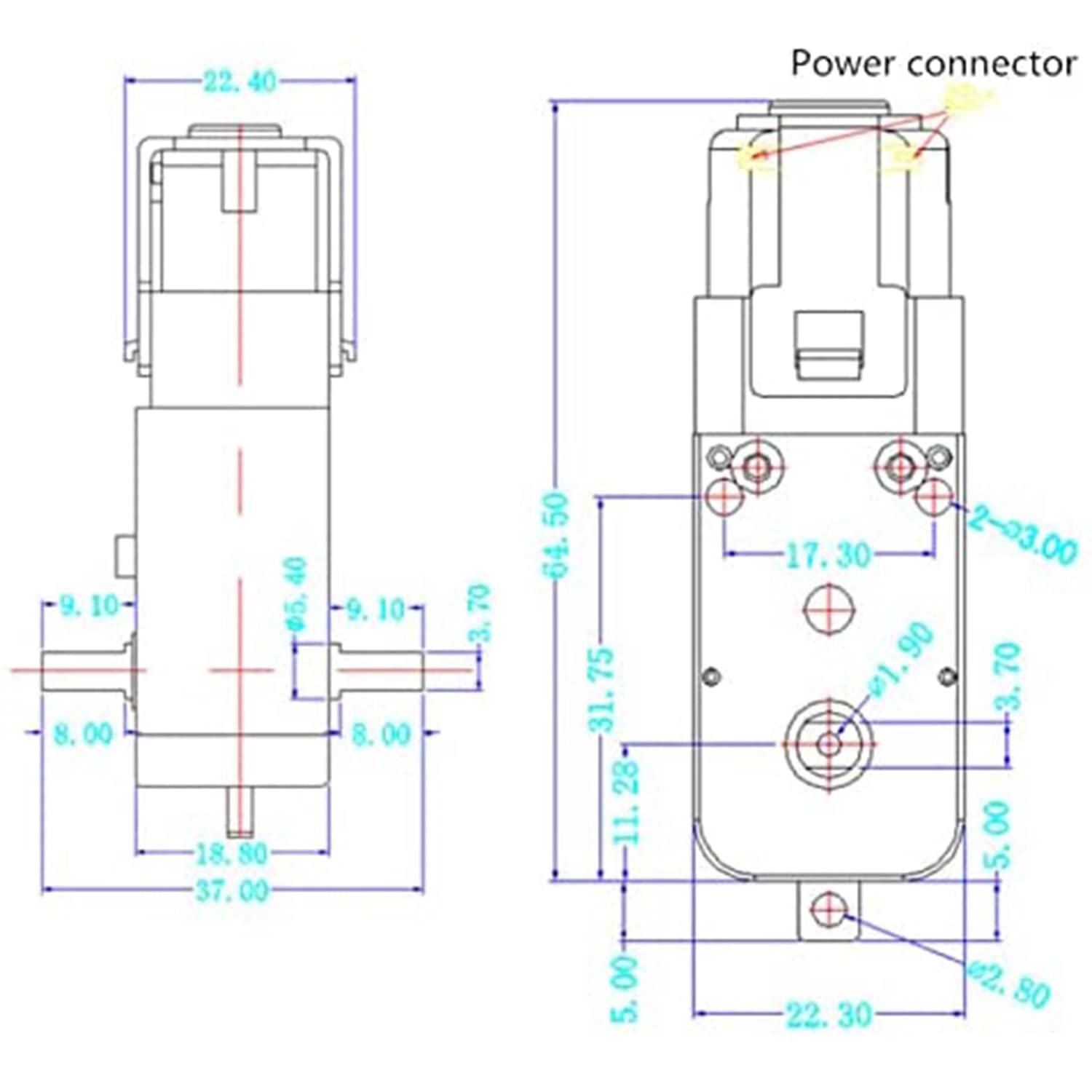

| Motor Type | TT DC Geared Motor |
| Number Of Motors | 4 |
| Motor Voltage | DC 3 V To 6 V |
| Recommended Motor Voltage | DC 6 V |
| Gear Ratio | 1:48 |
| Chassis Material | Aluminum Alloy |
| Chassis Thickness | 2 mm |
| Surface Finish | Sandblasted Anodized |

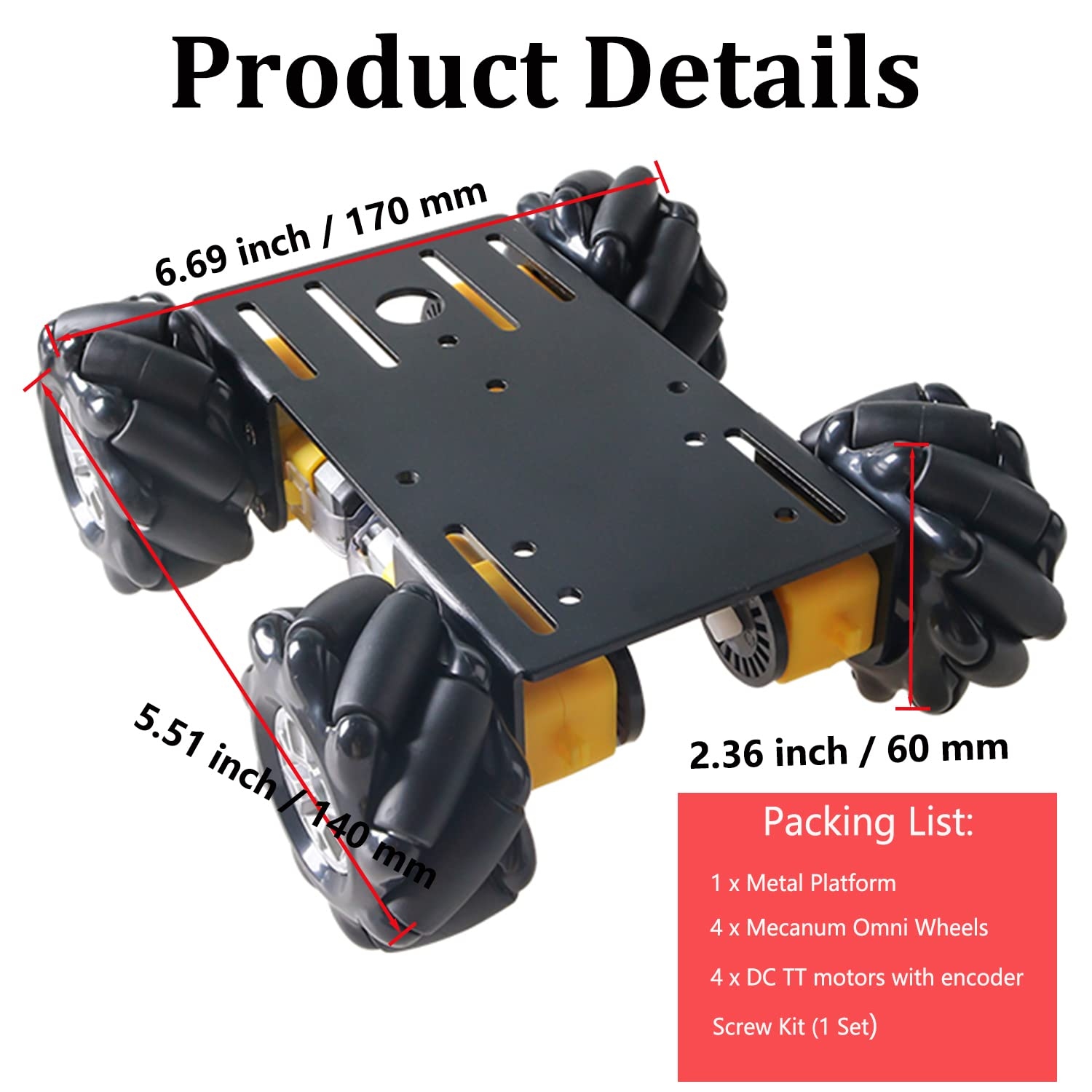

| Chassis Length | 140 mm |
| Chassis Width | 79 mm |
| Chassis Height | 37 mm |
| Chassis Weight | Approximately 380 g |
| Battery Holder | Double AA Battery Holder |
| Compatibility | Arduino, Raspberry Pi, ESP32, STM32, Micro:bit |
| Assembly Required | Yes |
| Color | Black |
Applications:
- Smart robot car projects.
- Omnidirectional mobile robots.
- Arduino robotics projects.
- Raspberry Pi robot platforms.
- AI and ROS learning.
- Obstacle avoidance robots.
- Line following robots.
- Wireless remote-control cars.
- STEM education.
- Robotics competitions.

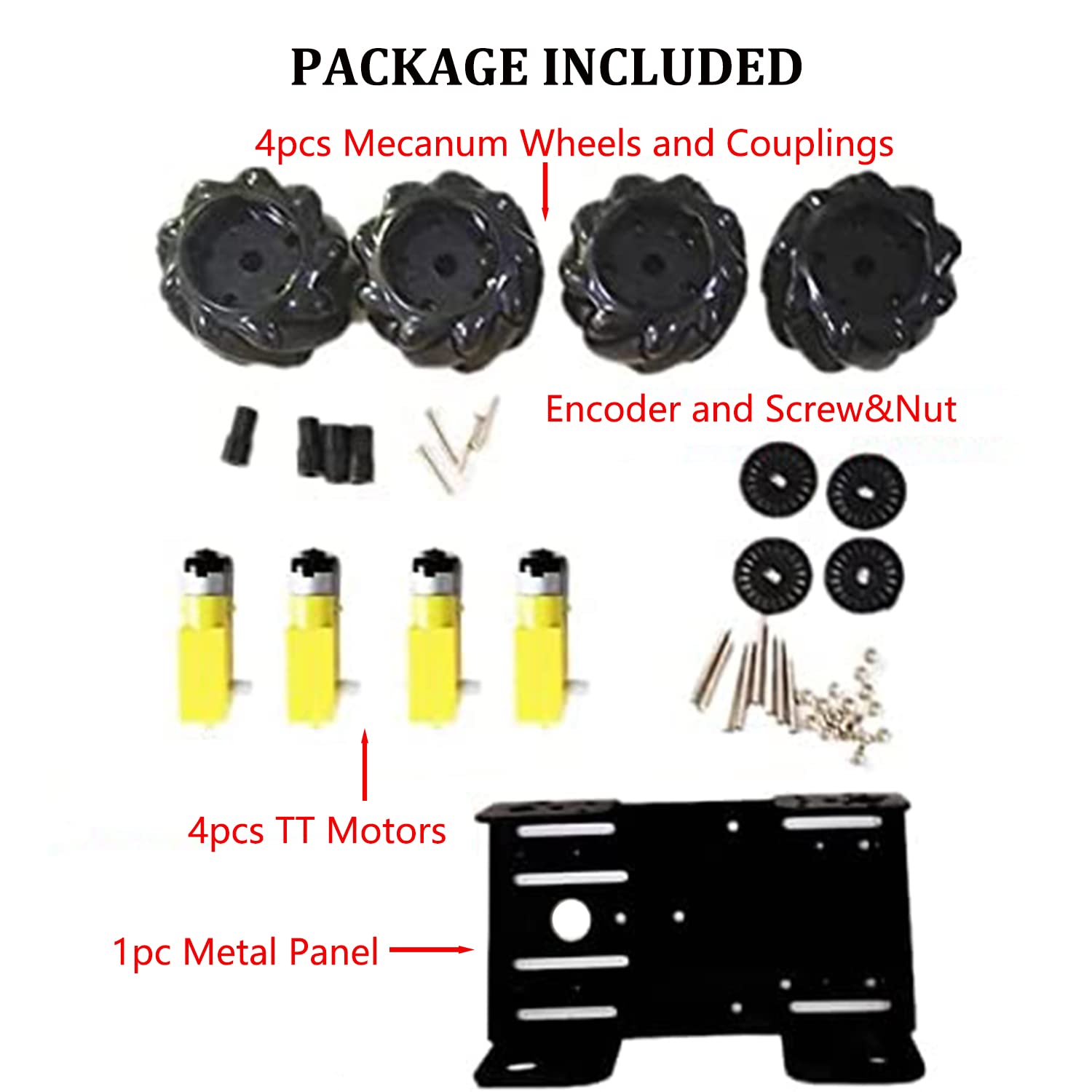

Package Include:
- 1 × MC100 Aluminum Chassis Plate
- 4 × 60mm Mecanum Wheels
- 4 × TT DC Gear Motors
- 4 × Motor Couplers
- 1 × Double AA Battery Holder
- Jumper Wires
- Mounting Screws and Accessories
