MC3403 Quad Low-Power Operational Amplifier IC DIP-14
MC3403 A low-cost, quad operational amplifier IC in a DIP-14 package. It operates from a single 3V-36V supply, features four internally-compensated amps.
75.00 EGP
In stockSKU 34963001393310
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast

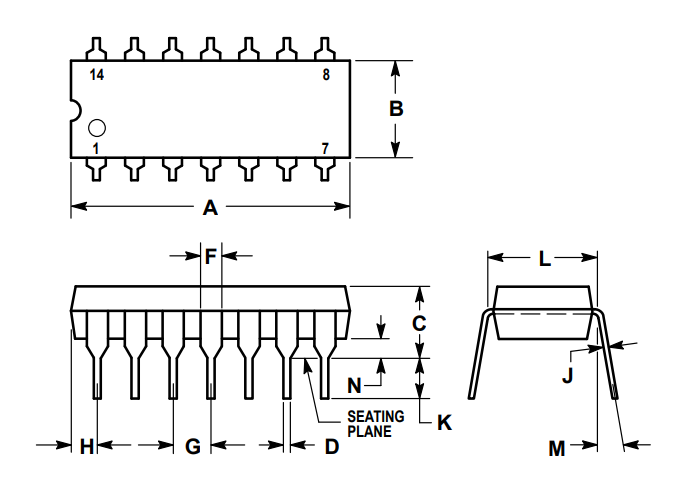

MC3403 Quad Low-Power Operational Amplifier IC DIP-14
The MC3403 is a monolithic integrated circuit that incorporates four independent, general-purpose operational amplifiers on a single silicon chip. It is engineered as a cost-effective solution for systems requiring multiple amplification stages, consolidating functionality to save board space and reduce component count. Its design emphasizes versatility and reliability for a broad range of analog circuit tasks, from basic amplification to signal conditioning and active filtering, making it a staple in both educational and industrial electronic design.
A primary design achievement of the MC3403 is its ability to operate seamlessly from a single-ended power supply, as low as 3.0 volts, or from traditional split (positive and negative) supplies. This flexibility is enabled by an input stage whose common-mode voltage range extends to the negative supply rail (ground in single-supply configurations). Consequently, the output can also swing close to the ground potential, eliminating the need for external biasing networks and simplifying circuit design in battery-powered or ground-referenced systems.
Internally, each amplifier is fully compensated for stable unity-gain operation, simplifying implementation without external capacitors. The output stage utilizes a Class AB configuration, which minimizes the crossover distortion typical of many early single-supply op-amps. Furthermore, the device includes integrated protection features such as output short-circuit protection and ESD diodes, enhancing its durability in real-world applications where faults or handling incidents may occur.
Features:
- Short Circuit Protected Outputs.
- Class AB Output Stage for Minimal Crossover Distortion.
- True Differential Input Stage.
- Single Supply Operation: 3.0 V to 36 V.
- Split Supply Operation: ±1.5 V to ±18 V.
- Low Input Bias Currents.
- Four Amplifiers Per Package.
- Internally Compensated.
- Industry Standard Pinouts.
- ESD Diodes Added for Increased Ruggedness.
Specifications:
| Characteristic | Symbol | Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Supply Voltage Range (Single): | VCC | – | 3.0 | – | 36 | V |
| Supply Voltage Range (Split): | VCC, VEE | – | ±1.5 | – | ±18 | V |
| Input Offset Voltage: | VIO | TA=25°C | – | 2.0 | 10 | mV |
| Input Bias Current: | IIB | TA=25°C | – | -200 | -500 | nA |
| Large Signal Voltage Gain: | AVOL | VO=±10V, RL=2.0kΩ | 20 | 200 | – | V/mV |
| Common Mode Rejection Ratio: | CMR | – | 70 | 90 | – | dB |
| Supply Current (all 4 amps): | ICC, IEE | VO=0, RL=∞ | – | 2.8 | 7.0 | mA |
| Output Voltage Swing: | VO | RL=10kΩ, VCC=±15V | ±12 | ±13.5 | – | V |
| Slew Rate: | SR | AV=1 | – | 0.6 | – | V/µs |
| Gain Bandwidth Product: | BW | AV=1 | – | 1.0 | – | MHz |
Applications:
- Voltage Reference Circuits.
- High Impedance Differential Amplifiers.
- Comparators with Hysteresis.
- Bi-Quad Active Filters.
- Multiple Feedback Bandpass Filters.
- Function / Waveform Generators.
- Transducer Amplifiers.
- DC Gain Blocks.
Package Contents:
- 1x MC3403 Quad Low-Power Operational Amplifier IC DIP-14
