MEAN WELL Power Supply MDR-20-24 24V 1A
The MEAN WELL MDR-20-24 is a highly efficient, ultra-slim 24W single-output industrial DIN rail power supply designed for space-constrained environments. Enclosed in a compact plastic case, it delivers a stable and regulated 24V DC output up to 1A. It features universal AC input with a full voltage range, alongside a built-in “DC OK” active signal for easy power status monitoring.
Features
- Universal AC input/Full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection

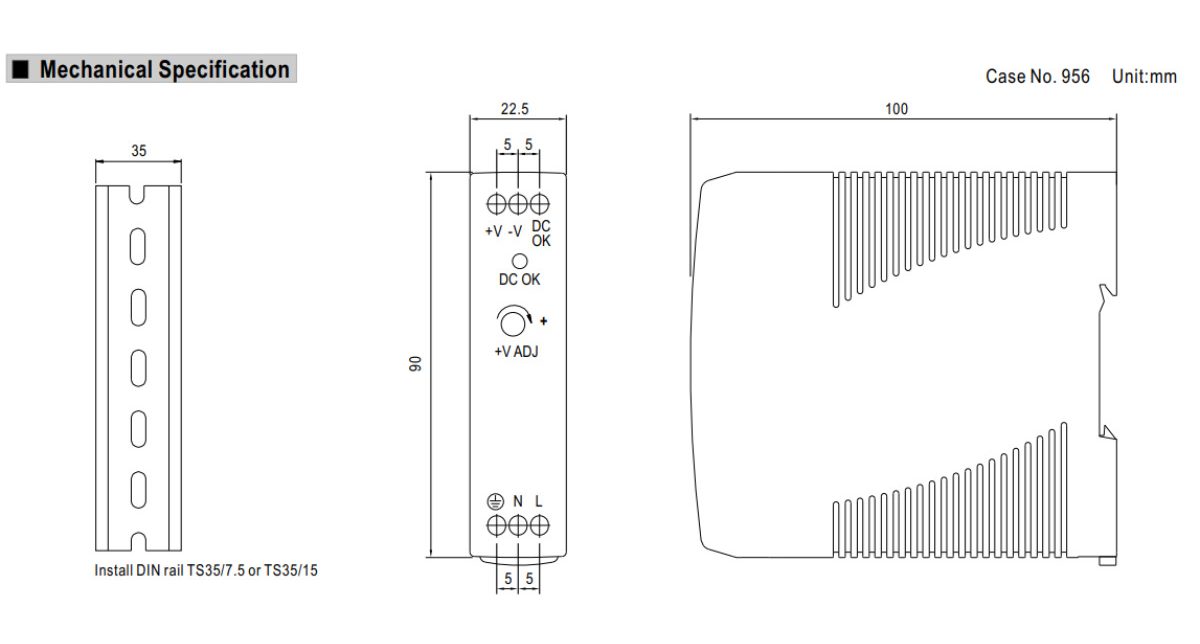

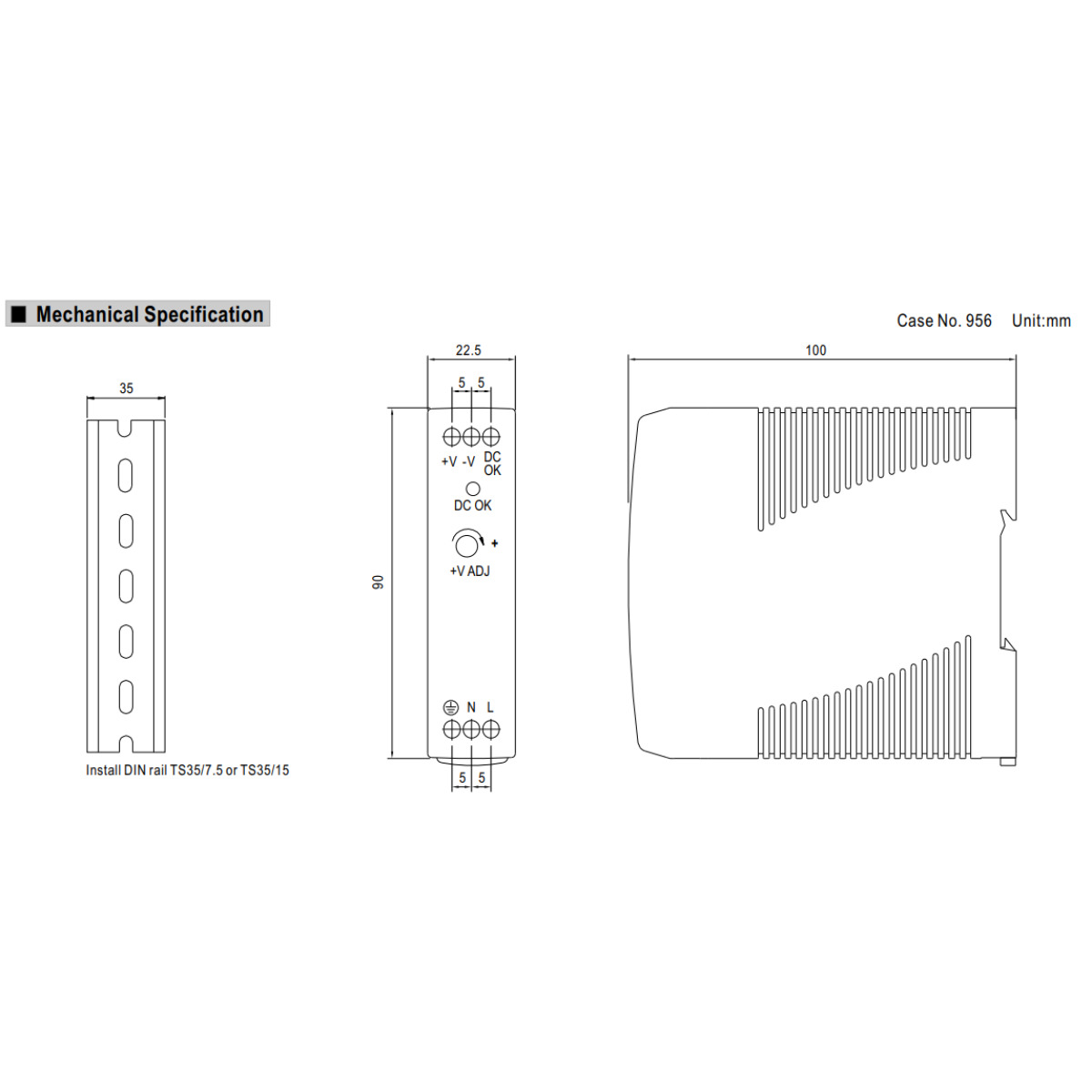

- Can be installed on DIN rail TS-35/7.5 or 15
- NEC class 2 / LPS compliant
- LED indicator for power on
- No load power consumption<0.75W
- 100% full load burn-in test
- Built in DC OK active signal
Specifications
| Specification | Value |
|---|---|
| Output Specifications | |
| DC Voltage | 24V |
| Rated Current | 1A |
| Current Range | 0 ~ 1A |
| Rated Power | 24W |
| Ripple & Noise (max.) | 150mVp-p |
| Voltage Adjustment Range | 21.6 ~ 26.4V |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±1.0% |
| Load Regulation | ±1.0% |
| Setup, Rise Time | 500ms, 30ms / 230VAC; 1000ms, 30ms / 115VAC (at full load) |
| Hold Up Time (typ.) | 50ms / 230VAC; 20ms / 115VAC (at full load) |
| Input Specifications | |
| Voltage Range | 85 ~ 264VAC ; 120 ~ 370VDC |
| Frequency Range | 47 ~ 63Hz |
| Efficiency (typ.) | 84% |
| AC Current (typ.) | 0.55A / 115VAC ; 0.35A / 230VAC |
| Inrush Current (typ.) | Cold Start: 20A / 115VAC ; 40A / 230VAC |
| Leakage Current | <1mA / 240VAC |
| Protection | |
| Overload | 105 ~ 160% rated output power Protection type: Constant current limiting, recovers automatically after fault condition is removed |
| Over Voltage | 27.6 ~ 32.4V Protection type: Shut down o/p voltage, re-power on to recover |
| Function & Signal | |
| DC OK Active Signal (max.) | 18 ~ 27V / 20mA |
| Environmental Specifications | |
| Working Temp. | -20 ~ +70°C (Refer to output load derating curve) |
| Working Humidity | 20 ~ 90% RH non-condensing |
| Storage Temp., Humidity | -40 ~ +85°C , 10 ~ 95% RH |
| Temp. Coefficient | ±0.03% / °C (0 ~ 50°C) |
| Vibration | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| Safety & EMC Standards | |
| Safety Standards | UL508, TUV EN60950-1 approved, NEC class 2 / LPS compliant |
| Withstand Voltage | I/P-O/P: 3KVAC ; I/P-FG: 1.5KVAC ; O/P-FG: 0.5KVAC |
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC |
| EMI Conduction & Radiation | Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B |
| Harmonic Current | Compliance to EN61000-3-2, -3 |
| EMS Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-1, EN61204-3, light industry level, criteria A |
Important Note
The output voltage can be adjusted between 21.6V and 26.4V DC. Check the connected device voltage requirement before adjusting the output. Full rated output is available under the operating conditions specified in the manufacturer datasheet. Output load must be reduced at high ambient temperatures and at low AC input voltages.
Safety Warning
Disconnect the mains power before installation or wiring. Verify Live, Neutral, and Protective Earth connections before powering the unit.This product contains exposed mains-voltage terminals and should be installed inside a suitable electrical enclosure by a qualified person.Do not touch the terminals while the power supply is energized.Maintain adequate ventilation around the unit and do not cover the ventilation openings.
Applications
- Industrial automation and control panels.
- Powering PLCs and low-power control networks.
- Security and access control systems.
- Telecommunication and IT equipment.
- Embedded electronics and testing setups.
Package Content
- 1 x MEAN WELL Power Supply MDR-20-24 24V 1A
