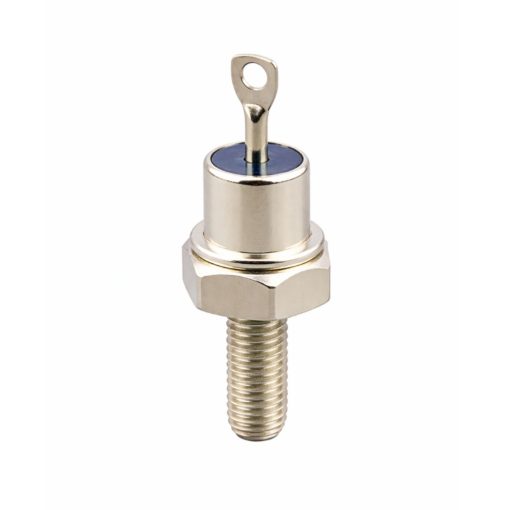

Metal Diode 10A Cathode Stud Mount
This high-power Metal diode is housed in a rugged metal case designed for high-reliability applications. Its stud-mount design allows for easy installation onto a heatsink or metal chassis, ensuring optimal thermal management.
Features
- High Current Capacity
- Superior Heat Dissipation
- Robust Construction
- High Surge Protection
Specifications
| Parameter | Value | Unit | |
|---|---|---|---|
| Average Forward Current (IF(AV)) | 10 | Amperes | |
| Polarity | Cathode to Stud | – | |
| Package Type | DO-4 (DO-203AA) | – | |
| Mounting Thread | M5 (Metric) | – | |
| Operating Temperature (Tj) | -65 to +175 | °C |
Applications
- Power Supplies
- Battery Chargers
- Motor Control
- Welding Equipment
- Inverters & Converters
Package Content
- 1 x Metal Diode 10A Cathode Stud Mount
