Metal Potentiometer 50K Ohm 3-Pin
Metal Potentiometer 50K Ohm 3-Pin Ideal for adjusting resistance in circuits. Durable design, smooth rotation, and precise control for volume, tone, or other settings
5.50 EGP
Buy NowMetal Potentiometer 50K Ohm 3-Pin
The Metal Potentiometer 50K Ohm 3-Pin is a high-quality, durable electronic component designed for precise resistance adjustment in various electronic circuits. With a resistance value of 50KΩ and a 3-pin configuration, this potentiometer is ideal for use in applications that require fine control over voltage, current, and signal levels. The metal housing offers improved strength and reliability, ensuring consistent performance even in demanding environments.
Features:
- B50K / 50K ohm Single Linear Taper Rotary Potentiometers.
- Knurled shaft Potentiometer is made of metal and carbon film.
- An adjustable potentiometer can open up many interesting user interfaces.
- With this rotary potentiometer just turn the dial and the resistance changes.
- Connect VCC to an outer pin, GND to the other, and the center pin will have a voltage that varies from 0 to VCC depending on the rotation of the pot.
- Top adjustment type and knurled shaft for easy operate in daily use time.
- Very stable and durable.
- Easy installation.
- Long life.
Specifications:
| Specification | Details |
|---|---|
| Type | Single Turn Rotary Potentiometer |
| Material | Metal, Electronic Parts |
| Resistance Rating | 50 kΩ |
| Tolerance Rating | ±20% |
| Rated Power | 0.3 W |
| Rotational Travel | 300° |
| Maximum Operating Temperature | +90°C |
| Minimum Operating Temperature | −10°C |
| Mounting Style | Panel Mount |
| Number of Turns | 3 |
| Termination Style | Pin |

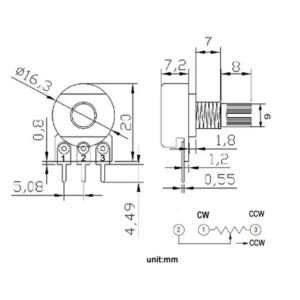

Dimensions:
Applications:
- Control electrical devices such as volume control.
- With center soft positioning and linear resistance value for diversified purposes.
- Suitable for multimedia, audio.
- Power amplifier.
- Electronic equipment, etc.
Package Included:
1x Metal Potentiometer 50K Ohm 3-Pin
