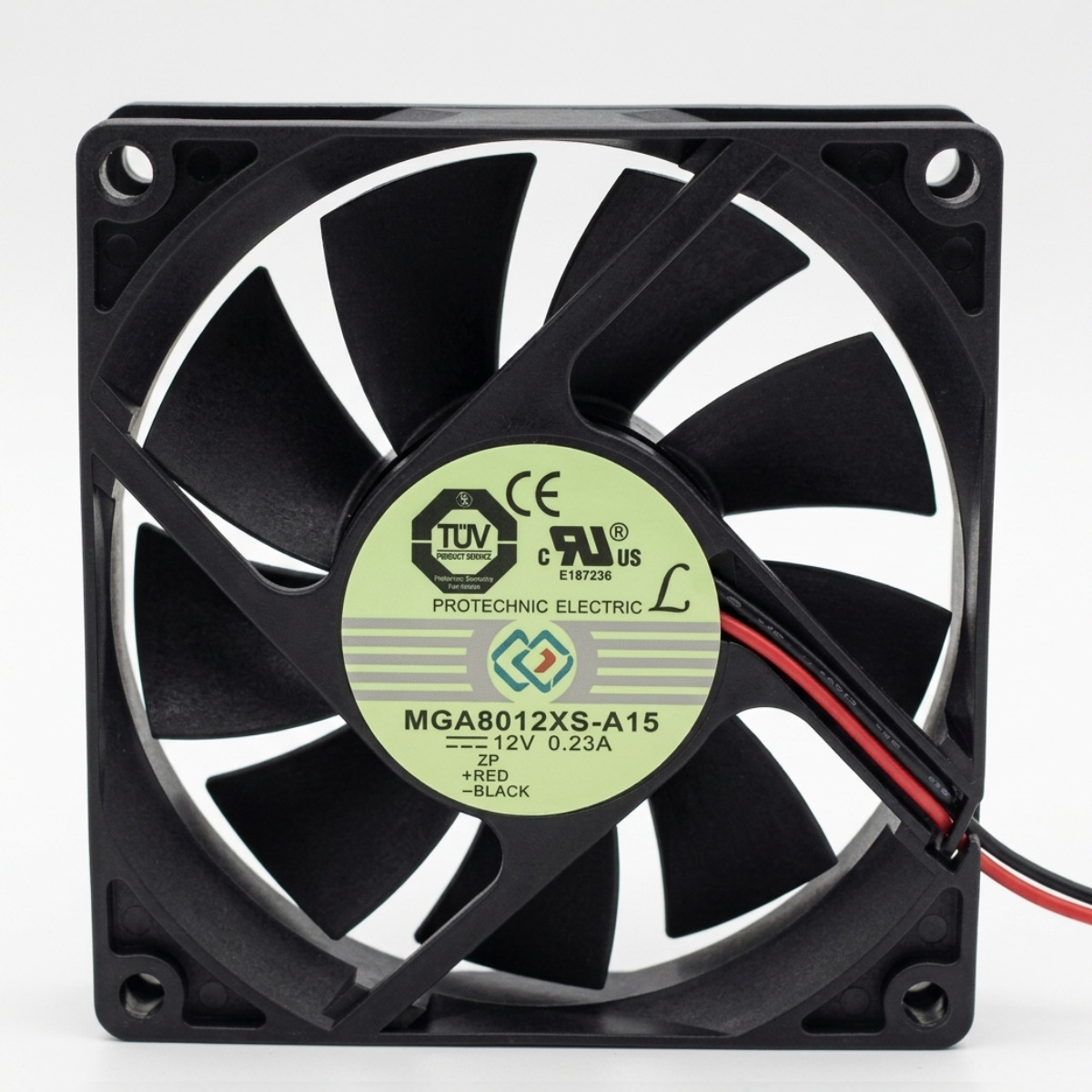

PROTECHNIC ELECTRIC MGA8012XS-A15 DC Fan 12V 0.23A 80x80x15mm (USED LIKE NEW)
The PROTECHNIC ELECTRIC MGA8012XS‑A15 is a compact DC axial cooling fan designed for reliable heat dissipation in electronic equipment. Operating at a rated 12V DC / 0.23A, it delivers dependable ventilation in a slim 80 × 80 × 15 mm package — ideal for space‑constrained enclosures.
USED – LIKE NEW
The fan features a simple 2‑lead wire connection with clearly marked polarity (+RED / −BLACK) for quick, error‑free installation, and a black plastic frame and impeller with four corner mounting holes for standard panel or chassis mounting.
Built by Protechnic Electric and carrying TÜV, CE and cULus safety approvals, this unit is a quality, certified component — an excellent value choice for replacements, repairs and DIY cooling projects.
Features
- ✔ Genuine Protechnic Electric axial cooling fan (model MGA8012XS‑A15)
- ✔ Rated 12V DC, 0.23A operation
- ✔ Slim 80 × 80 × 15 mm form factor – fits standard 80mm fan mounts
- ✔ Simple 2‑wire with color‑coded polarity: Red = Positive (+), Black = Negative (−)
- ✔ Safety‑certified construction: TÜV, CE and cULus recognized
- ✔ 4 corner mounting holes
Specifications
| Attribute | Detail |
|---|---|
| Brand | PROTECHNIC ELECTRIC |
| Model Number | MGA8012XS‑A15 |
| Fan Type | DC Axial Fan |
| Rated Voltage | 12V DC |
| Rated Current | 0.23A |
| Power Consumption | ≈ 2.76W (calculated: 12V × 0.23A) |
| Dimensions | 80 × 80 × 15 mm |
| Lead Wires | 2 leads – Red (+), Black (−) |
| Mounting | 4 × corner mounting holes |
| Frame / Impeller Color | Black |
| Weight | 55 g |
| Condition | Used – Like New |
Wiring / Connection
| Wire Color | Polarity |
|---|---|
| RED | + (Positive) |
| BLACK | − (Negative) |
Applications
General uses appropriate for an 80mm, 12V DC axial fan of this class:
- Ventilation and heat extraction in electronic enclosures & cabinets
- PC cases, servers and networking equipment cooling
- Power supplies, UPS units and battery cabinets
- Industrial control panels and machinery
- Audio/visual equipment, amplifiers and projectors
- 3D printers, laser engravers and DIY cooling projects
- Replacement fan for equipment using 80 × 80 × 15mm, 12V fans
Package Content
- 1 × PROTECHNIC ELECTRIC MGA8012XS-A15 DC Fan 12V 0.23A 80x80x15mm (USED LIKE NEW)
