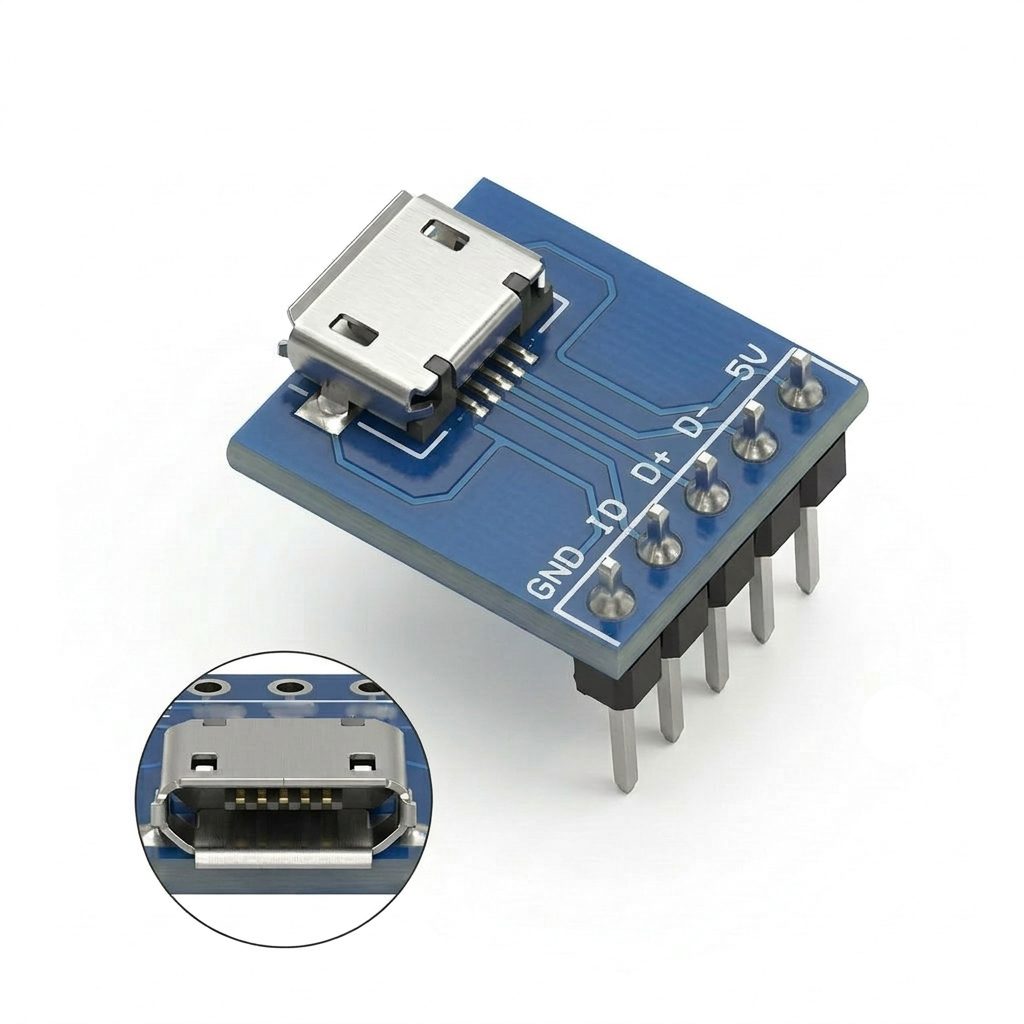

Micro USB Female Breakout Module
The Micro USB Female Breakout Module is a simple yet robust solution for adding a USB port to your custom electronics. This module features a high-quality Micro USB female connector securely mounted on a professional-grade PCB. All five pins of the USB interface—VCC, D-, D+, ID, and GND—are clearly labeled with standard 0.1″ (2.54mm) spacing. This makes it compatible with most prototyping boards, breadboards, and standard pin headers.
Features:
- Breadboard Compatible.
- Durable Design.
- Clear Labeling.
- Compact Footprint.
Specifications:
| Parameter | Details |
|---|---|
| Connector Type: | Micro USB Female |
| Number of Pins: | 5 Pins (VCC, D-, D+, ID, GND) |
| Pin Pitch: | 2.54 mm (0.1 inch) |
| Operating Voltage: | 5V DC |
| Board Thickness: | 1.4mm |
| Board Dimensions: | 15 x 14 mm |
Applications:
- Power Supply.
- Data Interfacing.
- Prototyping.
- Repairs.
Package Content:
- 1x Micro USB Female breakout Module
