Specifications
| Attribute | Value |
| Category | Connectors/USB Connectors |
| RoHS | |
| Current Rating – Power (Max) | 1A |
| Standard | USB 2.0 |
| Number of Ports | 1 |
| Mounting Style | Straight |
| Number of Contacts | 5 |
| Gender | Female |
| Operating Temperature Range | -30℃~+80℃ |
| Connector Type | Micro-B |

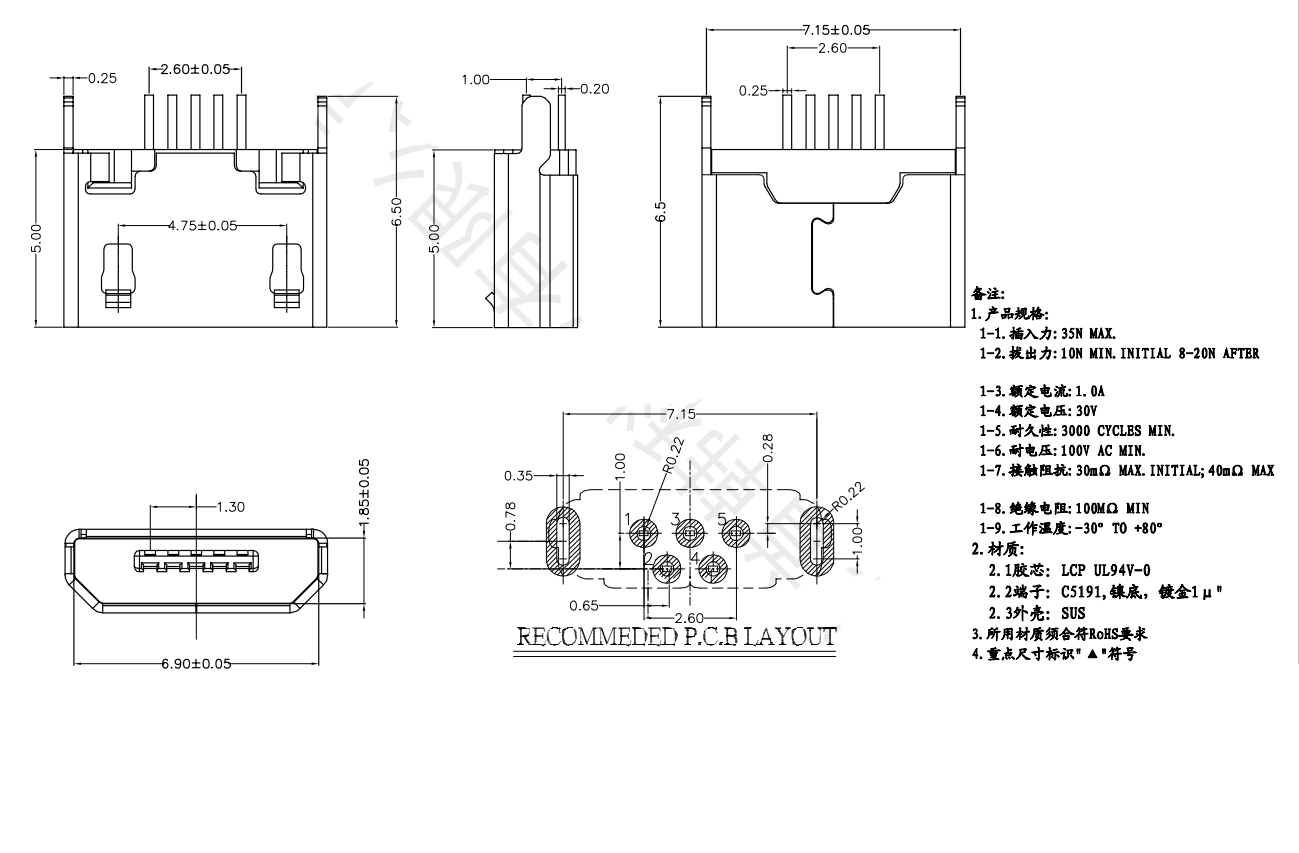

Datasheet
