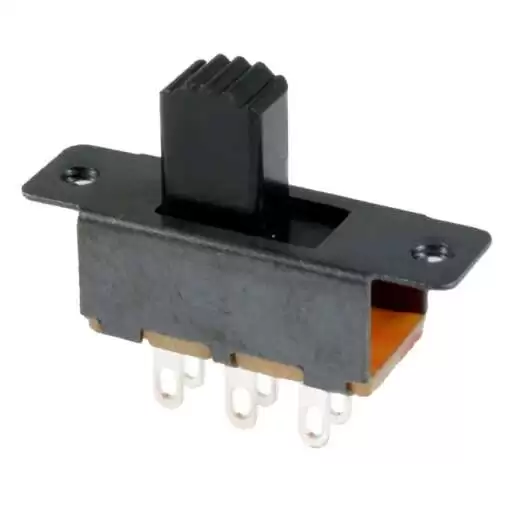

Miniature ON-OFF Slide Switch 6-Pin DPDT 2 Position

6 Pin DPDT Slide Switch

An electronic switch is an electronic component or device that can switch an electrical circuit, interrupting the current or diverting it from one conductor to another. Adding another pole to the SPDT creates a double-pole, double-throw (DPDT) switch. Two SPDT switches, can control two separate circuits but are always switched together by a single actuator. DPDTs should have six terminals.DPDT is a double pole double throw switch; this is equivalent to two SPDT switches. It routes two separate circuits, connecting each of two inputs to one of two outputs. The position of the switch determines the number of ways in which each of the two contacts can be routed. This is a multipurpose DPDT Slide Switch. It is medium-sized and perfect for mounting on boards and on enclosures, for which it comes with two holes on its body. Use this as an On/Off switch or just as a general-purpose switch. This switch can also be used to control the direction of a DC Motor.

Specifications:

• Material: Plastic and Metal
• Product Name: Slide Switch
• Contact Type: DPDT
• Voltage Max: 50V
• Current Max: 0.5A
• Position: 2
• Terminal Pins: 6
• Color: Black
• Approx Hole Diameter: 2.5mm
• Actuator Height: 7mm

Application:

• These are very small DPDT slide switches

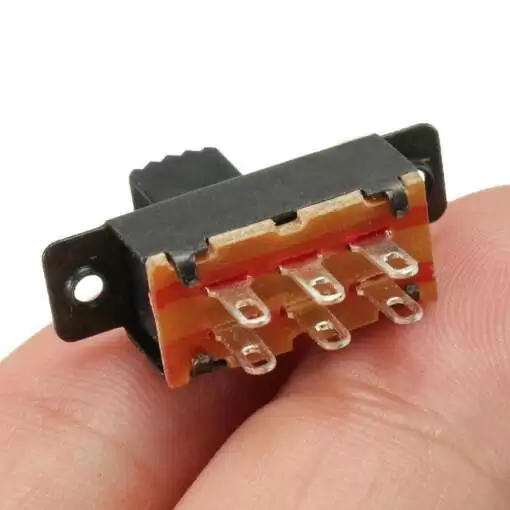

• There are holes for installation at each end of the switch
• They can be used for small power electronic projects
