MJ900 PNP Darlington Transistor TO-3

MJ900 PNP Darlington Transistor TO-3

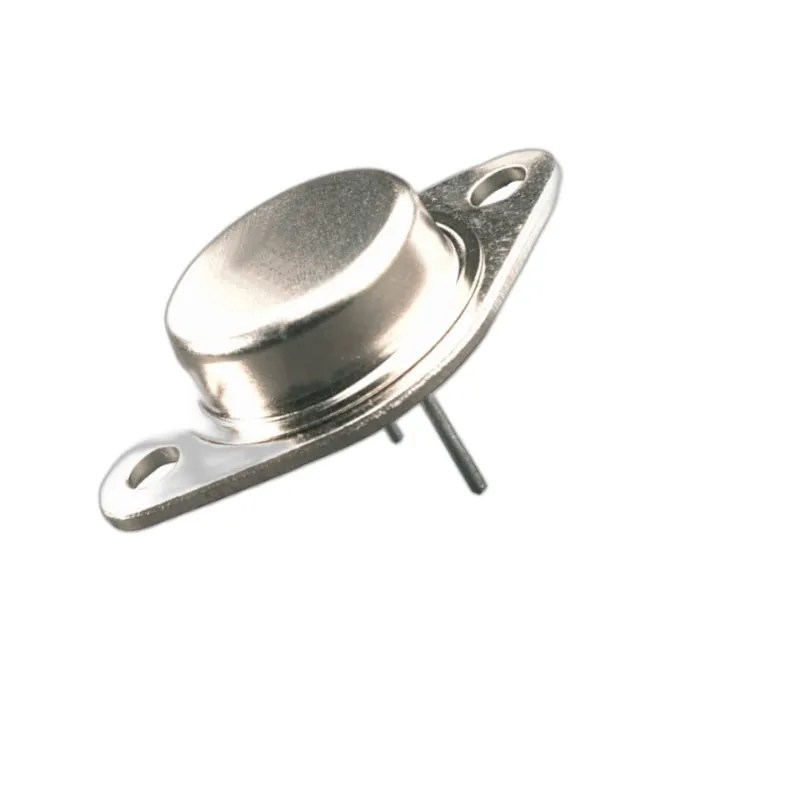

The MJ900 PNP Darlington Transistor TO‑3 is a high‑power bipolar transistor designed for use in power linear and switching applications where robust current handling and high gain are required. It combines two PNP transistor stages in a monolithic Darlington configuration to deliver high current amplification with a minimal base drive requirement. The TO‑3 metal case provides excellent heat dissipation and mechanical stability, making the MJ900 suitable for demanding power circuits and industrial environments.

Features:

• PNP Darlington configuration for very high current gain.
• Minimum hFE = 1000 at Ic = -3A.
• Low collector saturation voltage.
• High collector current capability up to -8A.
• Excellent power dissipation of 90W.
• Rugged TO-3 metal package for better heat transfer.
• Designed for complementary amplifier output stages.

Specifications:

Pin Configuration:

Applications:

• Complementary audio power amplifiers.
• Linear voltage regulators.
• General purpose high-power amplification.
• Output stage in push-pull amplifier circuits.
• Industrial control systems.

Package Include:

1x MJ900 PNP Darlington Transistor TO-3

Datasheet:

MJ900
