MKS OSC V1 Stepper Motor Pulse Generator Controller Module With Manual Control
MKS OSC V1 Manual stepper motor pulse generator module with adjustable speed, direction control, PWM/Pulse output, and 8VDC–24VDC operating voltage for testing and driving external stepper motor drivers.
185.00 EGP
Buy NowMKS OSC V1 Stepper Motor Pulse Generator Controller Module With Manual Control

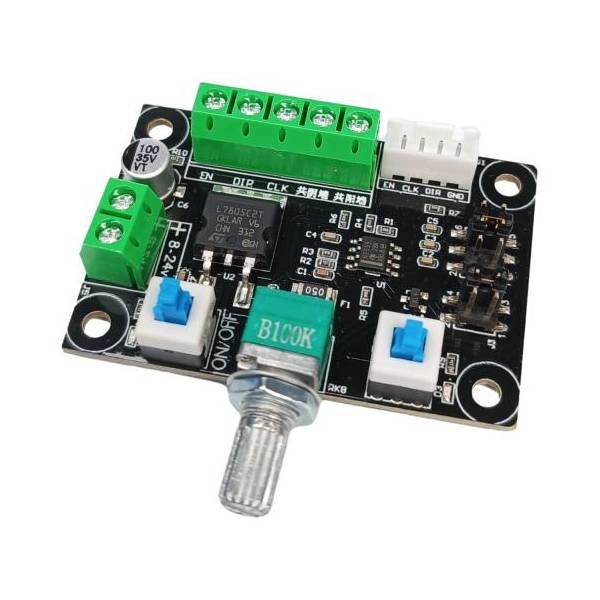

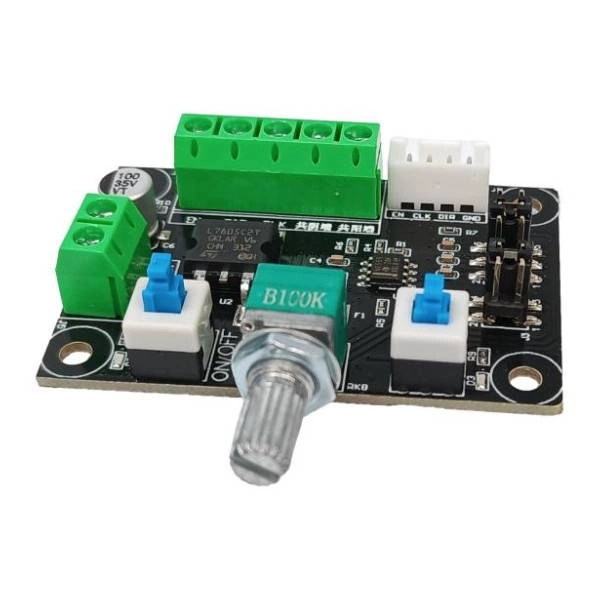

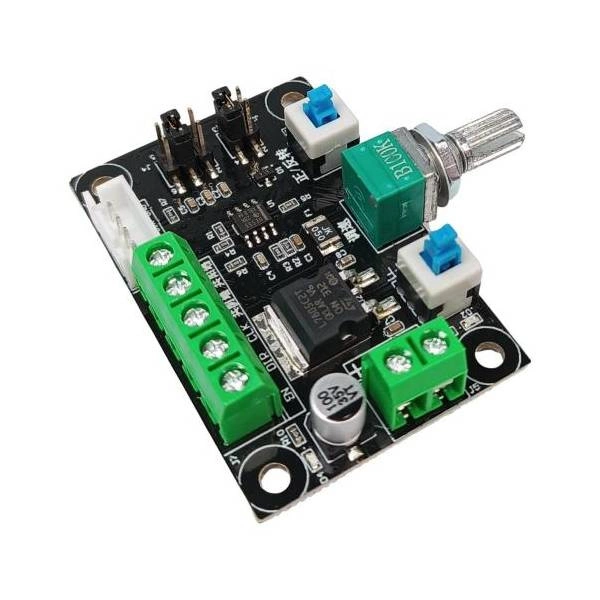

The MKS OSC V1 Stepper Motor Pulse Generator Controller Module With Manual Control is a compact manual pulse signal generator designed for testing, commissioning, and controlling stepper motor driver modules without requiring a microcontroller, CNC controller, or computer. It generates adjustable PWM or pulse signals that can be supplied directly to compatible stepper motor drivers, allowing users to manually adjust motor speed and rotation direction.
Features:
- Generates PWM or pulse control signals for stepper motor drivers.
- Manual speed adjustment using an onboard potentiometer.
- Push-button control for motor enable and disable.
- Push-button control for clockwise and counterclockwise rotation.

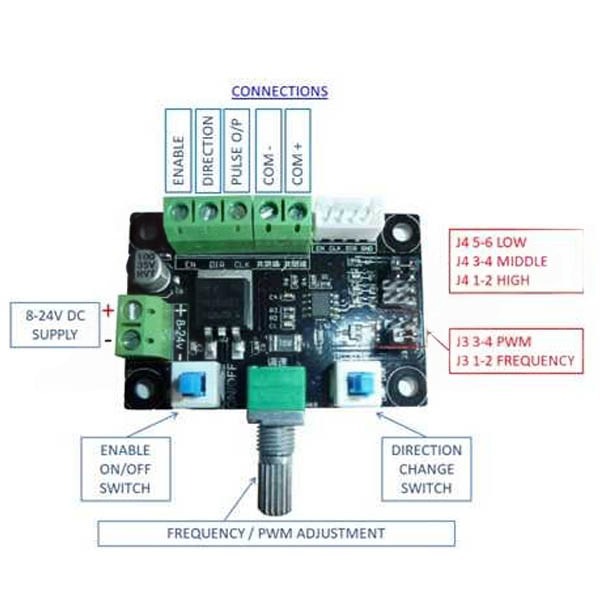

- Three selectable pulse frequency ranges via jumpers.
- Operates from an 8VDC to 24VDC power supply.
- Compatible with most STEP/DIR stepper motor drivers.
Specifications:
| Parameter | Value |
|---|---|
| Module Model | MKS OSC V1. |
| Module Type | Stepper Motor Pulse Generator. |
| Operating Voltage | 8VDC–24VDC. |
| Signal Output | PWM, Pulse. |
| Motor Direction | Clockwise, Counterclockwise. |
| Speed Control | Onboard Potentiometer. |

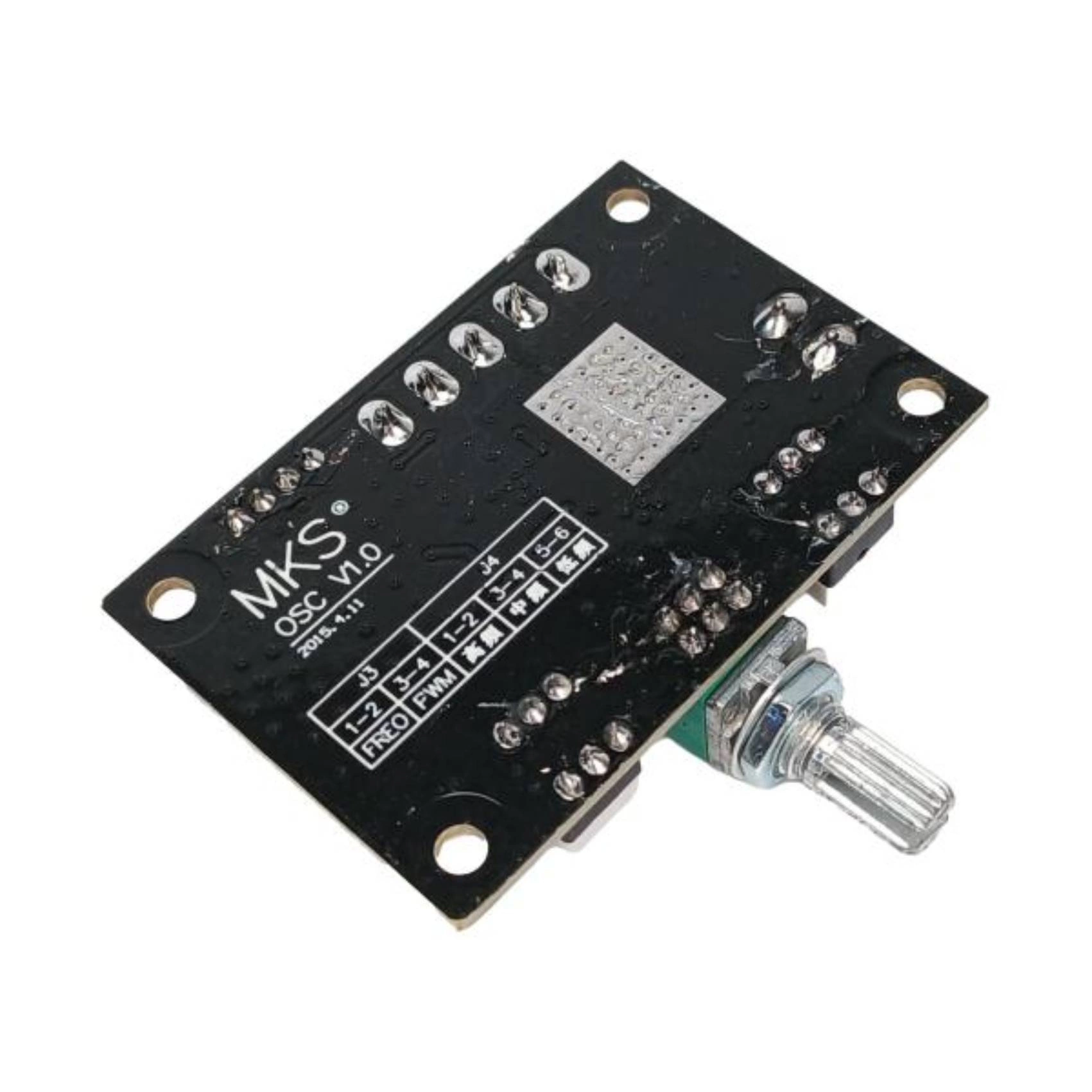

| Frequency Selection | Jumper Selectable (3 Ranges). |
| High Frequency Range | 5.4kHz–160kHz. |
| Medium Frequency Range | 540Hz–16.6kHz. |
| Low Frequency Range | 80Hz–2.4kHz. |
| Control Interface | Enable Button, Direction Button, Potentiometer. |
| Indicators | Power LED, Enable LED, Direction LED. |
| Board Dimensions | 58×38.6mm. |

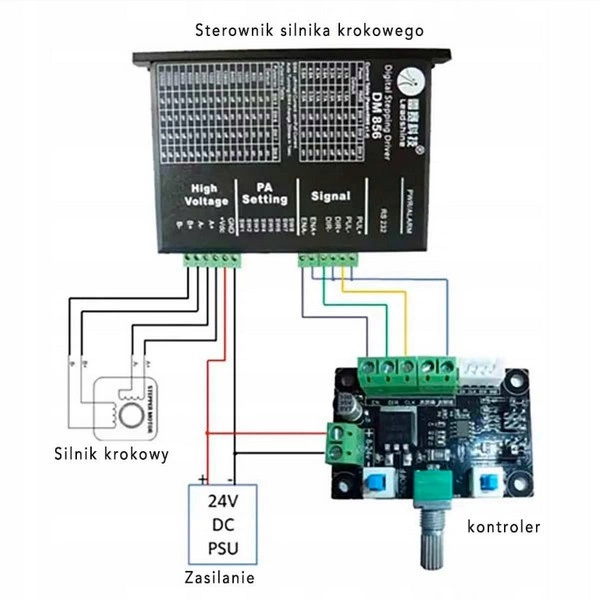

Configuration:
Applications:
- Stepper motor driver testing.
- CNC machine commissioning.
- Motion control system debugging.
- Automation equipment testing.
- Laboratory demonstrations.
- Robotics projects.
- Educational training.
- DIY CNC projects.
- Stepper motor evaluation.
- Production equipment maintenance.
Package Include:
1x MKS OSC V1 Stepper Motor Pulse Generator Controller Module With Manual Control.
