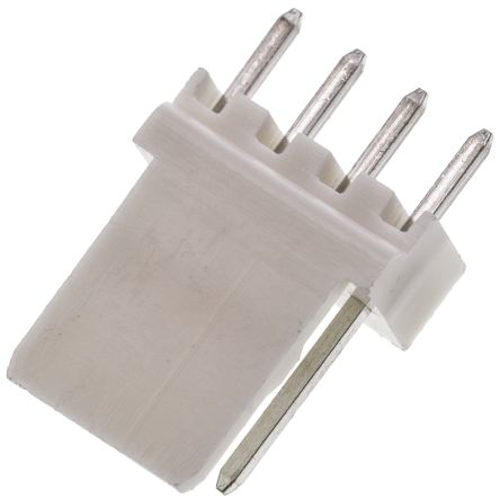

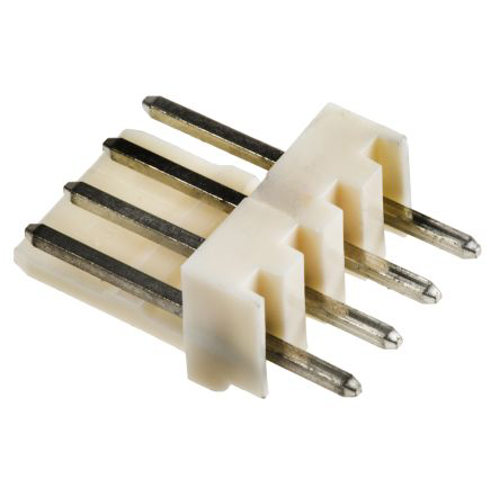

MOLEX 22-04-1041 Pin Header Vertical 2.5mm 1 Rows, 4 Contacts PCB TH
2.5mm pitch vertical PCB pin header, 1 row 4 contacts, through-hole, tin-plated brass, nylon housing, friction-ramp locking, for reliable wire-to-board use.
10.00 EGP
Buy NowMOLEX 22-04-1041 Pin Header Vertical 2.5mm 1 Rows, 4 Contacts PCB TH
The 22-04-1041 is a vertical PCB pin header designed for wire-to-board electrical connections using a compact 2.50mm contact pitch. It provides four male contacts arranged in a single row, making it suitable for compact PCB layouts where a secure and reliable connector interface is required.
Features:
- 4-position PCB pin header.
- 1 row with 4 contacts.
- 2.50mm contact pitch.
- Vertical straight orientation.
- Through-hole PCB mounting.
- Solder termination.
- Male pin contacts.
Specifications:
| Parameter | Value |
|---|---|
| Connector Type | PCB Pin Header |
| Model Number | 22-04-1041 |
| Product Family | PCB Headers |
| Connector System | Wire-to-Board |
| Number of Contacts | 4 |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Pitch | 2.50mm |
| Mating Interface Pitch | 2.50mm |
| Termination Interface Pitch | 2.50mm |
| Orientation | Vertical |
| Mounting Type | Through Hole |
| Termination Type | Solder |
| Contact Gender | Male |
| Contact Material | Brass. |
| Mating Contact Plating | Tin |
| Termination Plating | Tin |
| Housing Material | Nylon |
| Housing Color | Natural |
| Shroud Type | Partial |
| Locking Feature | Friction Ramp / Lock to Mating Part |
| PC Tail Length | 3.40mm |
| Recommended PCB Thickness | 1.60mm |
| Maximum Current Per Contact | 3A |
| Maximum Voltage | 250V |
| Flammability Rating | UL 94 V-0 |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Maximum Mating Cycles | 30 |
Applications:
- Wire-to-board connections.
- PCB interconnection.
- Electronic control boards.
- Industrial electronic equipment.
- Automotive and vehicle electronics.
- Printers.
- PC monitors.
- Data communication equipment.
- Consumer electronics.
- Embedded electronic systems.
- Signal connections.
- Control panels.
- Electronic instruments.
- PCB assemblies.
- Cable-to-PCB connections.
Package Include:
1x MOLEX 22-04-1041 Pin Header Vertical 2.5mm 1 Rows, 4 Contacts PCB TH.
