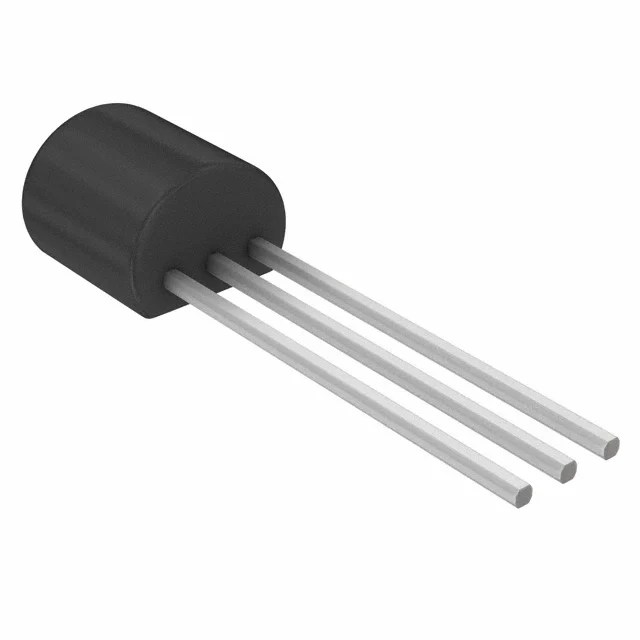

MPSA45 NPN High Voltage Bipolar Transistor
MPSA45 NPN High Voltage Bipolar Transistor, TO-92 package, designed for reliable high-voltage switching and amplification applications
2.50 EGP
In stockSKU 3496300141401
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
MPSA45 NPN High Voltage Bipolar Transistor
The MPSA45 NPN High Voltage Bipolar Transistor is a silicon-based high-voltage transistor designed to handle demanding switching and amplification applications. Its robust design enables it to operate with a collector-emitter voltage of up to 350V and a collector-base voltage of 400V, making it suitable for circuits requiring reliable high-voltage performance. The transistor is optimized for low leakage currents and high gain, ensuring stable and efficient operation in a wide range of electronic designs.
Features:
- NPN high-voltage transistor suitable for switching and amplification.
- Collector-emitter voltage: 350V.
- Collector-base voltage: 400V.
- Low leakage current and high current gain.
- TO-92 package with through-hole mounting.
- Wide operating temperature range: -65°C to +150°C.
- Low saturation voltage ensuring efficient operation.
Specifications:
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage | 350VDC |
| Collector-Base Voltage | 400VDC |
| Emitter-Base Voltage | 5VDC |
| Collector Current – Continuous | 300mADC |
| Total Device Dissipation @ TA=25°C | 625mW |
| Derate above 25°C (Ambient) | 5mW/°C |
| Total Device Dissipation @ TC=25°C | 1.5W |
| Derate above 25°C (Case) | 12mW/°C |
| Operating and Storage Temperature Range | -55°Cto+150°C |
| Thermal Resistance, Junction to Ambient | 200°C/W |
| Thermal Resistance, Junction to Case | 83.3°C/W |
| DC Current Gain (IC=10mADC, VCE=10VDC) | 50(min) |
| Collector-Emitter Saturation Voltage (IC=50mADC, IB=5mADC) | 0.5VDC(max) |
| Base-Emitter Saturation Voltage (IC=50mADC, IB=5mADC) | 1.2VDC(max) |
| Current-Gain Bandwidth Product (IC=10mADC, VCE=20VDC, f=100MHz) | 50MHz(min) |
| Collector-Base Capacitance (VCB=20VDC, f=1MHz) | 7pF(max) |
Pin Configuration:
1) Emitter
2) Base
3) Collector
Applications:
- High-voltage switching in power conversion systems.
- Signal amplification in audio and processing circuits.
- Deflection systems in displays and CRT monitors.
- Regulators and stabilizers for high-voltage needs.
- Relay and solenoid drivers in control systems.
- Interfaces in medical devices with high voltages.
- Sensor amplification in automotive electronics.
Package Include:
1x MPSA45 NPN High Voltage Bipolar Transistor.
